6-2. The Mounting Surface
The base plate of the electronics module has a smooth surface to enhance thermal conduction
away from the electronics. Mounting the base plate flush with another surface will enhance
thermal dissipation (assuming a mount surface with a temperature below 60
o
C). Base plate
dimensions and mounting hole spacing are shown in Figure 6.

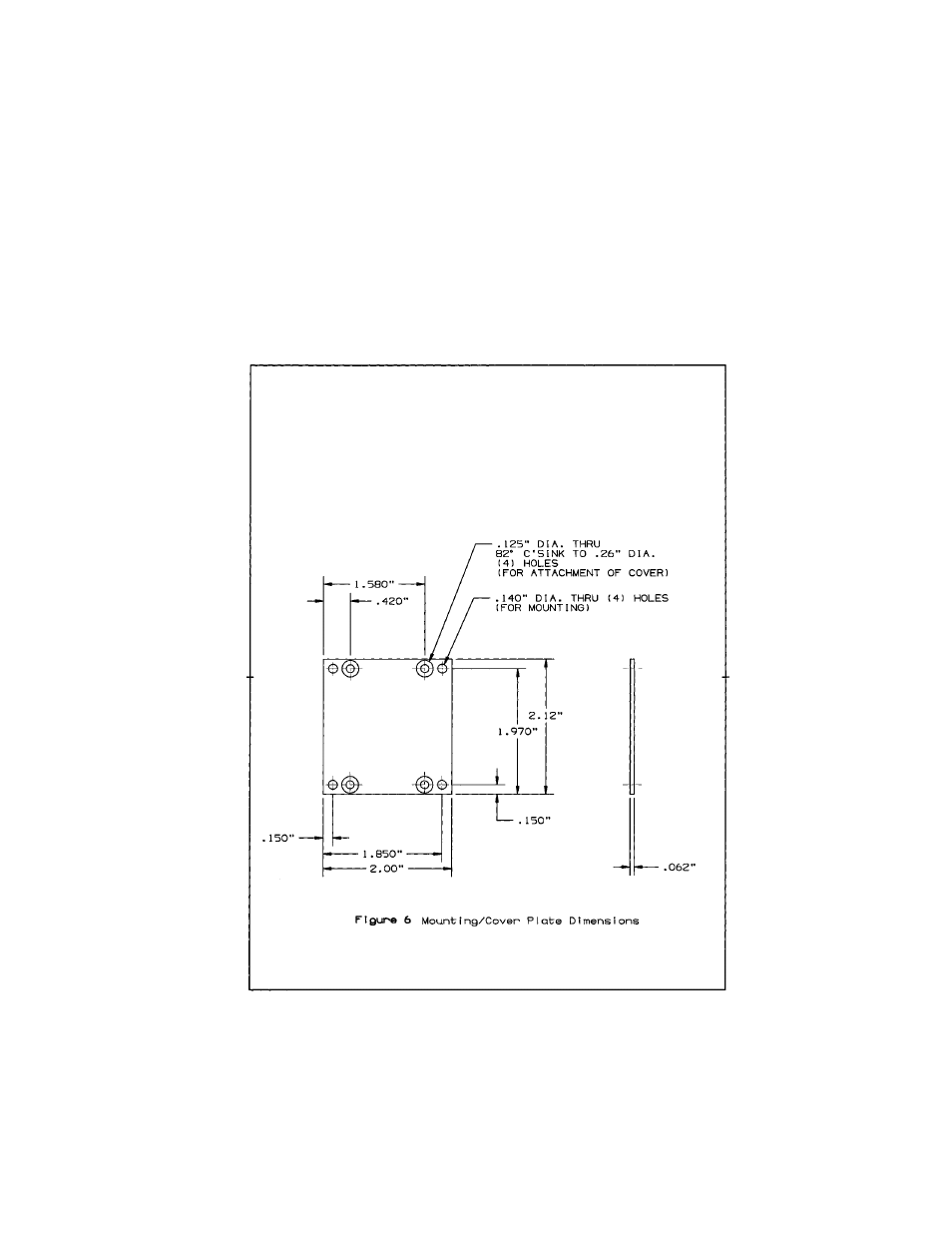

Figure 6 Mounting/Cover Plate Dimensions
