PART 3 - FRONT PANEL CONTROLS

The digiVIT can easily be set up using the front panel controls.

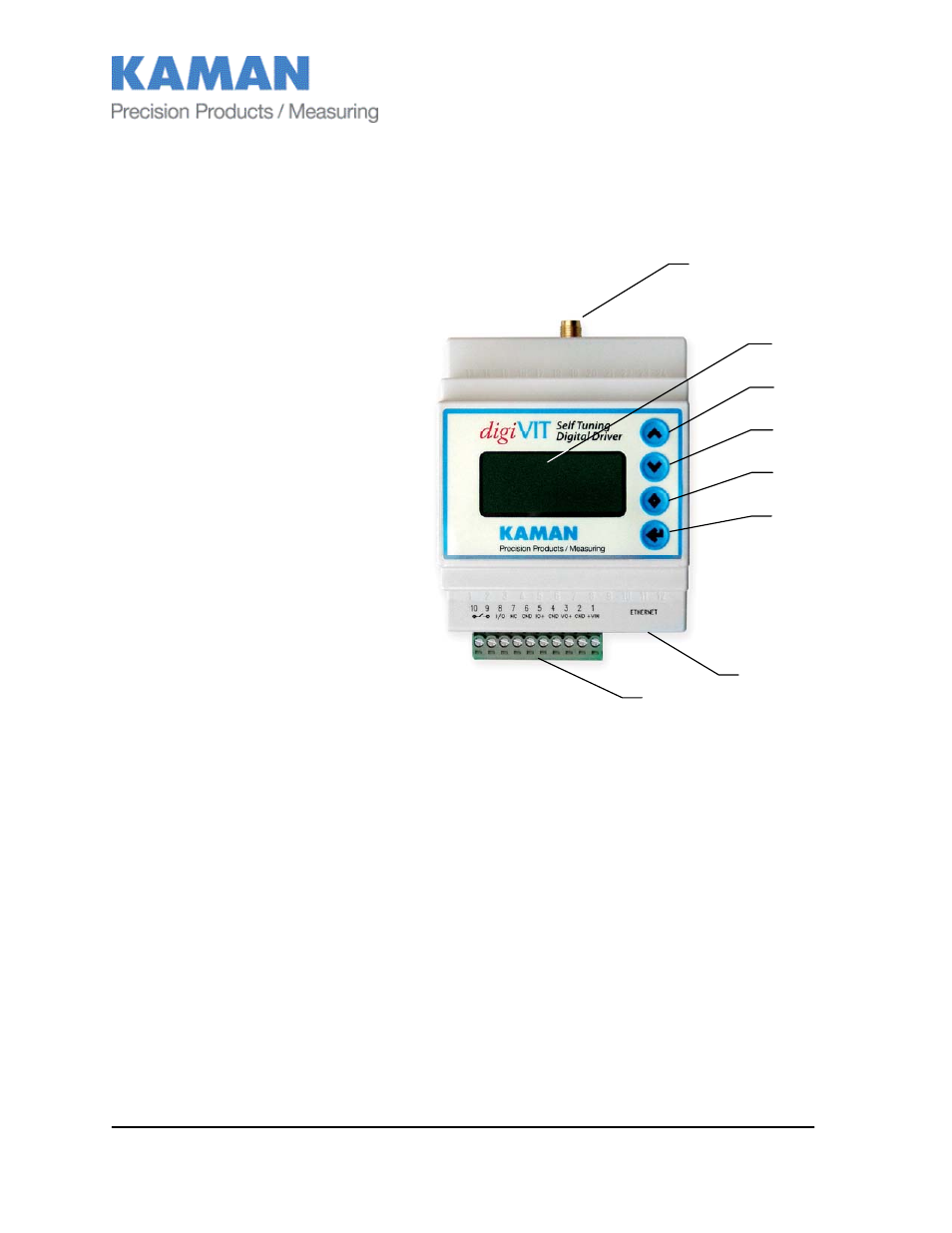

Figure 1 Front Panel Controls

Note: Press the Escape pushbutton (#5 in the figure above) momentarily to return to the
previous menu tree branch. Press and hold the Escape pushbutton to return to the normal run
mode.

2

3

4

5

6

1. Sensor connection (SMA)

2. Digital display

3. Scroll up pushbutton

4. Scroll down pushbutton

5. Escape pushbutton

6. Enter pushbutton

7. Ethernet connection (RJ45)

8. I/O screw terminals
