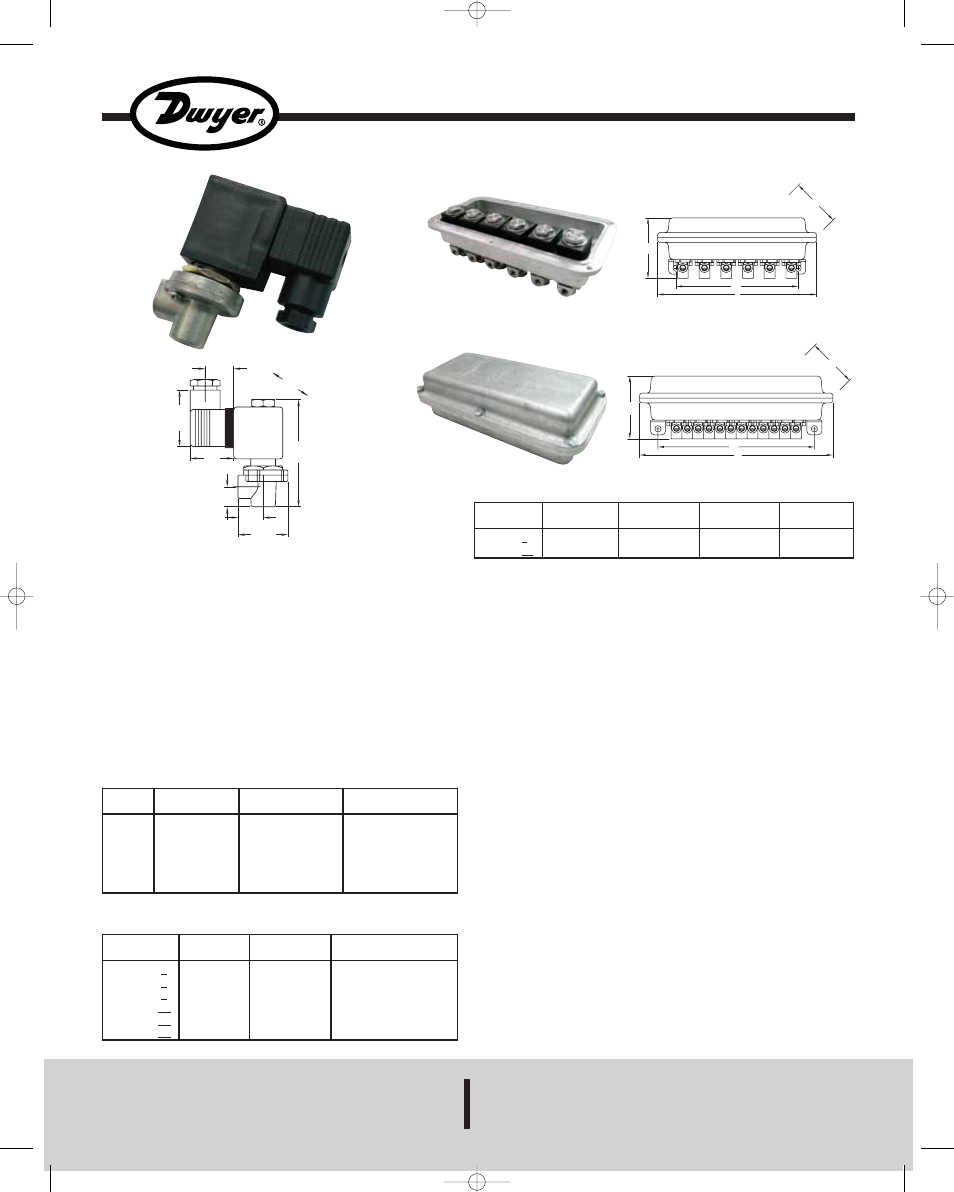

Series RSV (Remote Solenoid Valve) and Series SVE (Solenoid Valve Enclosure)
Specifications - Installation and Operating Instructions
Bulletin V-15
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000 www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A. Fax: 219/872-9057 e-mail: [email protected]
The Series RSV Pilot Solenoid Valve is used to operate the Series
RDCV remote type diaphragm valve. Series RDCV does not include an in-
tegral solenoid and needs to be activated remotely. The RSV can drive all
size diaphragm valves. The units can be bought separately for mounting
in a panel or can be purchased mounted on our SVE enclosure. Consult
factory for mounting of RSV valves with our DCT timer boards together
in one enclosure all pre-wired.
The Series SVE are multi-valve enclosures for the RSV pilot valve. The
SVE offers a convenient weatherproof enclosure package with all solenoids
pre-wired to a terminal block. Enclosures are available in 6 or 12 valve size
with choice of pilot valve voltage.
SVE SPECIFICATIONS
Service: (For RSV) Compatible gases, filtered and oil free.
Wetted Materials: (For RSV) Body: aluminum; Core and spring: 304
SS; Seals: NBR.
Pressure Limits: (For RSV) Minimum of 4.4 psi (0.3 bar), maximum
of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 122°F (-20 to 50°C); Operating:
-4 to 185°F (-20 to 85°C).
Power Requirement: (For RSV) 110 VAC, 220 VAC, or 24 VDC.
Power Consumption: (For RSV) 12 W, inrush: 17 VA, holding: 14.5
VA.
Enclosure Rating: NEMA 4X (IP65).
Enclosure Material: Anodized aluminum with NBR gasket.
Electrical Connection: All RSV are pre-wired to a terminal strip.
Process Connection: (For RSV) 1/8˝ NPT female. (Consult factory
for 1/4˝ NPT).
Conduit Connection: 3/4˝ NPT female.
Mounting Orientation: Any position.
Pneumatic Tube Length: Maximum of 9.8 ft (3 m).
RSV SPECIFICATIONS
Service: Compatible gases, filtered and oil free.
Wetted Materials: Body: aluminum; Core and spring: 304 SS;
Seals: NBR.
Pressure Limits: Minimum of 4.4 psi (0.3 bar), maximum of 124.7
psi (8.6 bar).
Temperature Limits: Ambient: -4 to 122°F (-20 to 50°C); Operating:
-4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC, 220 VAC, or 24 VDC.
Power Consumption: 12 W, inrush: 17 VA, holding: 14.5 VA.
Enclosure Rating: NEMA 4X (IP65).
Electrical Connection: DIN connection or wire leads, 18 AWG, 22˝
(55 cm) long.
Process Connection: 1/8˝ female NPT.
Mounting Orientation: Any position.
Weight: 0.60 lb (0.27 kg).
Pneumatic Tube Length: Maximum of 9.8 ft (3 m).
13/16
[21]
1-21/32
[42]
1-1/8
[32]
5/8
[16]
25/32
[19.5]
1-1/2
[38.5]
2-9/32
[83.5]
(WIDTH)
1-11/32
[34]
B
D
A
C WIDTH
MODELS
Model
Number
Quantity of
Solenoid
SVE06WP61
SVE06WP62
SVE06WP63
SVE12WP121
SVE12WP122
SVE12WP123
6
6
6
12
12
12
Enclosure
Type
Weatherproof
Weatherproof
Weatherproof
Weatherproof
Weatherproof
Weatherproof
Voltage
110 VAC
220 VAC
24 VDC
110 VAC
220 VAC
24 VDC
MODELS
Model
Number
RSV1D
RSV2D
RSV3D
RSV1L
RSV2L
RSV3L
Electrical
Connections
DIN
DIN
DIN
Wire Leads
Wire Leads
Wire Leads
Voltage
110 VAC
220 VAC
24 VDC
110 VAC
220 VAC
24 VDC
Cv
.33
.33
.33
.33
.33
.33
SVE06WP61
SVE06WP61
Model
Number
A (mm) D (mm)
SVE06WP61
SVE12WP121
B (mm)
10-5/32˝ (258)
12-7/16˝ (316)
C (mm)
4˝ (101.5)
4˝ (101.5) 4-21/32˝ (118)
6-5/8˝ (168)
7-29/32˝ (201)
10-3/16˝ (259)
C WIDTH
D
A
B
