There are three buttons, which the operator must
press in various combinations in order to configure
the device. These buttons are located on the
underside of the indicator’s circuit board. Viewed
from the front, the three buttons (CYCle ,
INCrement and DECrement
) are shown in the diagram
to the left. Pressing 2 buttons
simultaneously causes ENTer
or ESCape actions.
©Copyright 2011 Dwyer Instruments, Inc. Printed in U.S.A. 4/11 FR# R5-443914-10
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000 www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A. Fax: 219/872-9057 e-mail: [email protected]
The Series BPI/TC Battery Powered Temperature Indicator is
not field serviceable and should be returned if repair is needed
(field repair should not be attempted and may void warranty). Be
sure to include a brief description of the problem plus any
relevant application notes. Contact customer service to receive
a return goods authorization number before shipping.

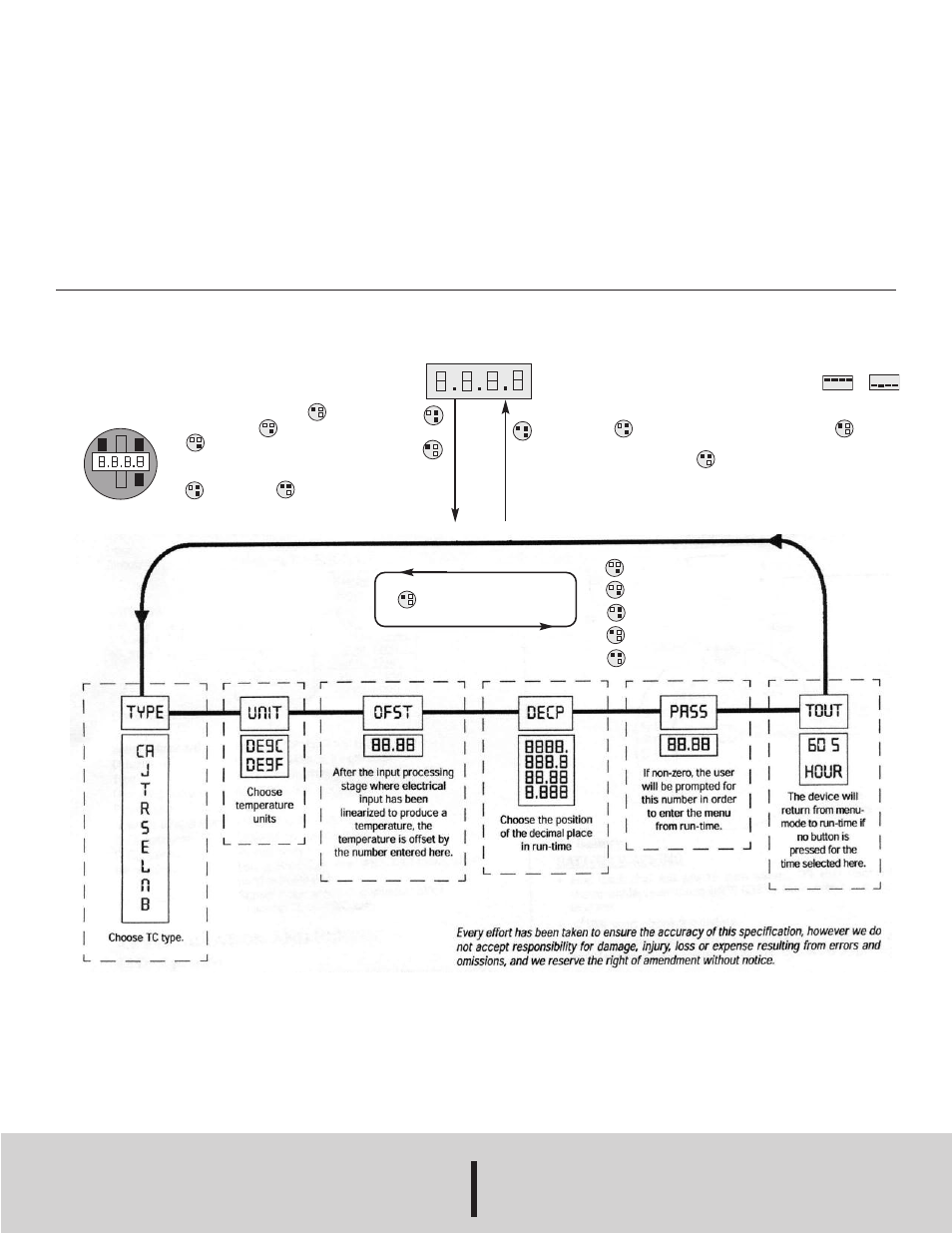

SERIES BPI/TC CONFIGURATION MENU GUIDE
Run-Time
then
INC
DEC
CYC
If no buttons are pressed for a minute or more, the
device assumes run-time mode. The display shows
the PV (if the input is in range) or shows or
to indicate over/under range. In order to access
menu configurationmode, the user must press
ENTer followed immediately by CYCle . In
order to exit the menu and return to run-time, a user
must press ESCape .
CYCle around menu
When cycling around menu, the
title (e.g. TYPE, UNIT, etc.) is
displayed for a second, then the
menu entry is displayed ready for
editing. Then use INC/DEC to
move through entries in a list, or
to edit a real number
.
INCrement menu entry
DECrement menu entry
ENTer to confirm entry, or:
CYCle to next menu entry
ESCape
MAINTENANCE
Apart from battery replacement this equipment requires no user
maintenance. If re-calibration is required please contact your
supplier for further information. Under certain circumstances, it
may be possible to re-calibrate the device while it is still out in
an application.
Please observe the battery warning. Ensure the instrument is
installed with adequate protection against the environment. IP67
rating must be maintained. Try to avoid installing the equipment
close to sources of extreme temperature and electrical or
electromagnetic interference. Any cleaning of the instrument
should be carried out using a mild detergent and a soft cloth. No
solvents or abrasive cleaner should be used.
