6-1/4
[158.75]
6-7/8
[174.62]
1-13/16
[46.04]
1/16
[1.59]
2-3/4
[69.85]
8-1/4
[209.55] 8-3/4
[222.25]

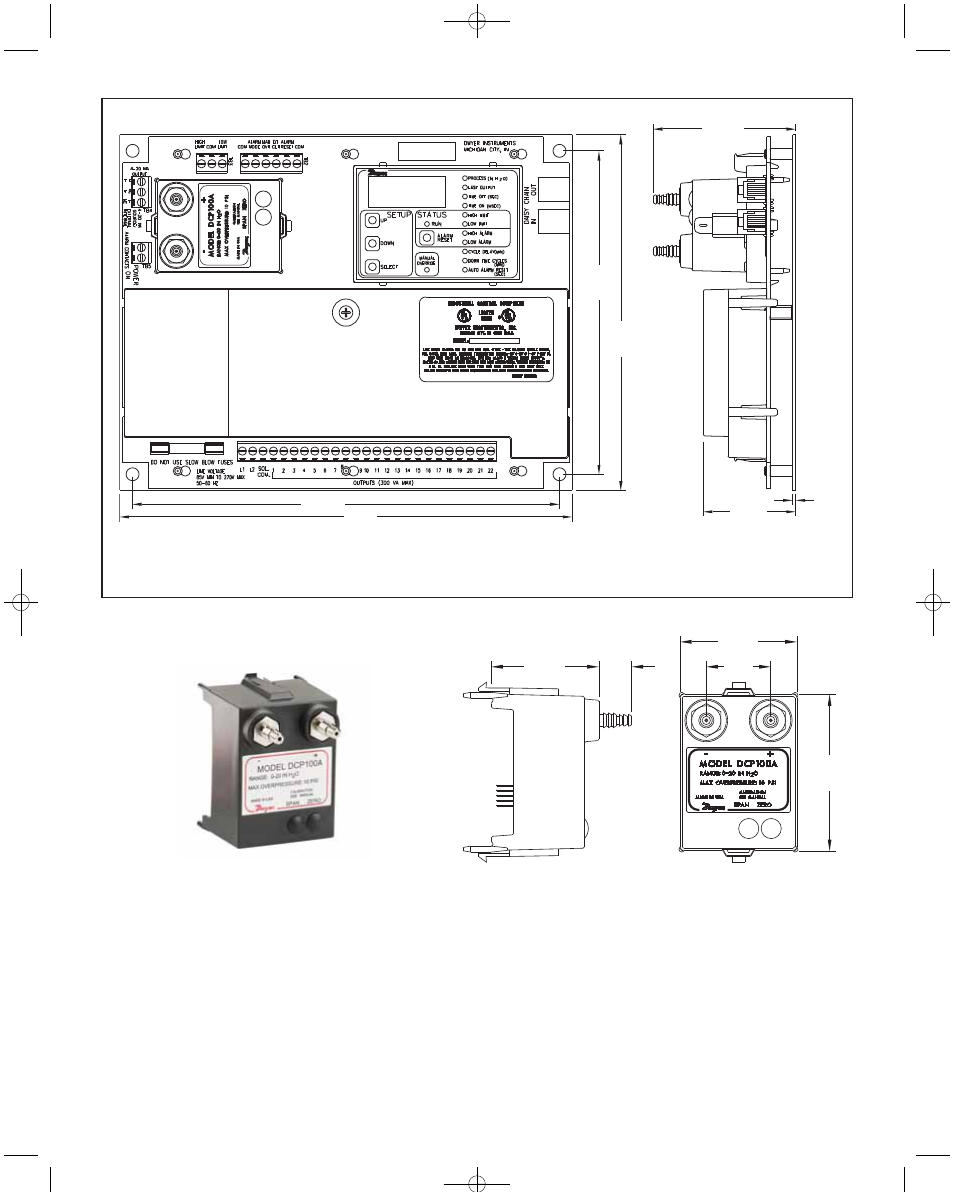

Figure 1 – Dimensional Specifications for the DCT1000
(shown with optional module DCP100A)
SPECIFICATIONS
Pressure Ranges: 10˝ w.c. or 20˝ w.c.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Pressure Limit: 10 psi (68.95 kPa).
Pressure Limit (differential): 10 psi (68.95 kPa).
Accuracy: ±1.5% F.S. @ 73°F (22.8°C).
Output Signal: 4-20 mA.
Alarm Contacts: 1.5A inductive load, 3A resistive load @ 30 VAC
or 40 VDC.
Process Connections: Two barbed connections for use with 1/8˝
(3.18 mm) or 3/16˝ (4.76 mm) I.D. tubing.
Weight: 5.5 oz (155.9 g).
1-11/16
[42.86]
1/2
[12.70]
1-13/16
[46.04]
1
[25.40]
2-7/16
[61.91]
The DCP100A or DCP200A pressure modules are designed exclu-
sively for use with the Dwyer DCT1000 Dust Collector Timer
Controller boards for on-demand cleaning requirements. These
series of modules are available in 10˝ w.c. [2.49 kPa] or 20˝ w.c.
[4.98 kPa] ranges, which allow for differential process pressure
measurement as indicated on the display of the master controller.
An isolated 4-20 mA readout channel is provided for remote pres-
sure display. The 4-20 mA output may be wired either for use with
an external power supply and indicator or using the isolated on-
board 24 volt power supply to power the loop.
