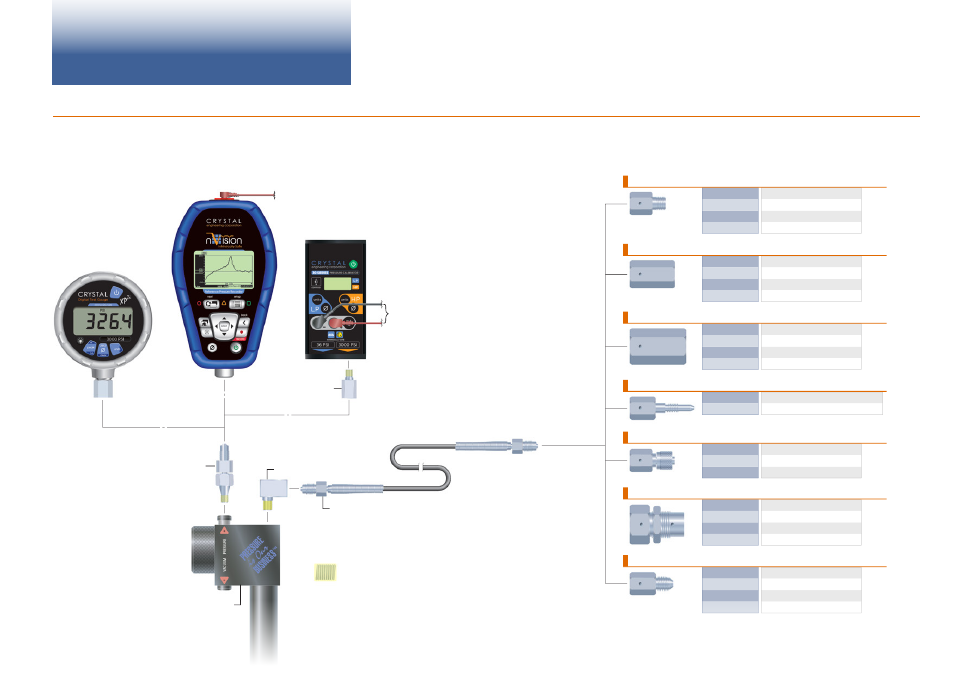

CPF Connection Diagram
3
ComboPump Operation Manual
CPF Connection Diagram
RECOMMENDED HOSE AND FITTINGS
2908
MPF-1/8MPT
To Transmitter
MPM-1/8MPT
To Transmitter
MPH-XX
MPF-1/8MPT90
Denotes areas where thread-sealing tape is required.
MPF-1/8QTM
1/8" Quick Test NPT Male
MPF-1/8MPT
1/8" NPT Male
MPF-1/4QTM
1/4" Quick Test NPT Male
MPF-1/4MPT
*
1/4" NPT Male
MPF-1/8QTF
1/8" Quick Test NPT Female
MPF-1/4QTF
1/4" Quick Test NPT Female
MPF-1/4FPT
1/4" NPT Female
MPF-1/2QTF
1/2" Quick Test NPT Female
MPF-1/8BSPF
G 1/8" Female
MPF-1/4BSPF
G 1/4" Female
MPF-3/8BSPF
G 3/8" Female
MPF-1/2BSPF
G 1/2" Female
MPF-MPF
Female to Female
MPF-MPFTU
T-Union (Female)
MPF-MPFBULK
Bulkhead (Female to Female)
MPF-CAP
Cap
MPF-M20QTF
M20 x 1.5 Quick Test Female
MPF-M20X1.5F
M20 x 1.5 Female
MPF-QCN
Quick-Connect Nut
MPF-AN4M
AN4 Male
MPF-1/4TBM
1/4" Tube Male
MPF-3/8TBM
3/8" Tube Male
MPF-1/2TBM
1/2" Tube Male
MPF-5/16TRM
for Foxboro, Rosemount, & Yokogawa
MPF-1/4TRM
for Honeywell
NPT MALE
NPT FEMALE
BSP
CPF
ADDITIONAL
TRANSMITTER
Additional NPT sizes available in non-CPF MP adapters
Additional NPT sizes available in non-CPF MP adapters
TUBE
R
