24VDC Loop Power Supply Operation Manual  3
—
ELECTRICAL SPECIFICATIONS
Output Voltage . . . . . . . . . . . . . . . . . . 24 VDC +/- 2%
Output Voltage Ripple . . . . . . . . . . . < 14 mV rms
Load Regulation . . . . . . . . . . . . . . . . . 1%
Rated Output Current . . . . . . . . . . . . 25 mA
Short Circuit Protection . . . . . . . . . . Continuous
Connections . . . . . . . . . . . . . . . . . . . . . 4mm banana jacks
Operating Temperature . . . . . . . . . . -20 to 50°C (-4 to 122°F)
Storage Temperature . . . . . . . . . . . . -40 to 75°C (-40 to 167°F)
Operating Humidity . . . . . . . . . . . . . 95% Relative, non-condensing
Power Supply . . . . . . . . . . . . . . . . . . . . 2 x AA batteries (alkaline 1.5 V included)
—
MECHANICAL SPECIFICATIONS
Overall Dimensions . . . . . . . . . . . . . . 4.8" x 3.1" x 1.2"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . 200 g (0.44 lbs) including alkaline batteries
—
ENCLOSURE
Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . IP40
Housing . . . . . . . . . . . . . . . . . . . . . . . . . ABS
Protective Boot . . . . . . . . . . . . . . . . . . Silicone Rubber
—
CERTIFICATIONS
The 24VDCPS has been tested and certified to comply with a variety of international standards.
We declare that the 24VDCPS is in accordance with the Electromagnetic Compatibility Directive per our declaration.
—
ORDERING INFORMATION
P/N 24VDCPS KI T 24 VDC Loop Power Supply plus the P/N 1351 Test Lead Set
P/N 24VDCP S 24 VDC Loop Power Supply

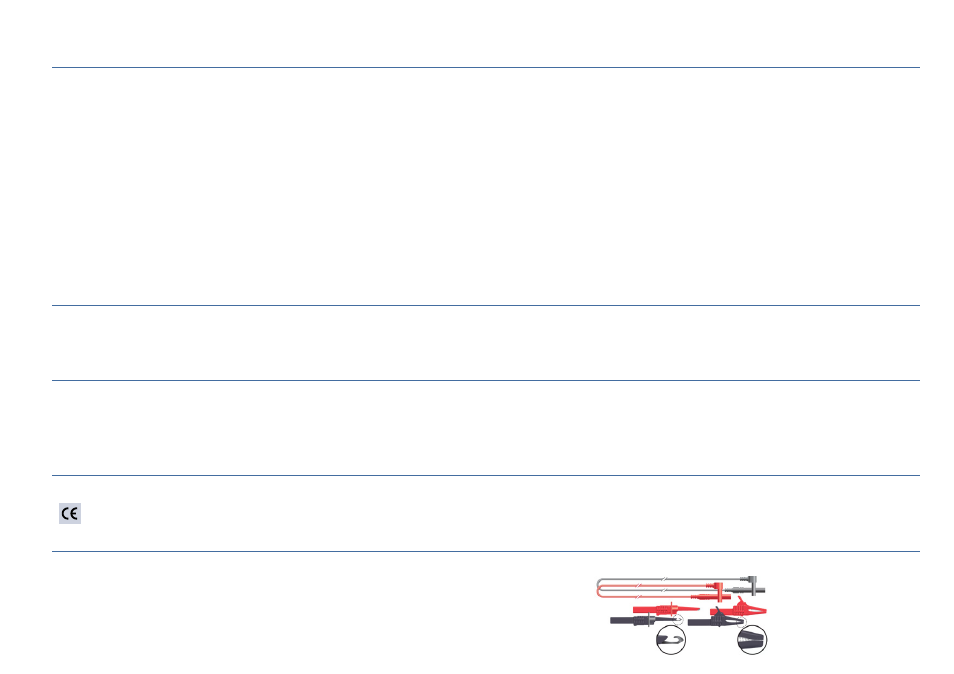

P/N 1351 Test Lead Kit
Two 4 mm shrouded banana plug, straight to right angle, 122 cm (48 inch) leads with alligator clip and spring loaded hook tip probes.
