Crystal XP2i-DP Digital Differential Pressure Gauge - Manual (Page 2)

2
(3x)
(3x)
1
Prepare the panel opening per the
diagram on page 6.

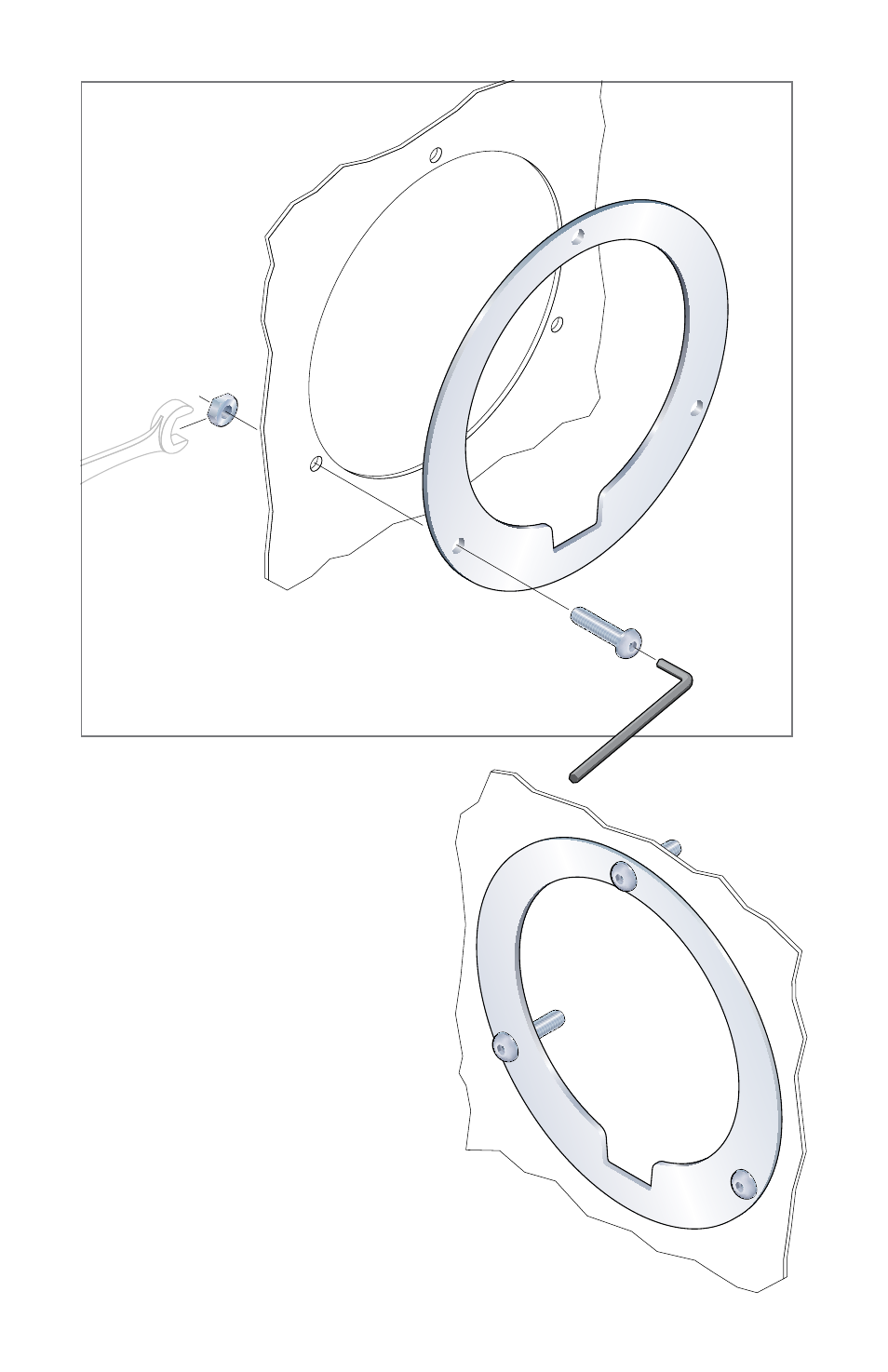

2
Install the Front Flange using three
(3) 10-32 x 7/8" Socket Pan Head
Screws and three (3) 10-32 Nuts.
3
Tighten using a 3/8" wrench and
the provided Hex Key.
Note: If necessary, the 10-32 Nuts
can be installed from the front,
working through the cut-out hole.
