Threaded connections
Materials:
- body: brass EN 1982 CB 753S
- dirt collection chamber: brass EN 12165 CW617N
- top plug: brass EN 12164 CW614N
- int. element: PA66G30, stainless steel (vertical version)
- hydraulic seal: EPDM
- drain cock: brass EN 12165 CW617N
- magnet (5463 and 5468 series): 2600 G
Medium: water, glycol solution
Max. percentage of glycol: 50%
Max. working pressure: 10 bar
Temperature range: 0–110°C
Connections: - main: Ø 22 and Ø 28 compression end, 3/4”, 1”, 1 1/4”, 1 1/2”, 2” F
- top:
1/2” F (with plug)
- drain: hose connection
Flanged connections
Materials:
- body: epoxy resin coated steel
- int. element: stainless steel
- hydraulic seal: non-asbestos fibre
- shut-off and drain valve body: brass EN 12165 CW617N,
(DN 200 – DN 300 chrome plated)
Medium: water, glycol solution non hazardous, therefore
excluded from the guidelines of 67/548/CEE Directive
Max. percentage of glycol: 50%
Max. working pressure: 10 bar
Temperature range: 0–110°C
Connections: - main: PN 16: DN 50–DN 150; PN 10: DN 200–DN 300
- top: 3/4” M (with plug)
- temperature probe connections:1/2” inlet/outlet (DN 200–DN 300)
- drain:
1” F (DN 50–DN 150); 2” F (DN 200–DN 300)

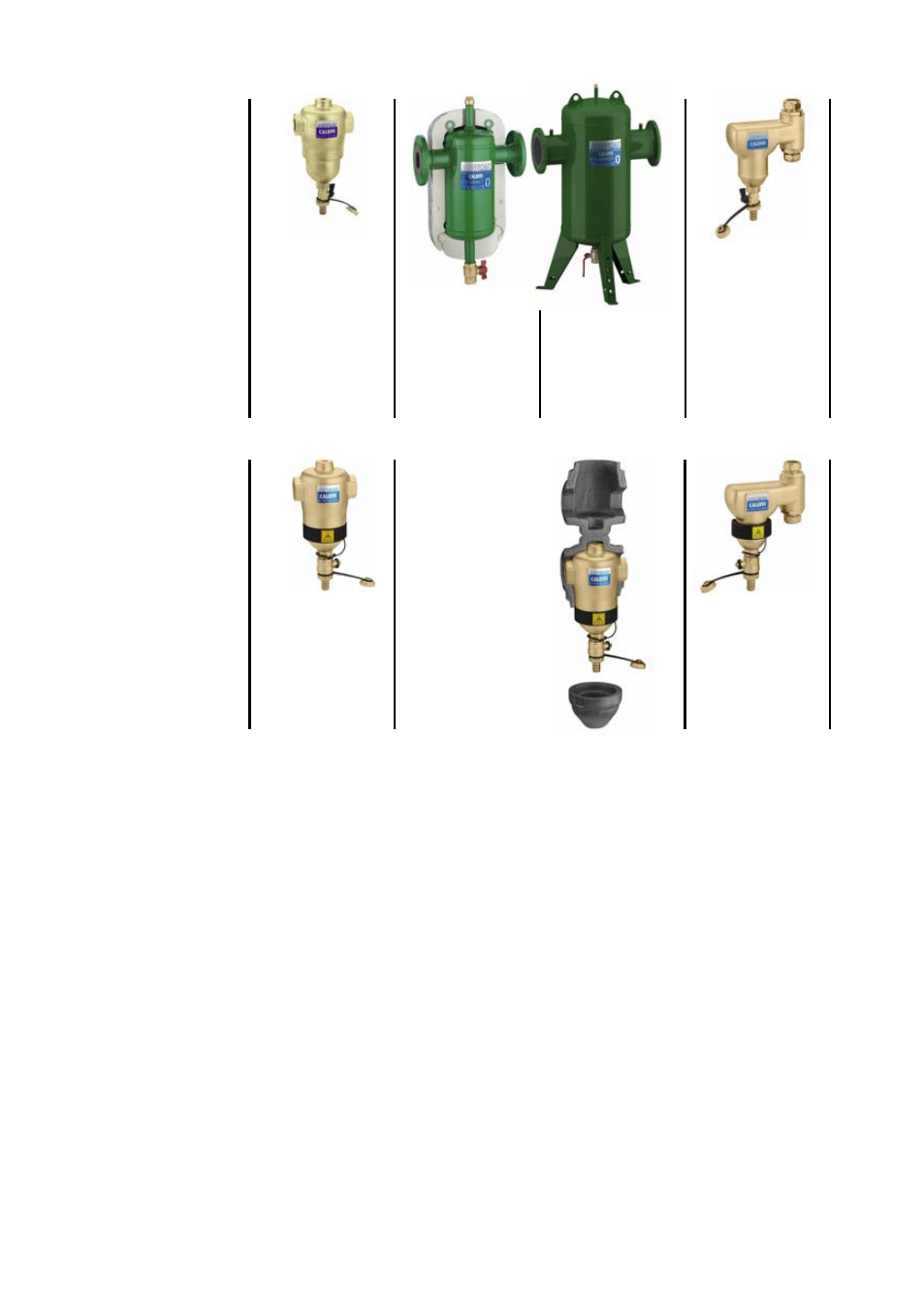

Product range
546205 3/4”
546206 1”
546207 1 1/4”
546208 1 1/2”
546209 2”
2
546902 Ш 22
546905 3/4”
546906 1”
546315 3/4”
546316 1”
546317 1 1/4”
546318 1 1/2”
546319 2”
546305 3/4”
546306 1”
546307 1 1/4”
546308 1 1/2”
546309 2”
546802 Ш 22
546803 Ш 28
546805 3/4”
546806 1”
546550 DN 50
546560 DN 65
546580 DN 80
546510 DN 100
546512 DN 125
546515 DN 150
546520* DN 200
546525* DN 250
546530* DN 300
*
Without insulation and with floor supports
