Trimble Ranger X Meter Reading System Software Installation
Installing Meter Reading Software on the Handheld
1 Insert the memory stick with the software files into the USB port on the handheld

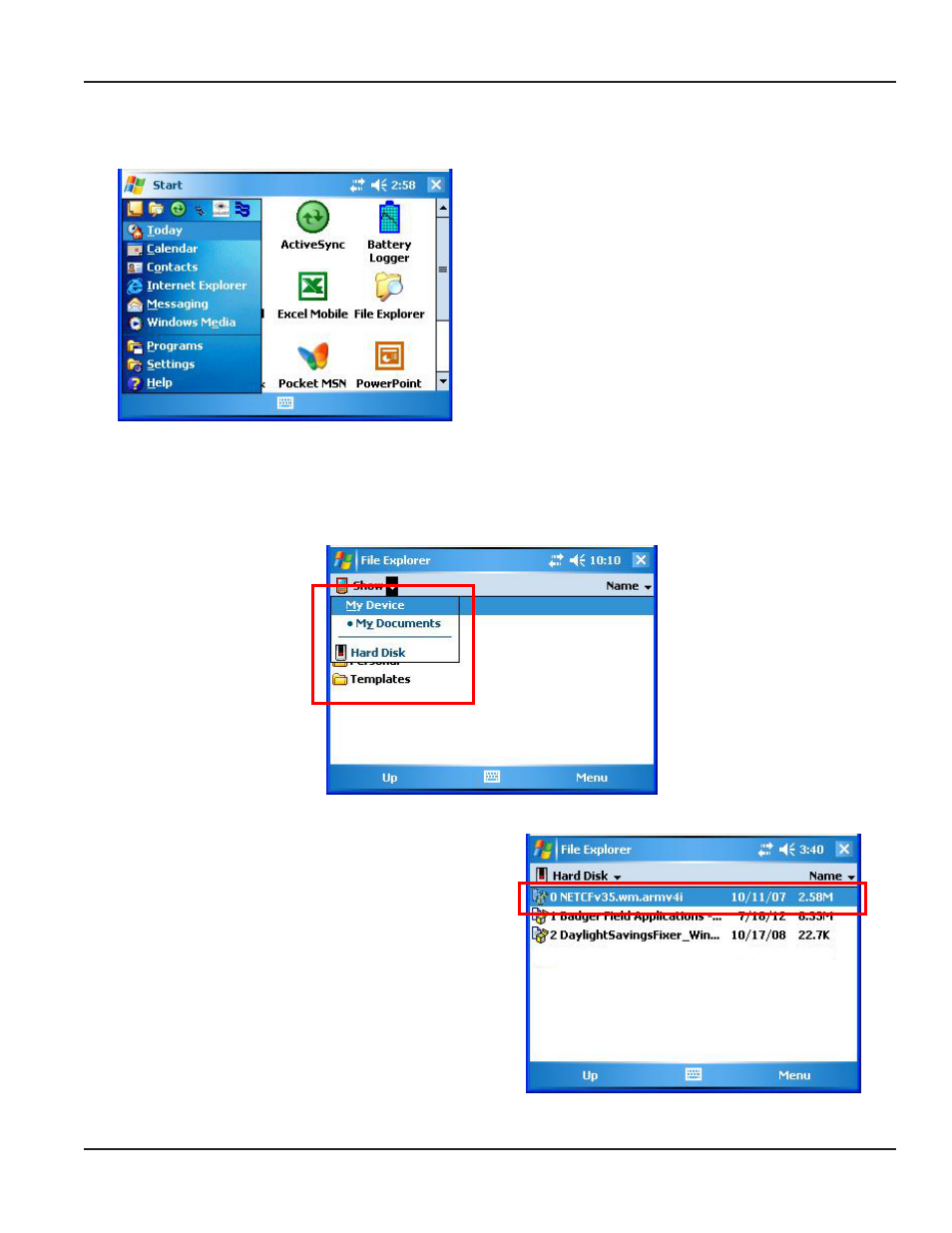

Figure 17: Start> Programs> File Explorer
2 Tap Windows Start> Programs> File Explorer
3 Tap the drop-down menu in the tool bar and select Hard Disk
NOTE:
N
If the memory stick is not inserted, Hard Disk does not display
Figure 18: Hard disk
4 Tap Hard Disk to see the software files
IMNOOTAO
I
Make sure you install the three files in order: 0, 1, 2
5 Tap to select the first file labeled "0 NETCFv35
wm arm v4i "
Result: The file location window opens as shown in
Figure 20 on the next page.
Figure 19: Software installation files
INSTALLING THE METER READING SOFTWARE
