Returning the N1022A
Returning the N1022A
When the probe adapter is returned to an Agilent service office for servicing, it
must be adequately packaged and have a complete description of the failure
symptoms attached.
Please notify the service office before returning your probe adapter for ser-
vice. Any special arrangements for the adapter can be discussed at this time.
This will help the Agilent service office repair and return your adapter as
quickly as possible.
1 Write the following information on a tag and attach it to the probe adapter.
Include any specific performance details related to the problem. The following
information should be returned with the instrument.
• Company name and return address.
• Name and phone number of technical contact person.
• Probe adapter model number.
• Probe adapter serial number.
• Description of the service required or failure indications.

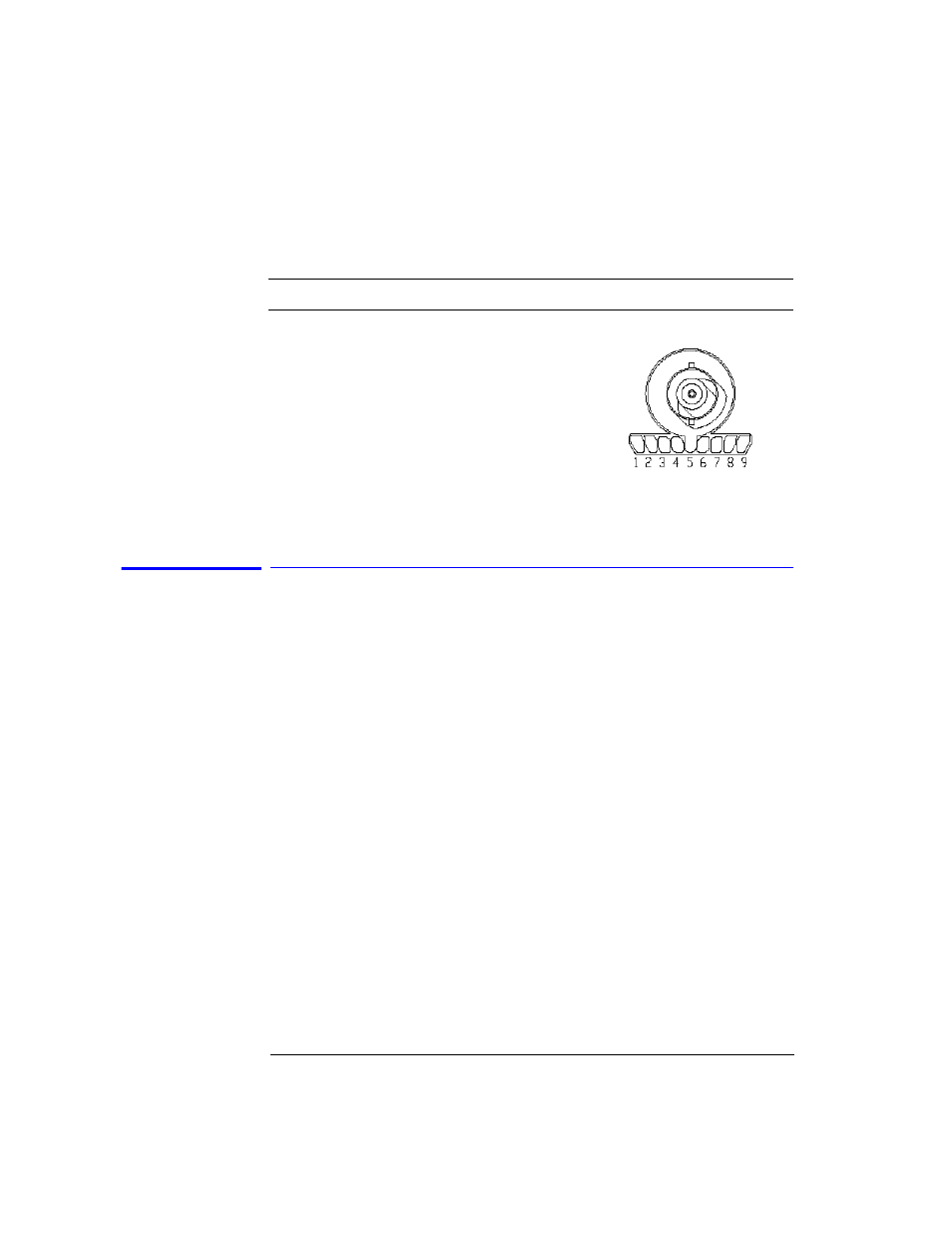

Table 5. Probe Power Outputs
Pin Supply Power Output
1 +3V
2 –3V
3 Offset
4 NC
5 and ring Probe ID
6 NC
7 R
P
8 –12V
9 +12V
