Instruction Manual pH Simulator
2
2 Display and Keypad Function
2.1 Display
The display consists of 16 sets of labeled LED for the selection of pH and mV values.
The display also includes the low battery indicator LED at the bottom left hand corner.

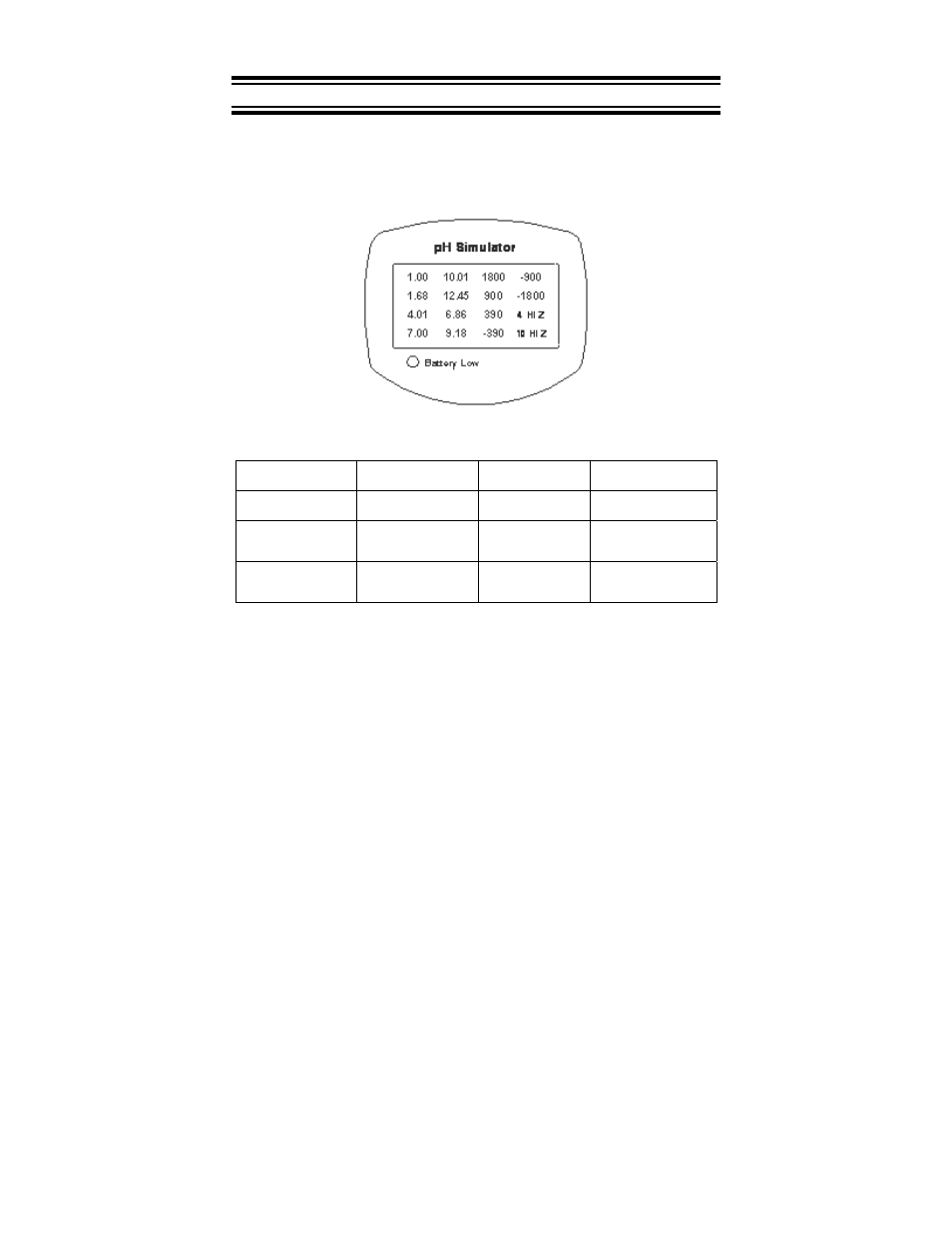

Figure 1: Full LED Display
1.00 – 1.00 pH Value 10.01 – 10.01 pH Value 1800 – 1800 mV Value -900 - -900 mV Value
1.68 – 1.68 pH Value 12.45 – 12.45 pH Value 900 – 900 mV Value -1800 - -1800 mV Value
4.01 – 4.01 pH Value 6.86 – 6.86 pH Value 390 – 390 mV Value
4 HI Z – 4.01 High
Impedance pH value
7.00 – 7.00 pH Value 9.18 – 9.18 pH Value -390 - -390 mV Value
10 HI Z –10.01 High
Impedance pH value
