Cable’s bnc connector – Thermo Fisher Scientific Precision pH/mV Simulator User Manual
Page 10
Instruction Manual
pH Simulator
7
3.4
Connecting the BNC cable to simulator
1.
Insert the BNC connector of the cable over the BNC socket on the simulator.
2.
Make sure the slots of the connector are in line with the posts of the socket.
3. Slide the BNC connector of the cable over the socket and rotate the
connector clockwise until it locks.
4.
To remove cable, push and rotate the connector counterclockwise.
5. While holding onto the metal part of the connector, pull it away from the
simulator.
6.
Be careful not to use excessive force.
CAUTION: Do not pull on the cable cord or the cable wires might disconnect.

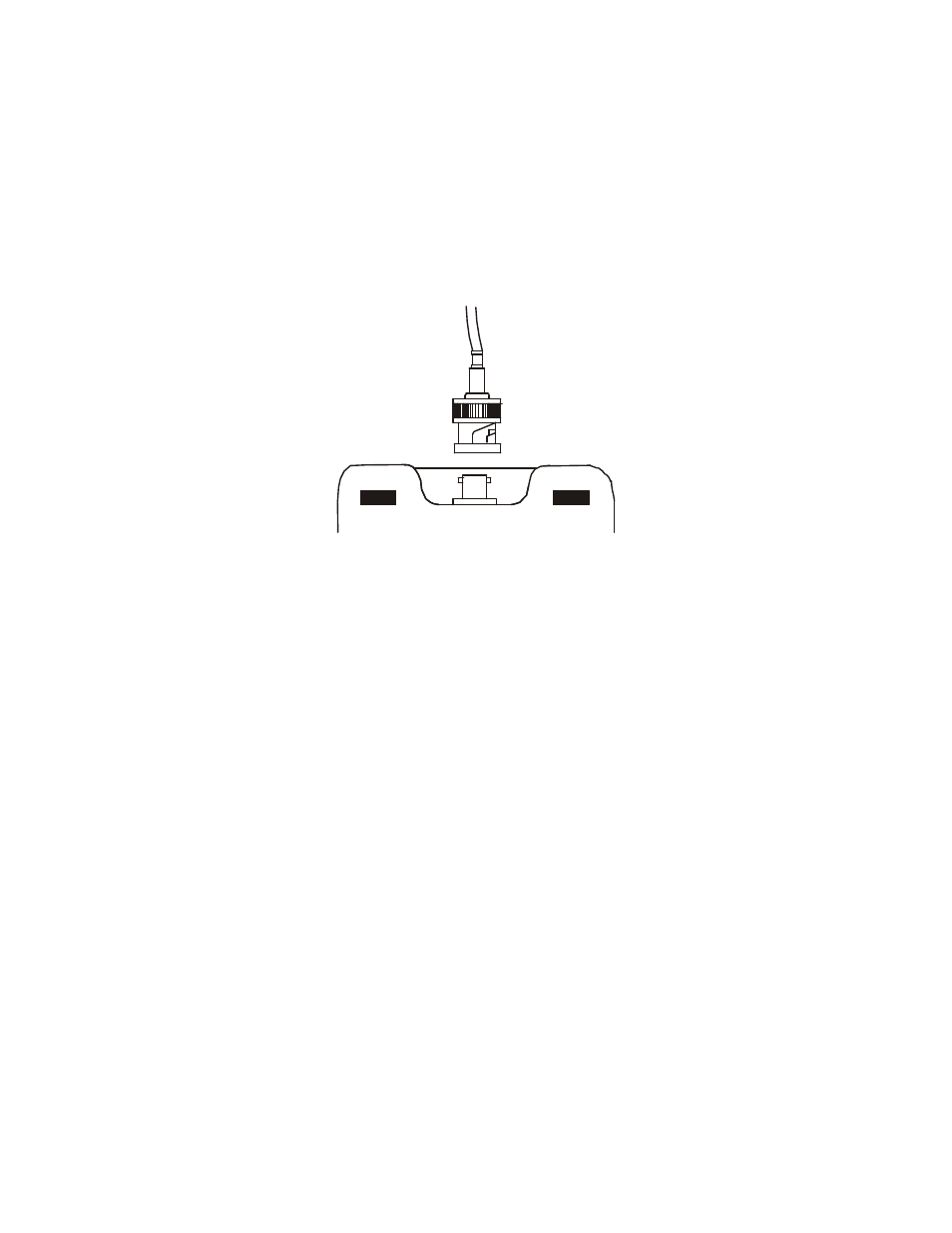

Cable’s BNC
Connector
Figure 6: BNC cable connection to the simulator
