Instruction Manual pH 5/6 & Ion 5/6
- 3
-

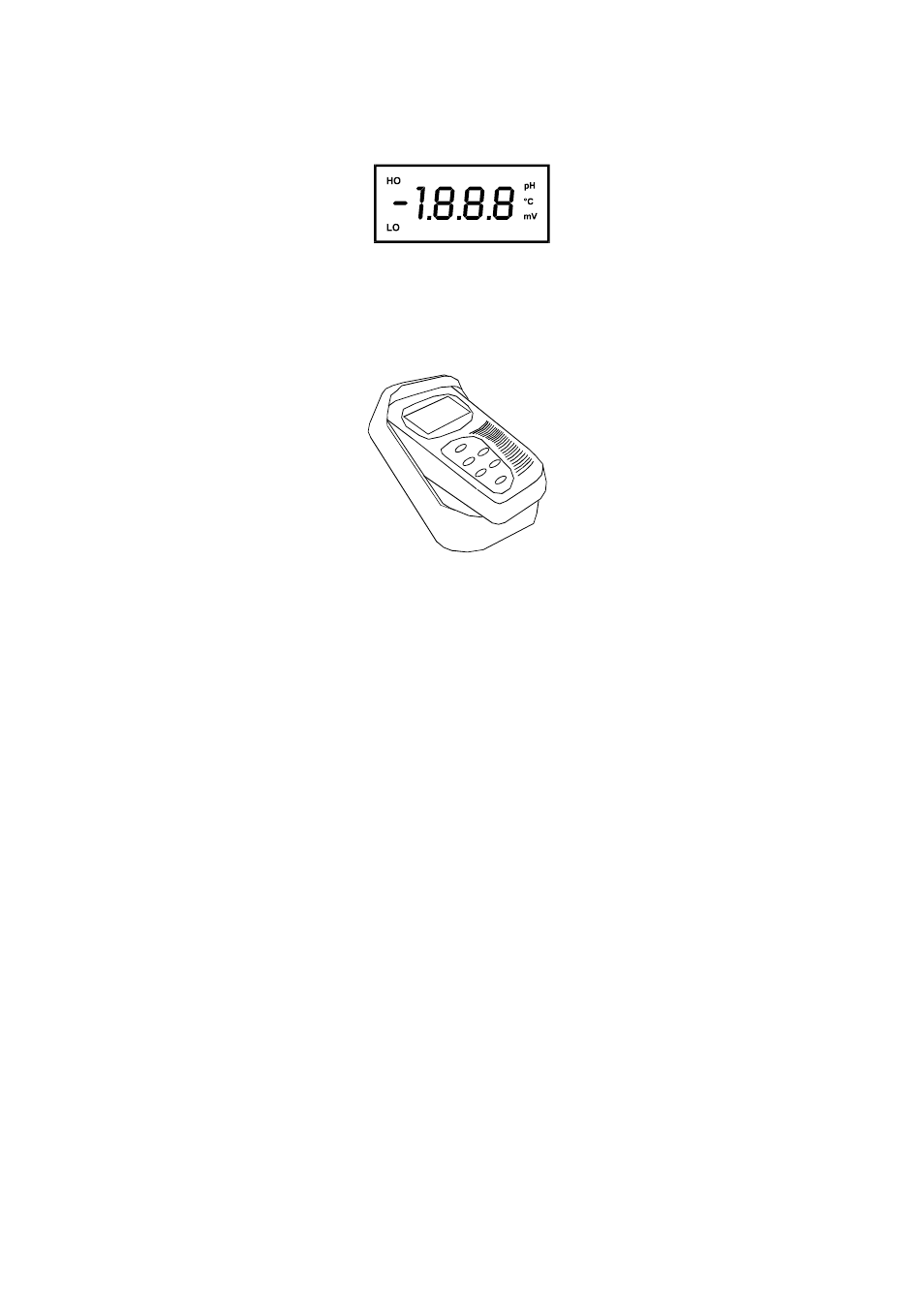

2.2 Description of LCD Annunciators
The meter has a large custom LCD that consists of 3½-digit segments and
operation annunciators for pH, mV or
o C (Temperature). Note that there is no
annunciator shown in Ion mode. Other annunciators include “HO” (when the
HOLD function is activated) and “LO” (low battery condition).
2.3 Inserting & Removing the Rubber Boot
1. To remove meter from rubber boot, push out from the bottom edges of
meter until it is completely out of boot. Ensure that cables of ISE/pH
electrode or temperature probe are not connected.
2. To insert meter into rubber boot, slide in from the top of meter before
pushing the bottom edges of meter down to set it into position. Lift up the
stand at the back of meter for bench top applications if necessary.
