Refer to instructions supplied with wall carrier for proper installation of 4-bolt support
system wall cavity requirements and rough-in information for waste outlet piping.
Closet Carrier Support
Putty Knife Sealant
Tape Measure Regular Screwdriver
Adjustable Wrench Carpenters Level
Flush Valve
RECOMMENDED TOOLS AND MATERIALS
Pictures may not exactly define contour of china

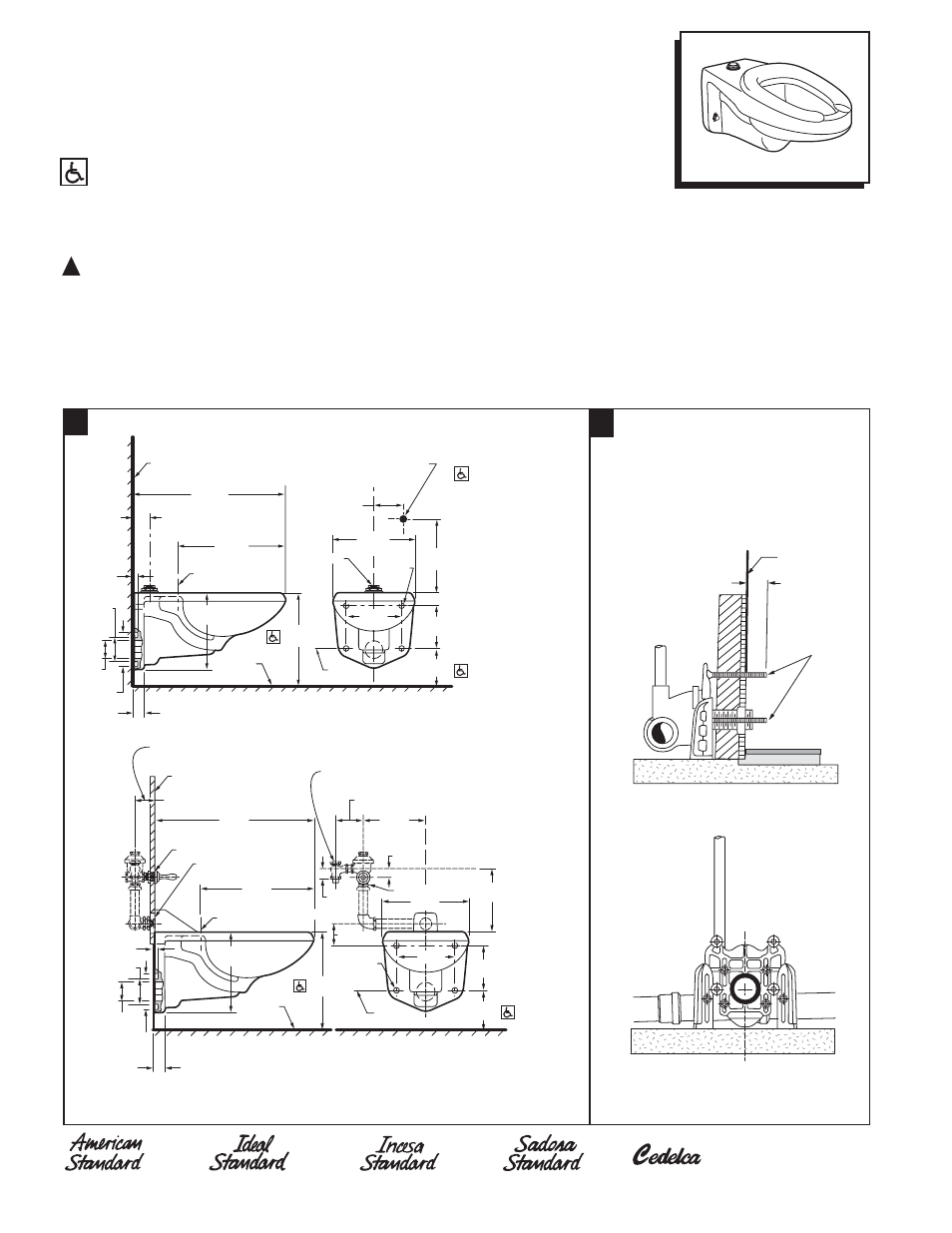

Model 3355, 3356, 3357, 3358
AFWALL ADA RETROFIT FLUSH VALVE
WALL-MOUNTED TOILETS
INSTALLATION INSTRUCTIONS
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR
HANDLING TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
FIXTURE MOUNTING
Fixture studs should project
1-7/8" (48mm) from face of
finished wall.
Front View
Side View
FINISHED
WALL
1-7/8"
(48mm)
(4) STUDS
When installed,
top of seat shall be
between 17" and 19"
(432mm and 483mm)
from the finished
floor.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the Physically Challenged
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure thisproduct
is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
!
FINISHED WALL
470mm
(18-1/2)
C/L OF SEAT POST
HOLES 140 mm
(5-1/2) CENTER
660mm
(26)
73mm
(2-7/8)
133mm
(5-1/4)
191mm
(7-1/2)
292mm
(11-1/2)
(4) 22mm
(7/8)
HOLES
356mm
(14)
C/L OF
OUTLET
121mm
(4-3/4)
FINISHED
FLOOR
32mm
(1-1/4)
1" N.P.T. OR C.W.T. SUPPLY
AS REQUIRED TO FLUSH VALVE
368mm
(14-1/2)
19mm
(3/4)
133mm
(5-1/4)
83mm
(3-1/4)
62mm
(2-3/8)
1-1/2 SPUD
C/L
229mm
(9)
FINISHED WALL
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm(5-1/2) CENTERS
660mm
(26)
133mm
(5-1/4)
191mm
(7-1/2)
298mm
(11-3/4)
(4) 22mm (7/8)
DIA. HOLES
356mm
(14)
C/L OF
OUTLET
FINISHED
FLOOR
32mm
(1-1/4)
368mm
(14-1/2)
(3/4)
19mm
133mm (5-1/4)
83mm
(3-1/4)
C/L
229mm
(9)
38mm (1-1/2) DIA. HOLE IN WALL
95mm
(3-3/4)
FOR WALLS UP TO 1" IN THICKNESS FOR EACH INCH
ADDITIONAL THICKNESS OF WALL ADD 25mm (1) TO
MEASUREMENT SHOWN
89mm
(4)
1" C.W.T. OR N.P.T. SUPPLY
AS REQ'D NOT FURNISHED
121mm
(4-3/4)
VACUUM BREAKER
76mm(3) DIA. HOLE IN WALL
FOR 1-1/2 SPUD
254mm
(10)
41mm
(1-5/8)
38mm
(1-1/2)
62mm (2-3/8)
419mm
(16-1/2)
419mm
(16-1/2)
