MULTI-PARAMETER TRANSMITTER USER’S MANUAL
Section 2 - Installation
Section 2 - Installation Page 5
MIN. PIPE DIA.
1" PIPE (NOMINAL)
MAX. PIPE DIA.
2" PIPE (NOMINAL)
NUT
10-24
QTY.4
SCREW
10-24 X 3-1/2"
QTY.4
UNIVERSAL MOUNTING
BRACKET
QTY.1

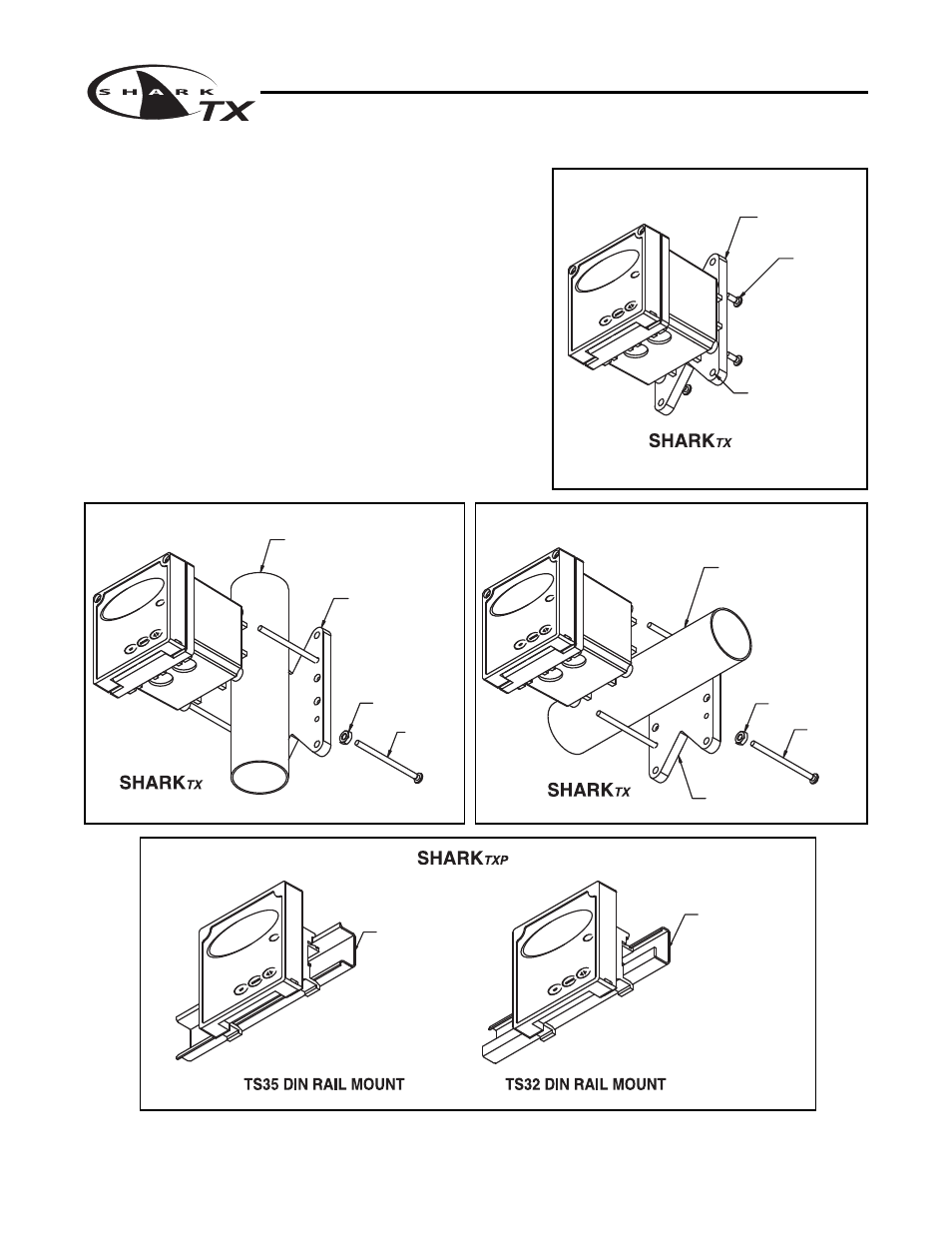

Figure 2.6 Horizontal Pipe Mount
Surface Mount – The SHARK
TX
can be surface
mounted using the hardware kit provided with the unit.
Pipe Mount – The SHARK
TX
can be mounted to a
horizontal or vertical pipe with:
• a minimum outside diameter of 1.30” (33mm) (for
example 1” CPVC pipe)
• and a maximum of 2.375” (60mm) (for example 2”
CPVC pipe)
DIN Rail Mount – The SHARK
TXP
can be DIN rail
mounted or panel mounted. See figure 2.3 & figure 2.7.
MIN. PIPE DIA.
1" PIPE (NOMINAL)
MAX. PIPE DIA.
2" PIPE (NOMINAL)
SCREW
10-24 X 3-1/2"
QTY.4
NUT
10-24
QTY.4
UNIVERSAL MOUNTING
BRACKET
QTY.1
Fig. 2.5 Vertical Pipe Mount
UNIVERSAL MOUNTING
BRACKET
QTY.1
SCREW
10-24 X 1/2"
QTY.4
HOLES Ø1/4"
FOR MOUNTING SCREWS
QTY.4
(CUSTOMER SUPPLIED)
Figure 2.4 Surface Mount
TS35 DIN RAIL MOUNT
(CUSTOMER SUPPLIED)
TS32 DIN RAIL MOUNT
(CUSTOMER SUPPLIED)
Figure 2.7 DIN Rail Mount
Dwg# N105-101 Dwg# N105-101
Dwg# N105-101
Dwg# N105-104
