ELECTRICAL CONNECTIONS

4

13

LS 6600

www.krohne.com

03/2013 - 4001367702 - MA LS 6600 R02 en

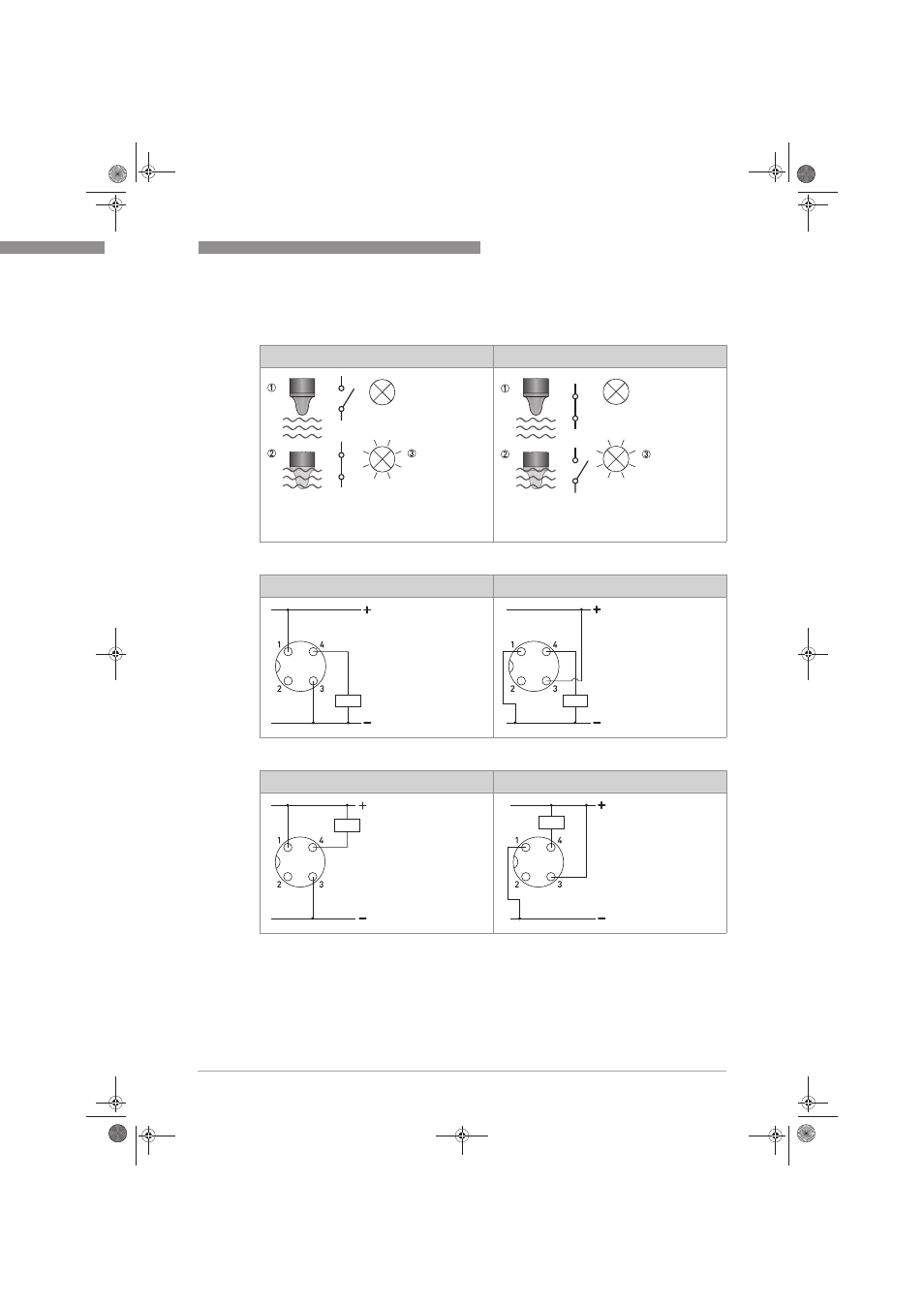

4.3 Electrical connection diagramms

Description of normally open (NO) and normally closed (NC)

PNP

NPN

M12 plug

1: brown; 2: white; 3: blue; 4: black

Normally open

Normally closed

1 0 mA

2 20 mA

3 LED

1 20 mA

2 0 mA

3 LED

Normally open

Normally closed

Normally open

Normally closed
