Installation
5

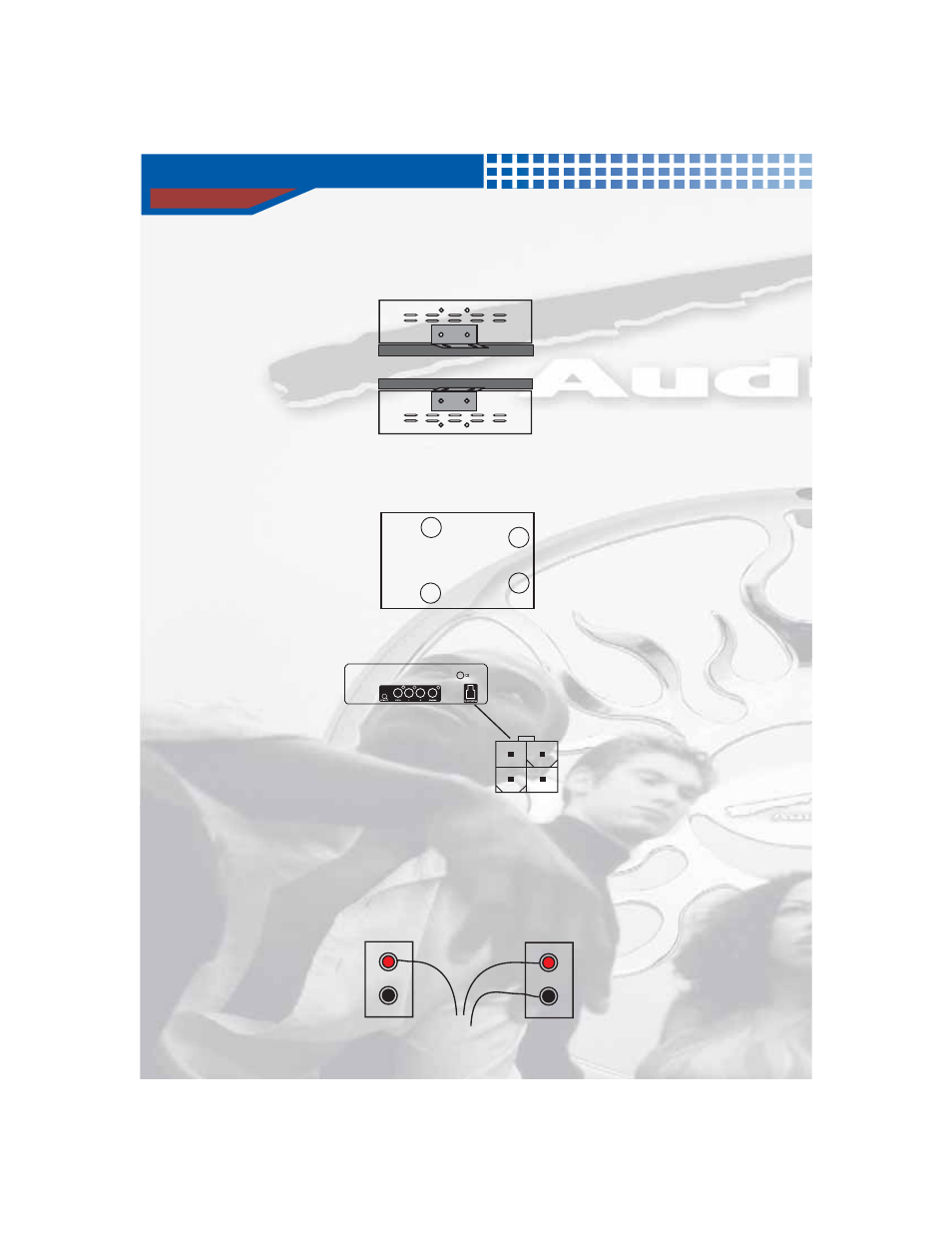

1. Fix the unit horizontally.
2. Hang the unit.
The device
Fixed face
Fixed face
The device
NOTE: Must attach the device well.
3. Fix the 4 Pcs screws.
Bottom of the device
4. The positions of rubber foot.
Put the square plug into socket (note the direction of the lug when
connecting) and connect RED cable with VBAT
NOTE: Must pay attention to power s polarity and connecting
cable colour to avoid damage the device or other equipment and
'S +, black cable
VBAT'S- or ACC'S- and yellow cable with ACC'S+.
'
5. Connecting with power.
DC+
DC+ GND - ˄ ˅
+
-
V BAT
DC OUTPUT
12-24V ˄ ˅
RED
BLAC K
+
-
YELLO W
ACC
DC OUTPUT
12-24V ˄ ˅
input power DC 12V-24V. If connected to power of alternator
only, when alternator off, the car DVD player will standby.
The device has 2 Pcs mounting hardware and 4 Pcs screws.
NOT USED
