Installation and operating instructions BM 702 (06/04)

7

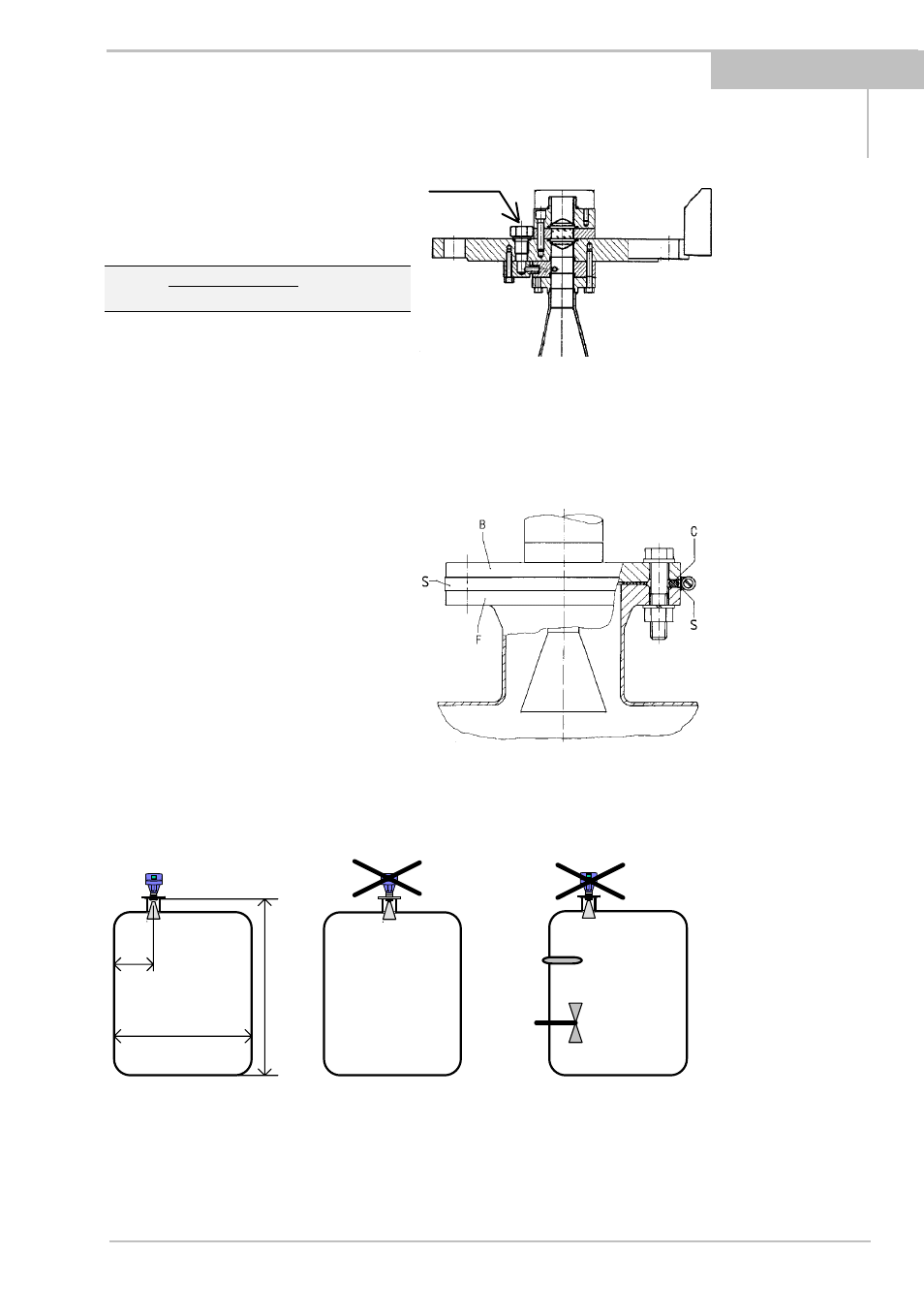

c) Purging device

Remove screw plug ¼" R and screw in
screwed tube joint, e.g. Ermeto ¼" R.

Consult “Ex“ specifications relating to the
purging circuit (provided by customer)!


Installation on the tank

• Do not forget the gasket when

positioning the BM 702 on the tank
nozzle flange. Align BM 702 and gasket,
slightly tighten nuts on stud bolts (by
hand).

• Press shielding strip C* in the gap

between tank and BM 702 flanges and
secure with strap retainer S* (both
items included with supply).

Strap retainer S* must fit closely and

overlap both flanges.

* only required for European radio approvals

• Tighten down stud bolt nuts firmly. The

tightening torque is dependent upon
the strength properties of the stud
bolts and the pressure rating of the
tank


C* = shielding strip B = BM 702 flange
S* = strap retainer F = tank flange


Positioning on the tank

D

>1/7×H, but max. 1/3×D

H

Recommended distance

Do not position in

Do not position

from the tank wall

tank

centerline!

above internals!

(multiple reflections!)

(interference reflections!)

A Stilling well or Wave-Guide may be mounted in any position on the tank!
