3
ELECTRICAL CONNECTIONS
30
OPTIWAVE 5200 C/F
www.krohne.com 08/2013 - 4001905202 - QS OPTIWAVE 5200 R02 en
3.6 Networks
3.6.1 General information
The device uses the HART ® communication protocol. This protocol agrees with the HART ®
Communication Foundation standard. The device can be connected point-to-point. It can also
operate in a multi-drop network of up to 15 devices.
The device output is factory-set to communicate point-to-point. To change the communication
mode from point-to-point
point-to-point point-to-point point-to-point to multi-drop multi-drop multi-drop multi-drop, refer to "Network configuration" in the handbook.
3.6.2 Point-to-point connection

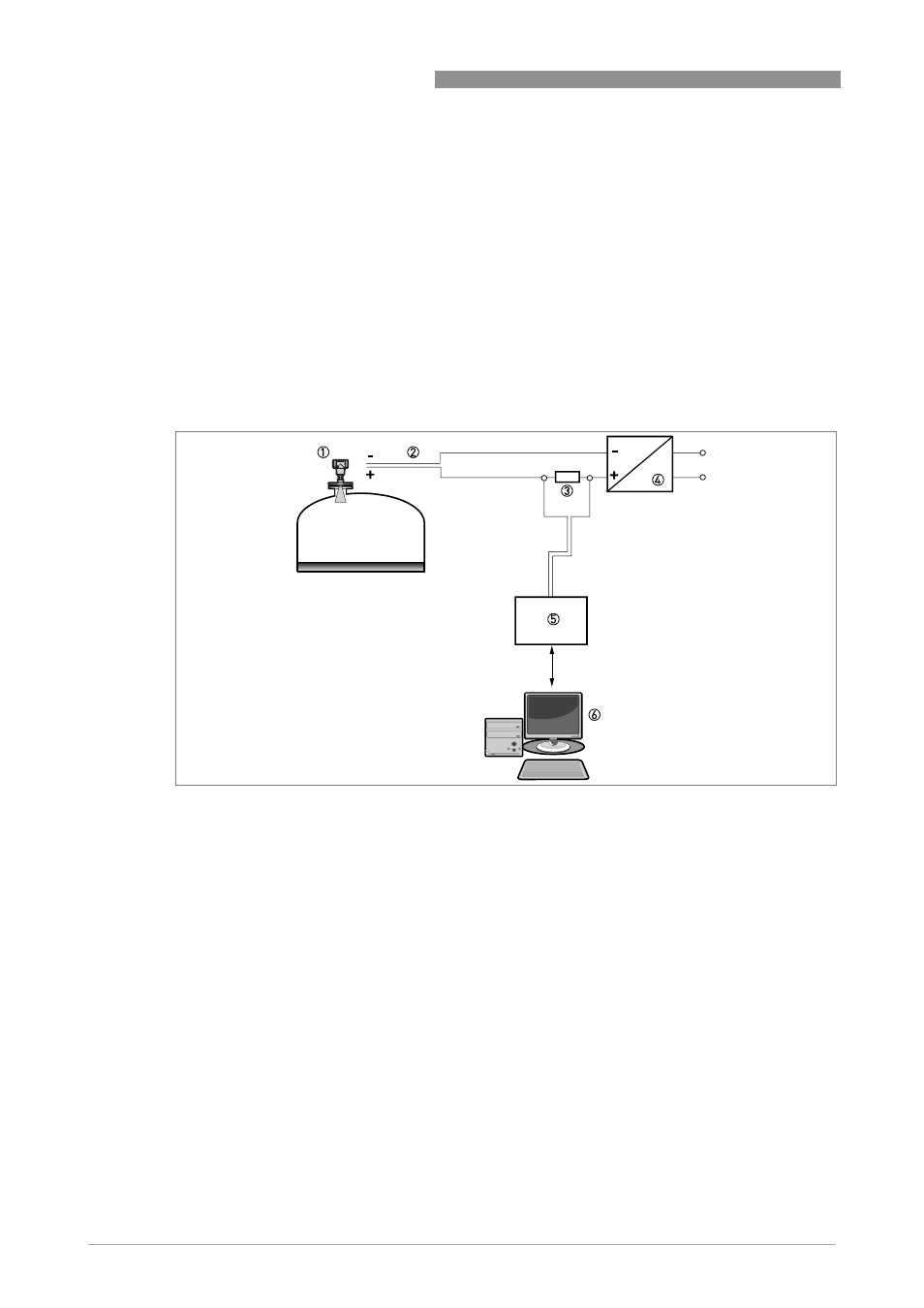

Figure 3-11: Point-to-point connection (non-Ex)
1 Address of the device (0 for point-to-point connection)
2 4...20 mA + HART
®
3 Resistor for HART ® communication
4 Power supply
5 HART
® converter
6 HART ® communication software
