CONCENTRATION MEASUREMENT
3
11
OPTIMASS
www.krohne.com 01/2014 - 4000733002 - AD OPTIMASS Concentration R04
temperature squared coefficient
A
x (temperature - 20) 2
Where:
CCF2 = density of Product
A
at 20°C / 70°F
CCF3 = temperature coeffient
A
CCF4 = temperature squared coefficient
A
The density of Product B depends on the type of product. For ease of programming, the values of
water are included in the software. Therefore, if Product B is pure water or town water, no data
for Product B is required. Select either Pure Water or Town Water in menu C2.4.5 or C2.5.5
If Product B is not water, select Other in menu C2.4.5 or C2.5.5. To calculate the density of
Product B with changes in temperature, use the formula:
Product B = density of Product
B
at 20°C / 70°F + temperature coefficient
B
x (temperature - 20) +
temperature squared coefficient
B
x (temperature - 20) 2
Where:
CCF6 = density of product
B
at 20°C / 70°F
CCF7 = temperature coefficient
B
CCF8 = temperature squared coefficient
B
3.2.10 Concentration flow

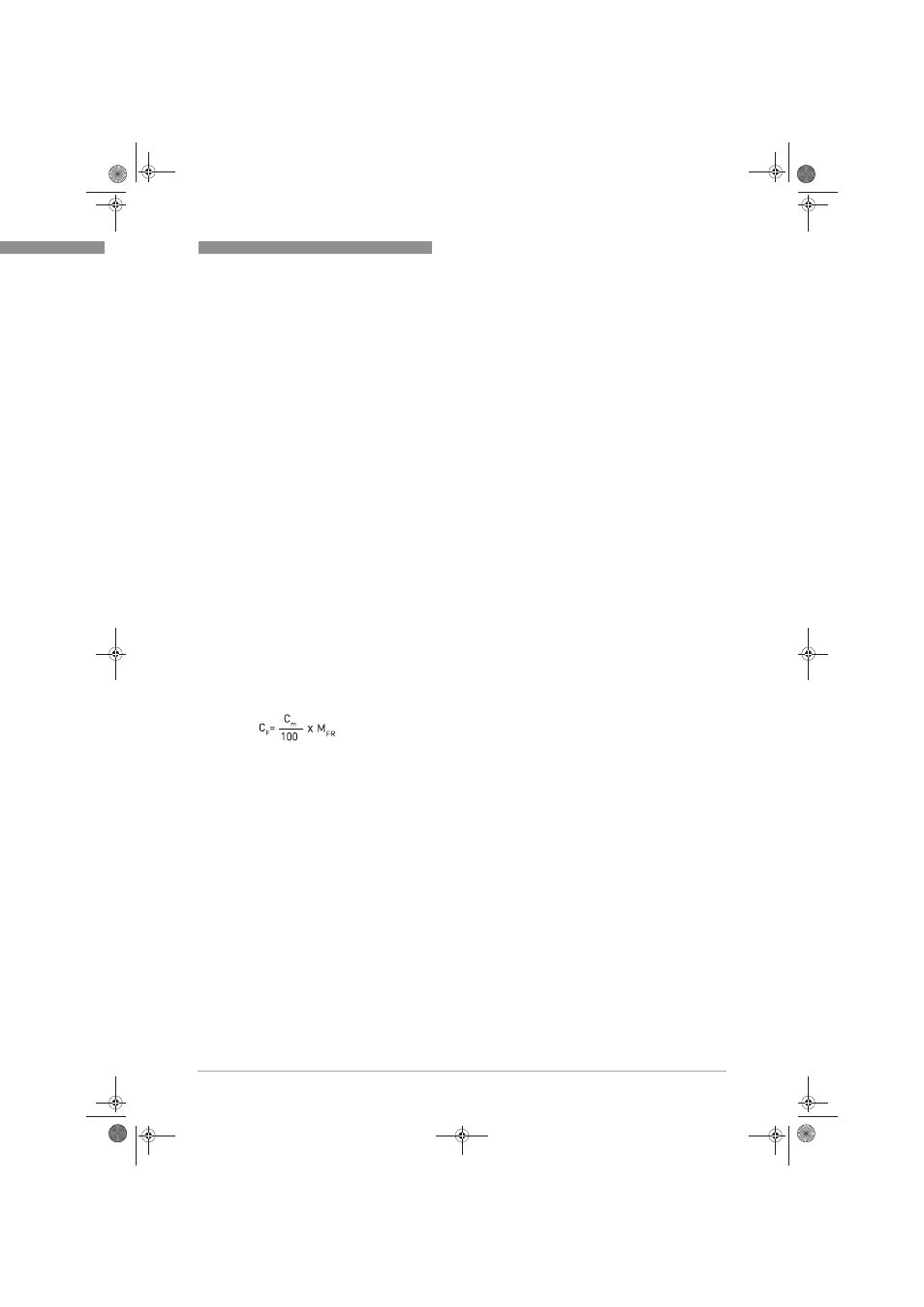

Concentration flow is calculated using the formula:
Concentration total is the accumulation of concentration flow over time
In all general concentration modes, use C2.2.3 or 2.3.3 to select which component in the
concentration to measure.
3.3 Suspensions
A suspension is a solid suspended in a carrier. The solid does not dissolve into the carrier and
the density does not change with temperature. Product B (carrier) can be set to water and so the
solid density should be entered as Product A.
C
F
concentration flow
C
M
concentration by mass
M
FR
mass flow rate
