INSTALLATION
14
WATERFLUX 3000
www.krohne.com 06/2013 - 400162663 - HB WATERFLUX 3000 R04 en
3.6 Installation conditions
3.6.1 Inlet and outlet
3.6.2 T-section
DN 25...300

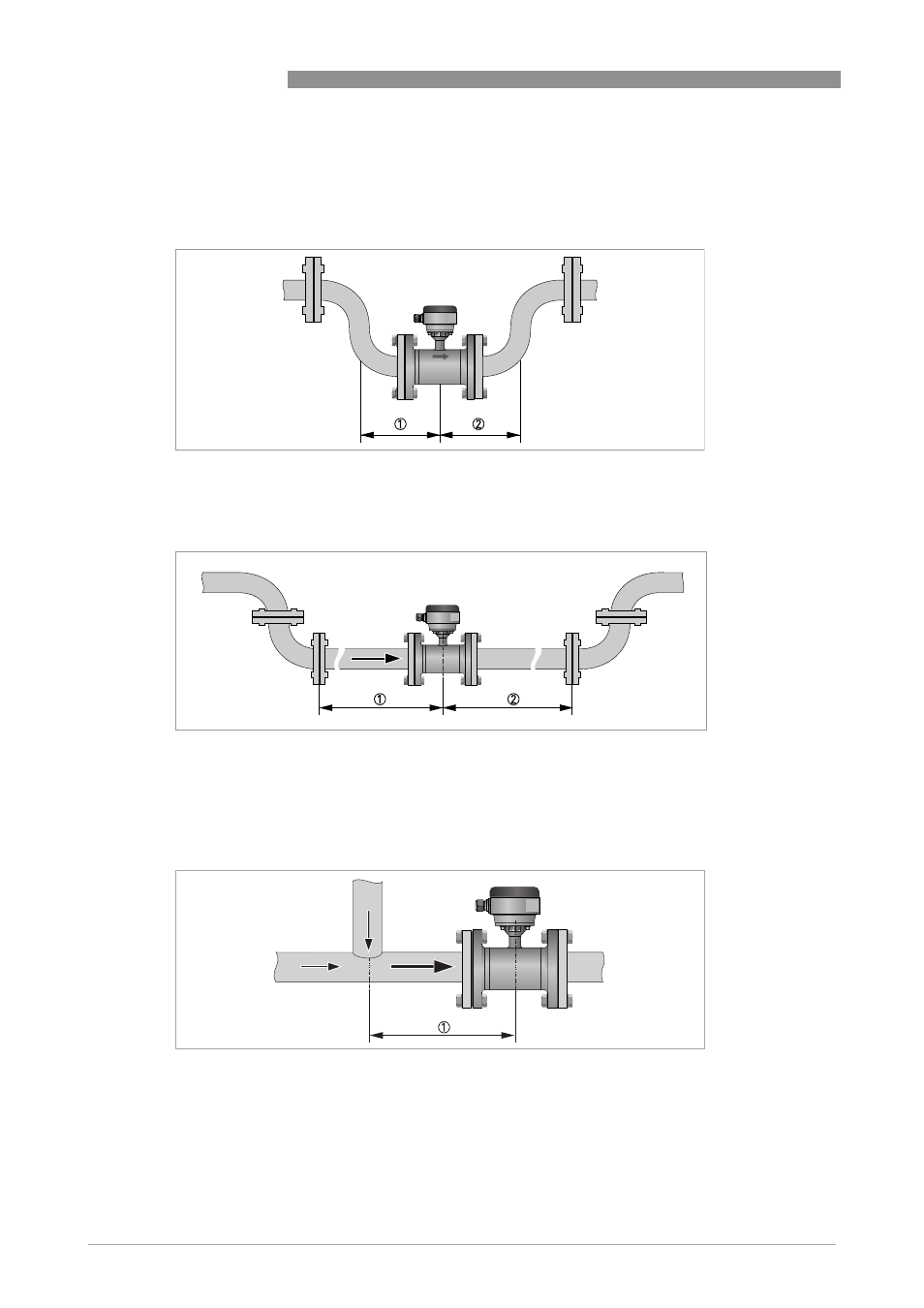

Figure 3-4: Recommended inlet and outlet
1 Inlet: ≥ 0 DN
2 Outlet: ≥ 0 DN
DN350...600
Figure 3-5: Minimal inlet and outlet
1 Inlet: ≥ 3 DN
2 Outlet: ≥ 1 DN
Figure 3-6: Distance behind a T-section
1 DN25...300: 0 DN
& DN350...600: ≥ 3 DN
