ELECTRICAL CONNECTIONS
3
15
TIDALFLUX 2300 F
www.krohne.com 06/2013 - 4002489402 - QS TIDALFLUX 2300 R02 en
3.5 Signal cable B (type BTS 300), construction
• Signal cable B is a triple-shielded cable for signal transmission between the measuring
sensor and signal converter.
• Bending radius: ≥ 50 mm / 2"
3.6 Signal cable A (type DS 300), construction
• Signal cable A is a double-shielded cable for signal transmission between the measuring
sensor and signal converter.
• Bending radius: ≥ 50 mm / 2"

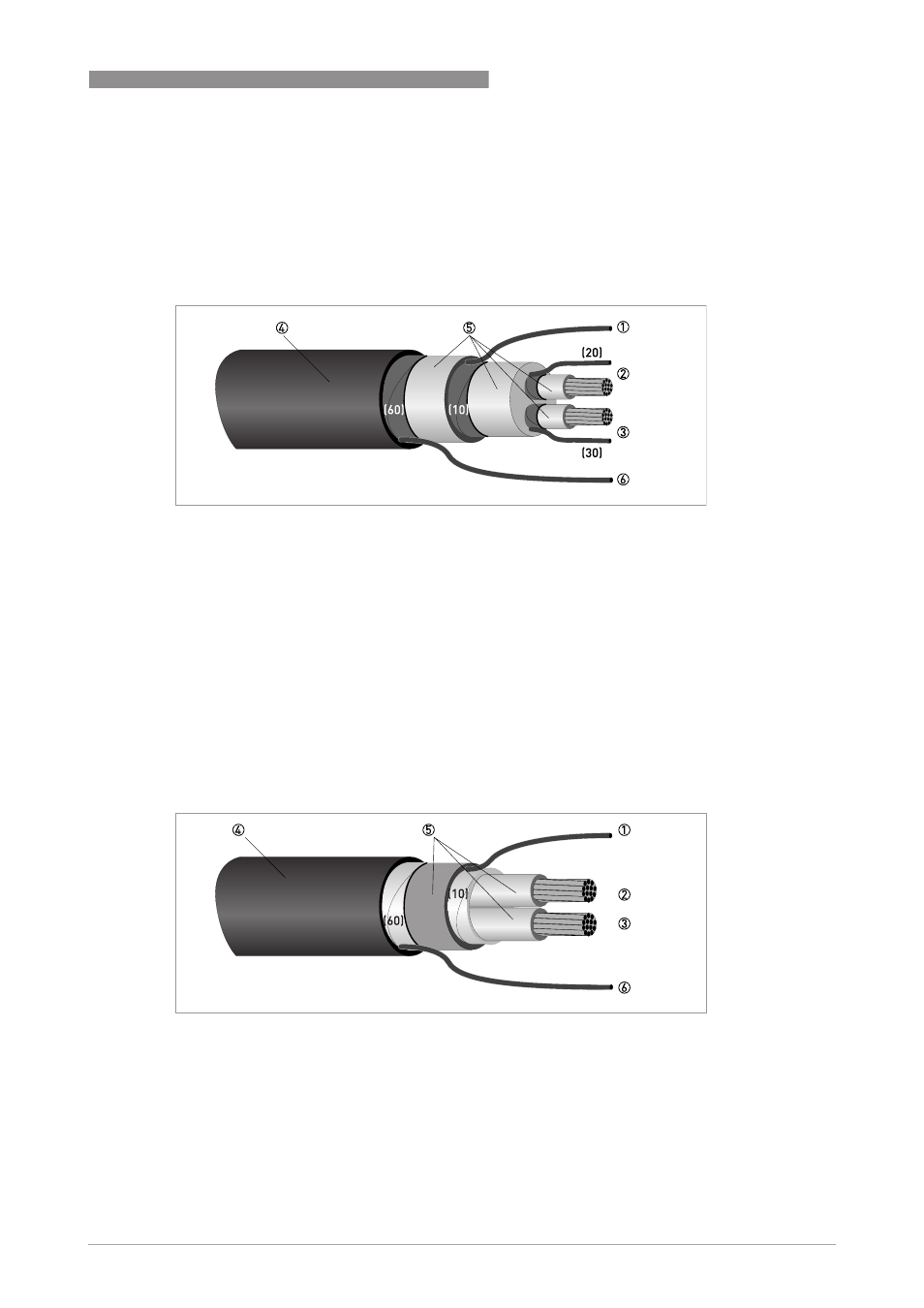

Figure 3-3: Construction of signal cable B
1 Stranded drain wire for the inner shield (10), 1.0 mm 2 Cu / AWG 17 (not insulated, bare)
2 Insulated wire (2), 0.5 mm
2 Cu / AWG 20 with stranded drain wire (20) of shield
3 Insulated wire (3), 0.5 mm 2 Cu / AWG 20 with stranded drain wire (30) of shield
4 Outer sheath
5 Insulation layers
6 Stranded drain wire (6) for the outer shield (60), 0.5 mm
2 Cu / AWG 20 (not insulated, bare)
Figure 3-4: Construction of signal cable A
1 Stranded drain wire (1) for the inner shield (10), 1.0 mm
2 Cu / AWG 17 (not insulated, bare)
2 Insulated wire (2), 0.5 mm 2 Cu / AWG 20
3 Insulated wire (3), 0.5 mm
2 Cu / AWG 20
4 Outer sheath
5 Insulation layers
6 Stranded drain wire (6) for the outer shield (60)
