MOUNTING ADAPTER FAW/RTW 150H
DESCRIPTION. The Model MA FAW/RTW 150H Mounting Adapter includes an adapter plate and mounting
screws that allow a 150W RTW power supply to be easily substituted for a horizontally-mounted 150W FAW power
supply. Mount the adapter plate to the RTW power supply using the screws provided (see Figure 1), then install the
adapter plate in place of the FAW power supply using the screws that previously secured the FAW power supply.

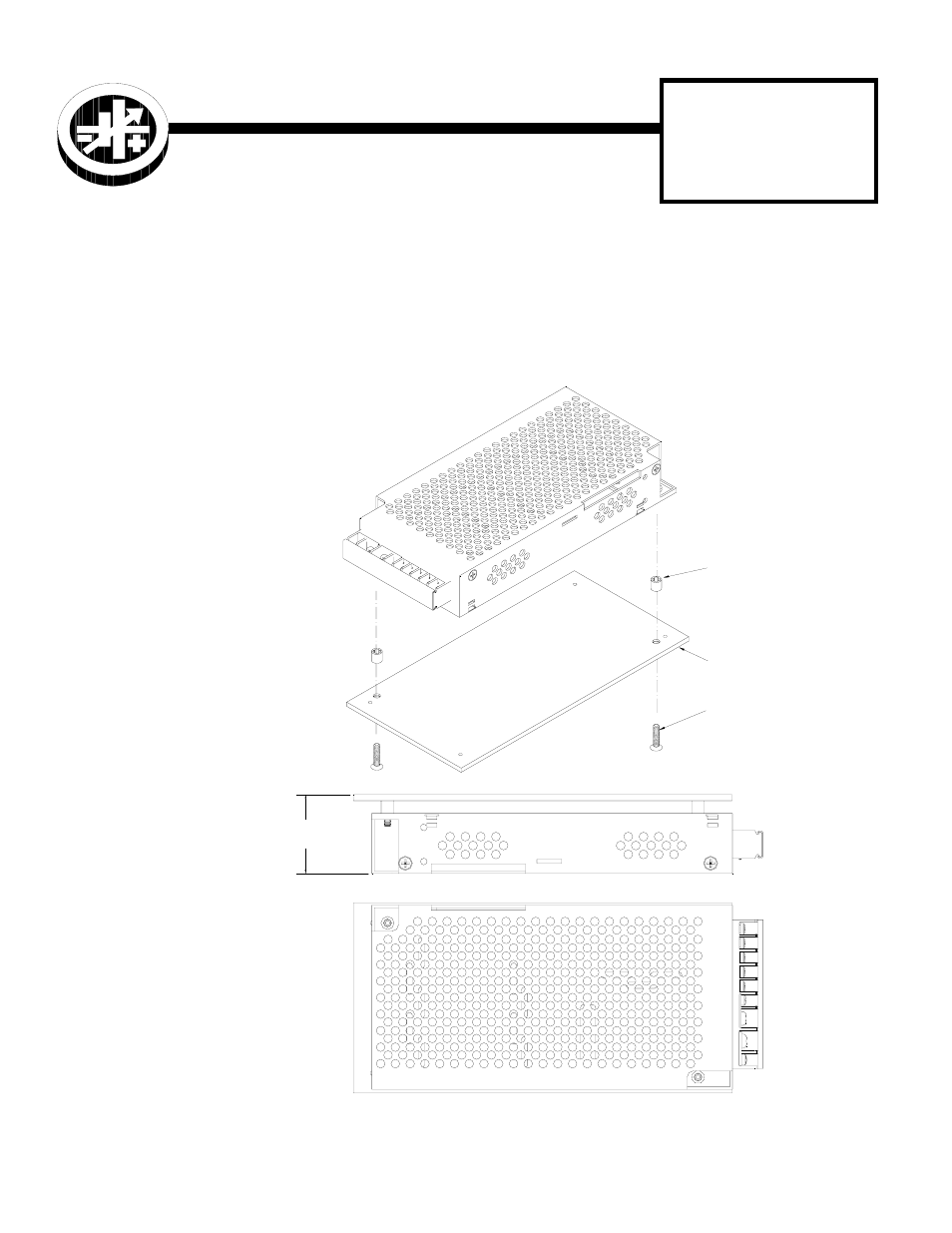

FIGURE 1. ADAPTER PLATE INSTALLATION
3043151
1.550 IN.
[39.37 MM]
A
A
B
B
B
B
NOTES:
1. MOUNT ADAPTER
PLATE TO RTW
POWER SUPPLY AT
HOLES "A" USING
TWO SCREWS AND
SPACERS PROVIDED.
SPACERS ARE
NEEDED TO ENSURE
MAX PENETRATION
OF SCREWS DOES
NOT EXCEED 0.24 IN.
(6MM).
2. INSTALL ADAPTER
PLATE WITH RTW
POWER SUPPLY
ATTACHED USING
HARDWARE
PREVIOUSLY USED TO
MOUNT FAW POWER
SUPPLY (NOT
SUPPLIED).
SCREW (2)
P/N 101-0493
(M4 X 15 FLPO)
SPACER (2)
P/N 104-0388
(0.18 IN. I.D.,
0.25 IN. O.D.
0.25 IN. LG.)
ADAPTER PLATE
P/N 128-2292
