KEPCO MA FAW/RKW 50V - Manual

©2007, KEPCO, INC
Data subject to change without notice
228-1640 081507
I N S T R U C T I O N S H E E T
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11355 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
MA
50V
FAW/RKW
MOUNTING ADAPTER FAW/RKW 50V
DESCRIPTION. The Model MA FAW/RKW 50 Mounting Adapter includes an adapter plate and mounting screws
that allow a 50W RKW power supply to be easily substituted for a vertically-mounted 50W FAW power supply.
Mount the adapter plate to the RKW power supply using the screws provided (see Figure 1), then install the adapter
plate in place of the FAW power supply using the screws that previously secured the FAW power supply.

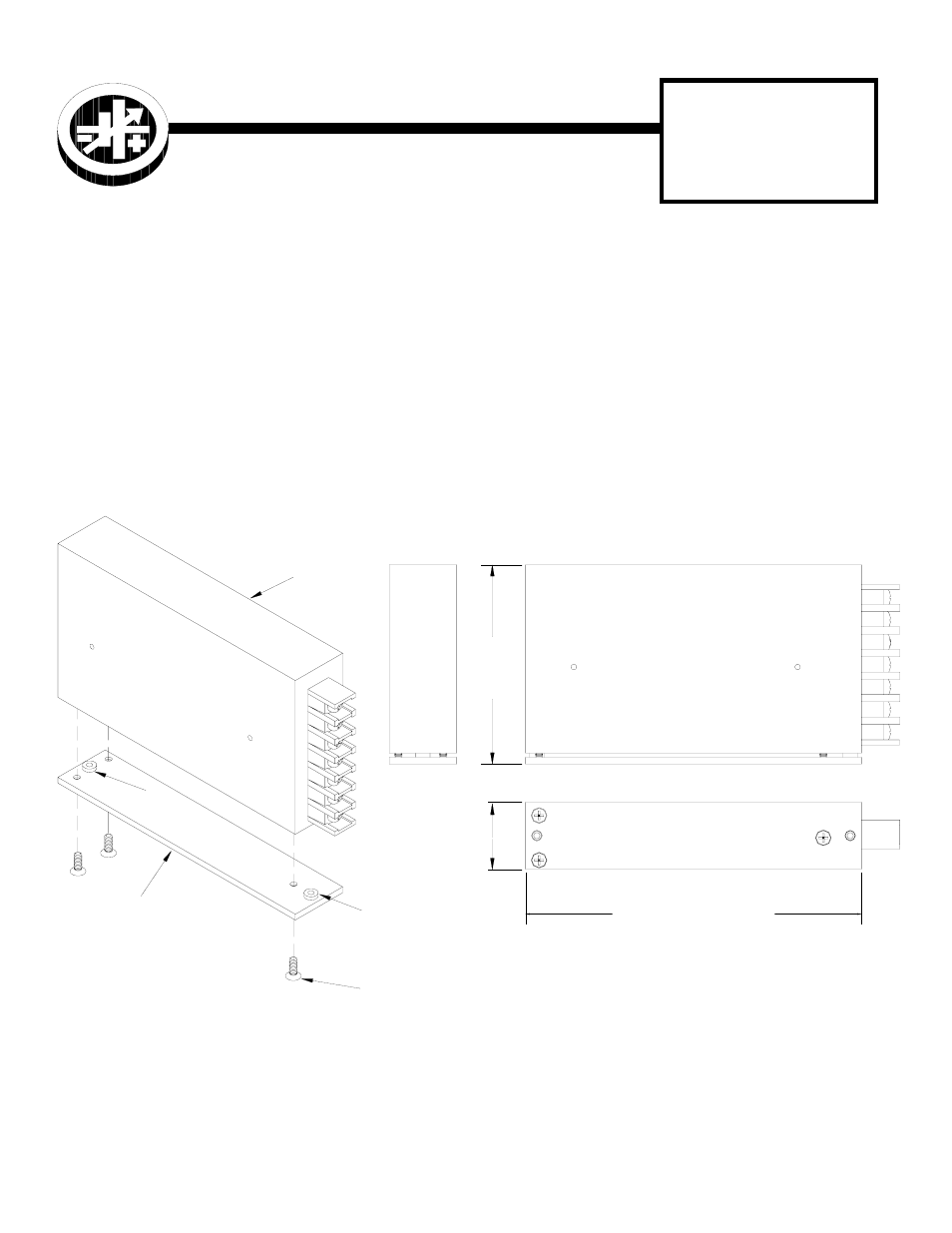

FIGURE 1. ADAPTER PLATE INSTALLATION
3.510
[89.15]
1.181
[30.00]
5.906 [150.00]
A
A
1. MOUNT ADAPTER PLATE TO RKW USING THREE SCREWS AS SHOWN.
2. INSTALL ADAPTER PLATE WITH RKW ATTACHED USING "A" HOLES
AND TWO SCREWS PREVIOUSLY USED TO MOUNT FAW POWER
SUPPLY (NOT SUPPLIED).
RKW 50W
ADAPTER PLATE
SCREW (3)
P/N 101-0448
(M3 X 10MM, FLPH) 3043248
NOTE:
MAX. PENETRATION AT "A" (SCREW 4-40)
MUST NOT EXCEED 5MM.
SEE NOTE.
SEE NOTE.
