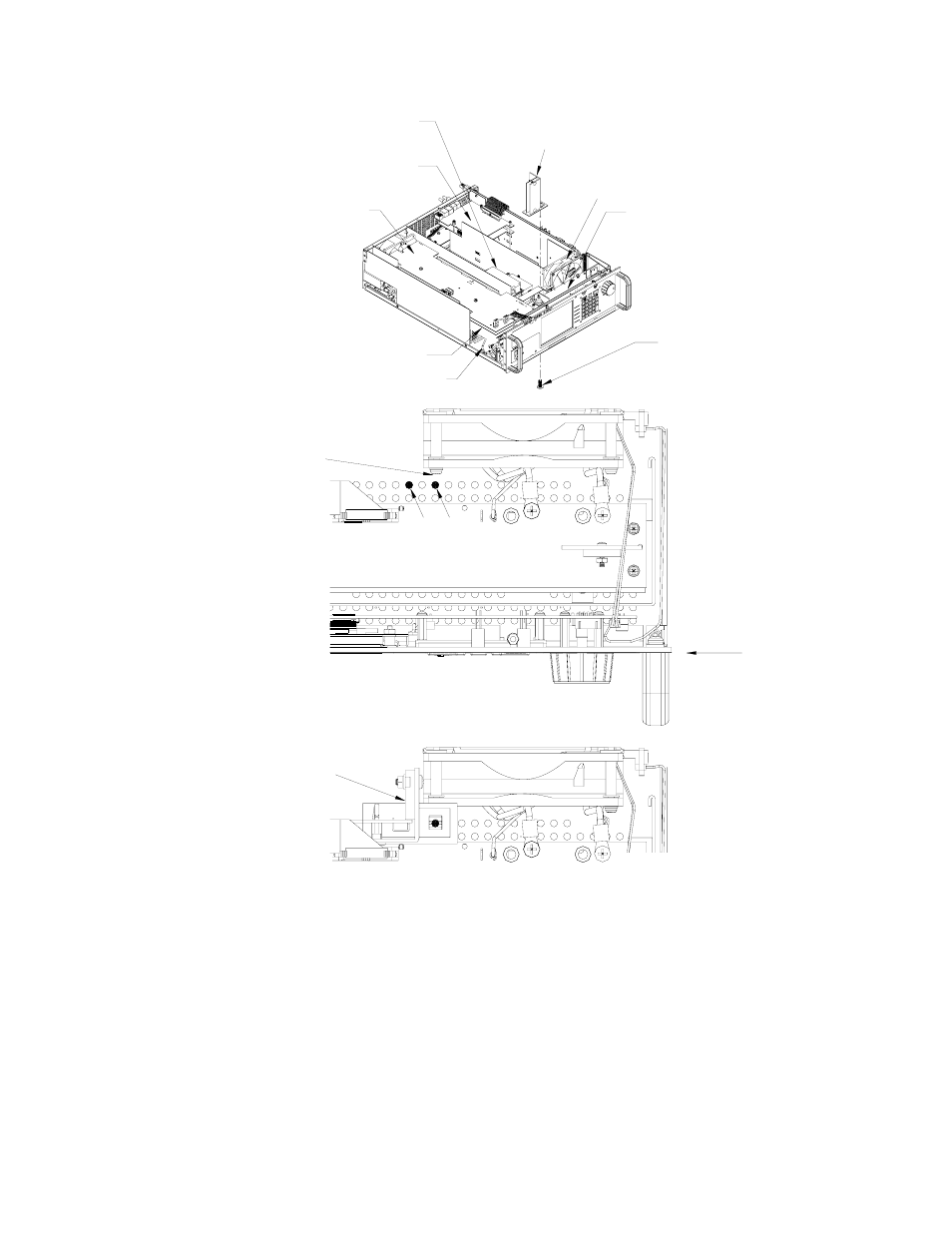

FIGURE 2. BOP 1KW COMPONENT LOCATIONS
3. Install the 4-pin cable assembly (P/N 118-1266) on Transition Circuit A7A3J3 of the PCB (see Figure 1). Route
the cables as shown by Figure 6. This cable has three (3) unterminated wires. Determine the needed length,
cut the wire and remove the insulated sleeving (approximately 0.15"), then solder each wire to the indicated
point (see Figure 3 for A4A8 component locations and Figure 6 for cable routing):
• red wire to A4A8D1 Cathode
• black wire to A4A8D1 Anode
• white wire to A4A8TP2
DETAIL "B"
(PARTIAL TOP VIEW, TYPICAL)
A7A3 INSTALLED
DETAIL "A"
(PARTIAL TOP VIEW)
A7A3 SCREW LOCATION
3043641
TRANSITION
CIRCUIT
A7A3
FAN MOUNTING
SCREW
FRONT
PANEL
A B
(SEE NOTE.)
CHASSIS GROUND CONNECTION
A4A1 ASSEMBLY
SCREW, TPTH,
8-18 X 0.625 IN.
KEPCO P/N 101-0328
TRANSITION CIRCUIT
ASSEMBLY A7A3
(SEE DETAILS "A" AND "B")
AUXILIARY
POWER SUPPLY A5
A2A5 ASSEMBLY
(SEE FIGURE 5.)
A4A3 ASSEMBLY
(SEE FIGURE 6,)
A4A8 ASSEMBLY
(SEE FIGURE 4.)
OUTPUT MODULE
(A2) FAN)
NOTE:
TO MOUNT TRANSITION
CIRCUIT ASSEMBLY A7A3
INSERT SCREW IN
VENTILATION HOLE
AS FOLLOWS:
FOR MG MODELS: USE
HOLE A (IN LINE WITH FAN
MOUNTING SCREW).
FOR GL MODELS: USE
HOLE B
(See Note)
NOTE: For flush mounting of
chassis in rack,
contact Kepco
