4. MODIFIED BOP SPECIFICATIONS
Bandwidth (DC to f-3dB, Nominal Resistive Load)
Voltage Mode: 3.4 KHz Current Mode: 2.3 KHz
Rise/Fall time (10%-90%, Nominal Resistive Load)
Voltage Mode: 74 µS Current Mode: 106 µS
Slew Rate
Voltage Mode: 0.54V/ µS Current Mode: 0.21A/ µS
Recovery at Step Load
Voltage Mode: 110 µS(No Load - Nominal Load)
Current Mode: 110 µS (Short-circuit - Nominal Load)

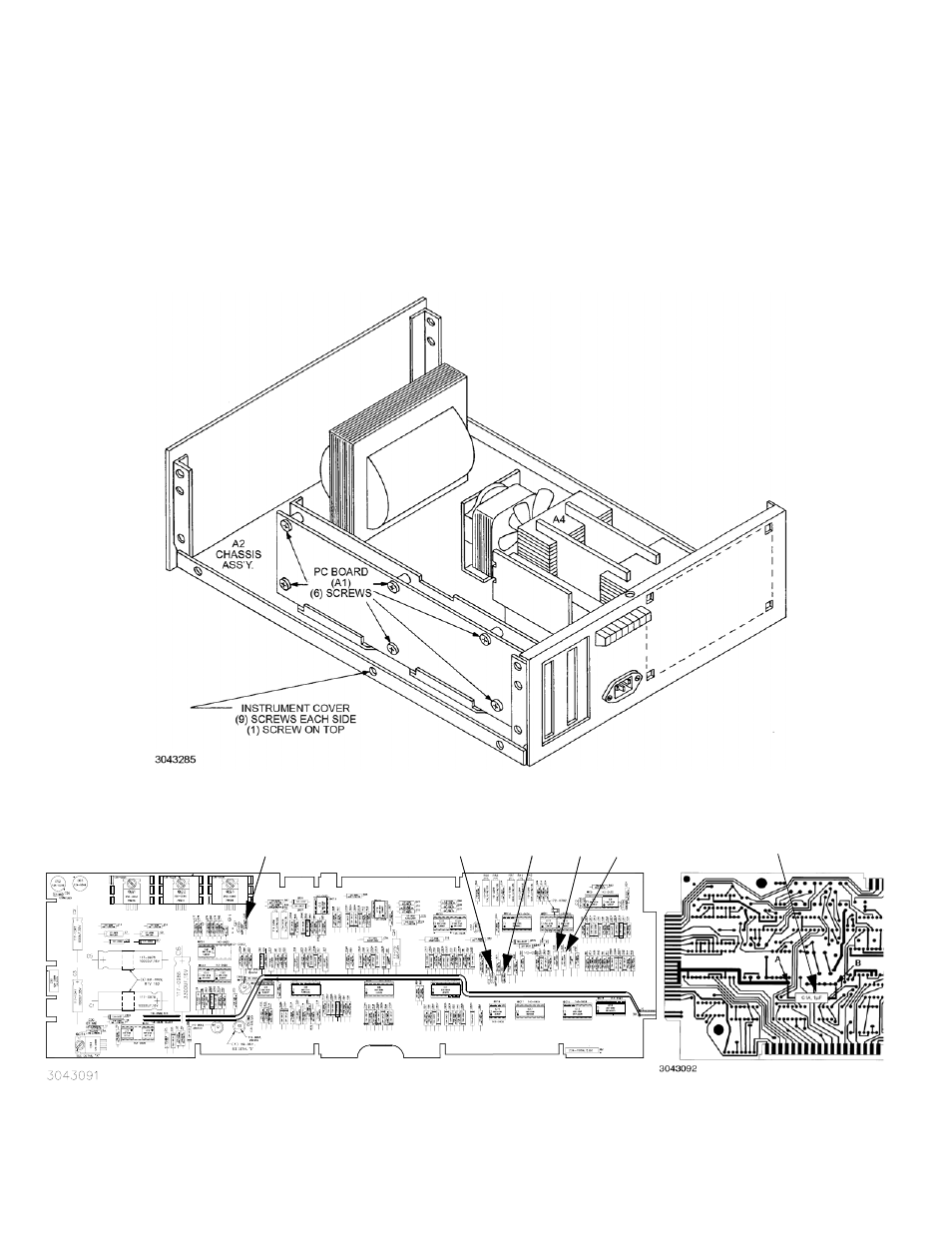

FIGURE 1. BOP DISASSEMBLY
FIGURE 2. A1 BOARD COMPONENT LOCATION
C1A C22 C25 C14 C35
SOLDER SIDE
C21
