KEPCO KIT 219-0497, Cable Kit (Parallel two Units) for RTW 300W Series User Manual
Cable, Kepco

©2012, KEPCO, INC
Data subject to change without notice
228-1554 REV
1
050312
I N S T R U C T I O N S H E E T
KEPCO
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102
http://www.kepcopower.com email: [email protected]
An ISO 9001 Company.
CABLE
219-0497
KIT
CABLE KIT NO. 219-0497
DESCRIPTION.
This cable kit provides power fail and auxiliary function connector terminations for the Kepco
Model RTW 300W Series switching power supplies. The kit consists of two cables, the power fail cable is one meter
long, and has the power supply mating connector wired to one end, and unterminated wires at the other end (see
Figure 1). The auxiliary function cable is 12 inches long, and has mating connectors that correspond to CN2 and
CN3 of the RTW 300W power supply. The auxiliary cable is used for connecting two units in parallel.

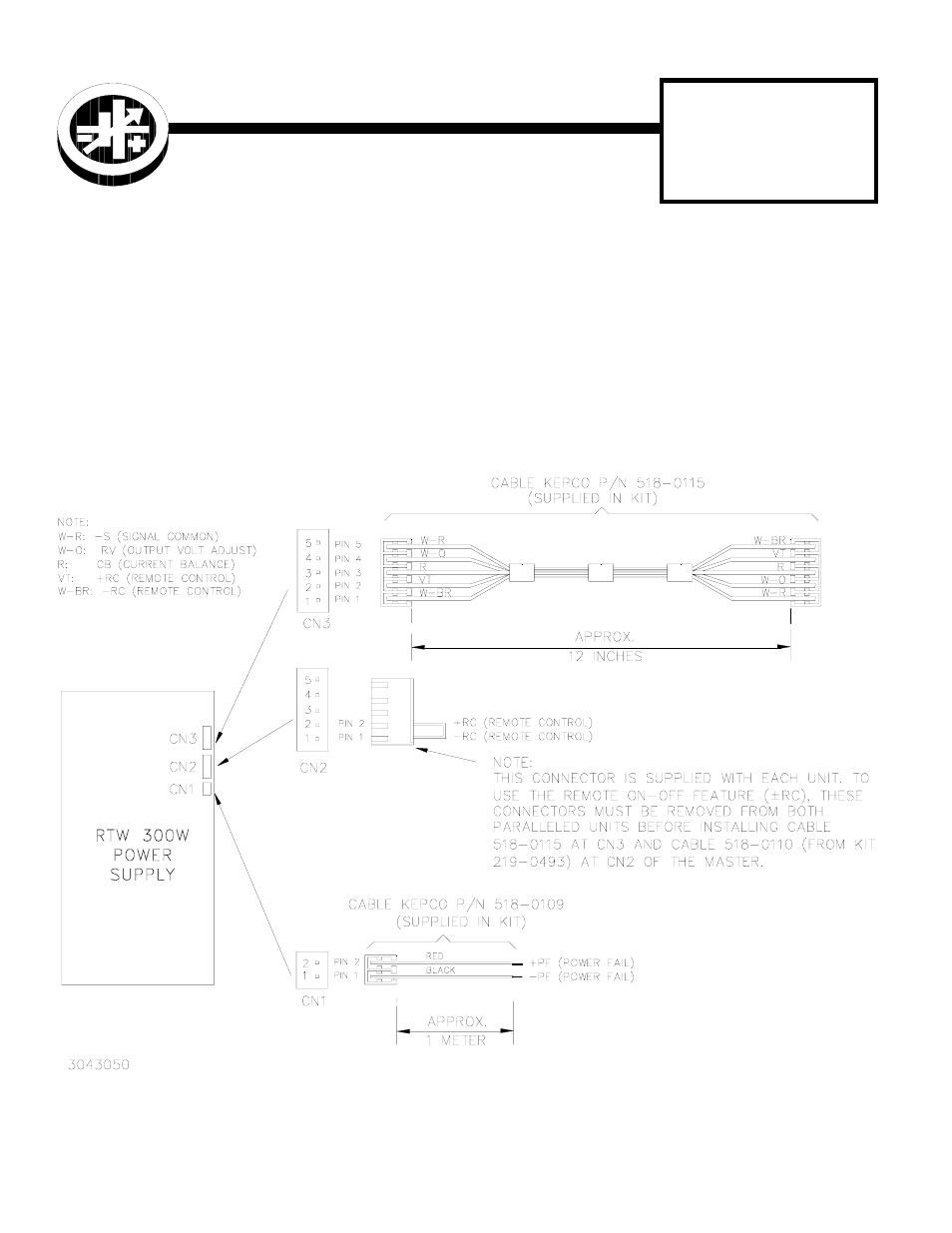

FIGURE 1. CABLE KIT INSTALLATION
