KEPCO KIT 219-0486, Cable Kit for MTW 30W Series - Manual

©2005, KEPCO, INC
Data subject to change without notice
229-1538 021606
I N S T R U C T I O N S H E E T
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
CABLE
219-0486
KIT
CABLE KIT NO. 219-0486
DESCRIPTION. This cable kit provides a-c input and d-c output terminations for the Kepco Model MTW 30W
Series switching power supplies. The kit consists of two cables, one meter long, each having the power supply mat-
ing connectors wired to one end, and unterminated wires at the other end (see Figure 1).

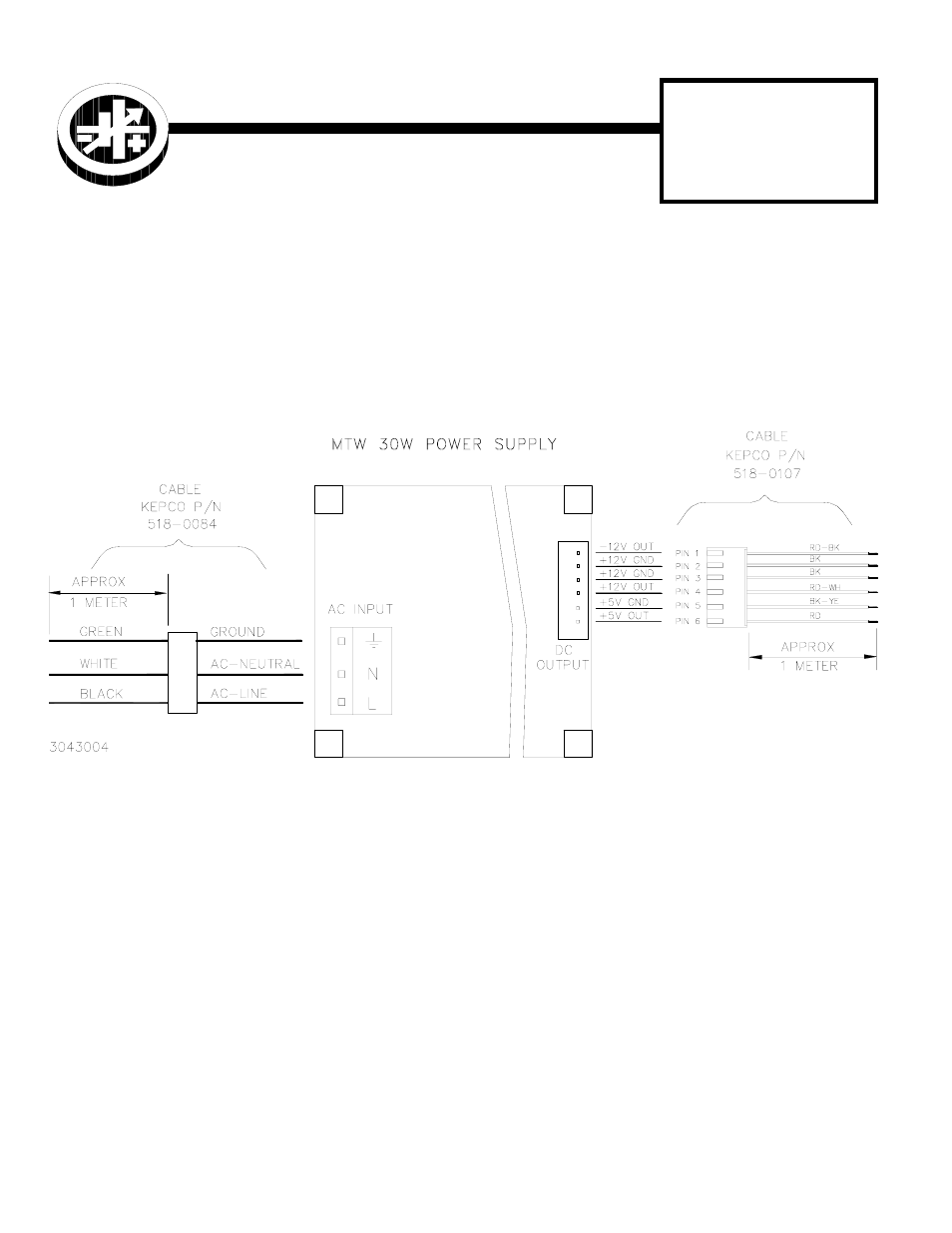

FIGURE 1. CABLE KIT INSTALLATION
