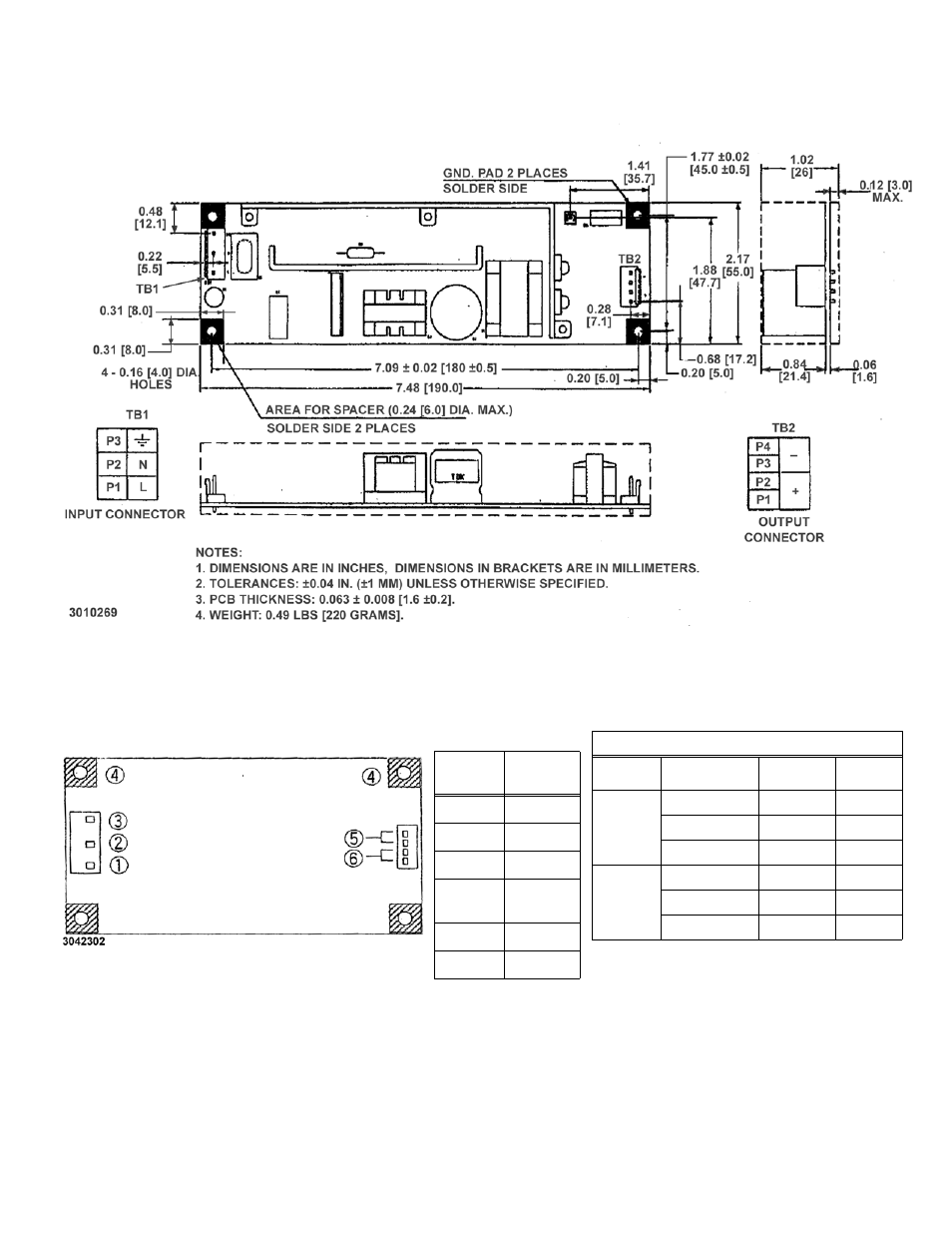

FIGURE 4. JBW 50W MECHANICAL OUTLINE DIAGRAM
FIGURE 5. INPUT/OUTPUT CONNECTIONS
Termi-
nal
Function
1 Input L
2 Input N
3 Ground
4 Ground
Pad
5 Output (-)
6 Output (+)
Mating Connectors(4)
Connector Terminal Pin
Socket
Housing
MFR
Input
SVH-21T-P1.1 VHR-5N
JST(1)
T101 H101-05 LCE(2)
50539-8100 51144-0500 MLX(3)
Output
SVH-21T-P1.1 VHR-4N
JST(1)
T101 H101-04
LCE(2)
50539-8100 51144-0400 MLX(3)
(1) JST= Japan Solderless Terminal Mfg. Co.
(2) LCE= Long Chu Electronics Co.
(3) MLX = Molex
(4) O ptional cable kit (P/N 219-0408) includes
one input and one output cable (one meter
long) with mating connectors for TB1 and
TB2, unterminated at other end.
