INPUT POWER: Line (either a-c or d-c source power), Neutral and
Ground (chassis)
VIBRATION: (non-operating, one hour on each one of the three
axes):
5-10 Hz, 10 mm amplitude.
10-55 Hz, 2g acceleration.
SHOCK: (non-operating, one-half sinusoidal pulse, three shocks to
each axis):
Acceleration: 20g
Duration: 11ms +5ms
OPERATING TEMPERATURE: See Figure 4.
STORAGE TEMPERATURE: -40 o C to +75 o C.
OPERATING AND STORAGE RELATIVE HUMIDITY: up to 95%
(wet bulb temp. <35
o
C non-condensing).
FUSE: Quick acting 3.0A, 250V; (5.2 x 20mm), San-O P/N MT4 3A;
Kepco P/N 541-0110.
DIMENSIONS: See Figure 5.
WARRANTY: 5 years.

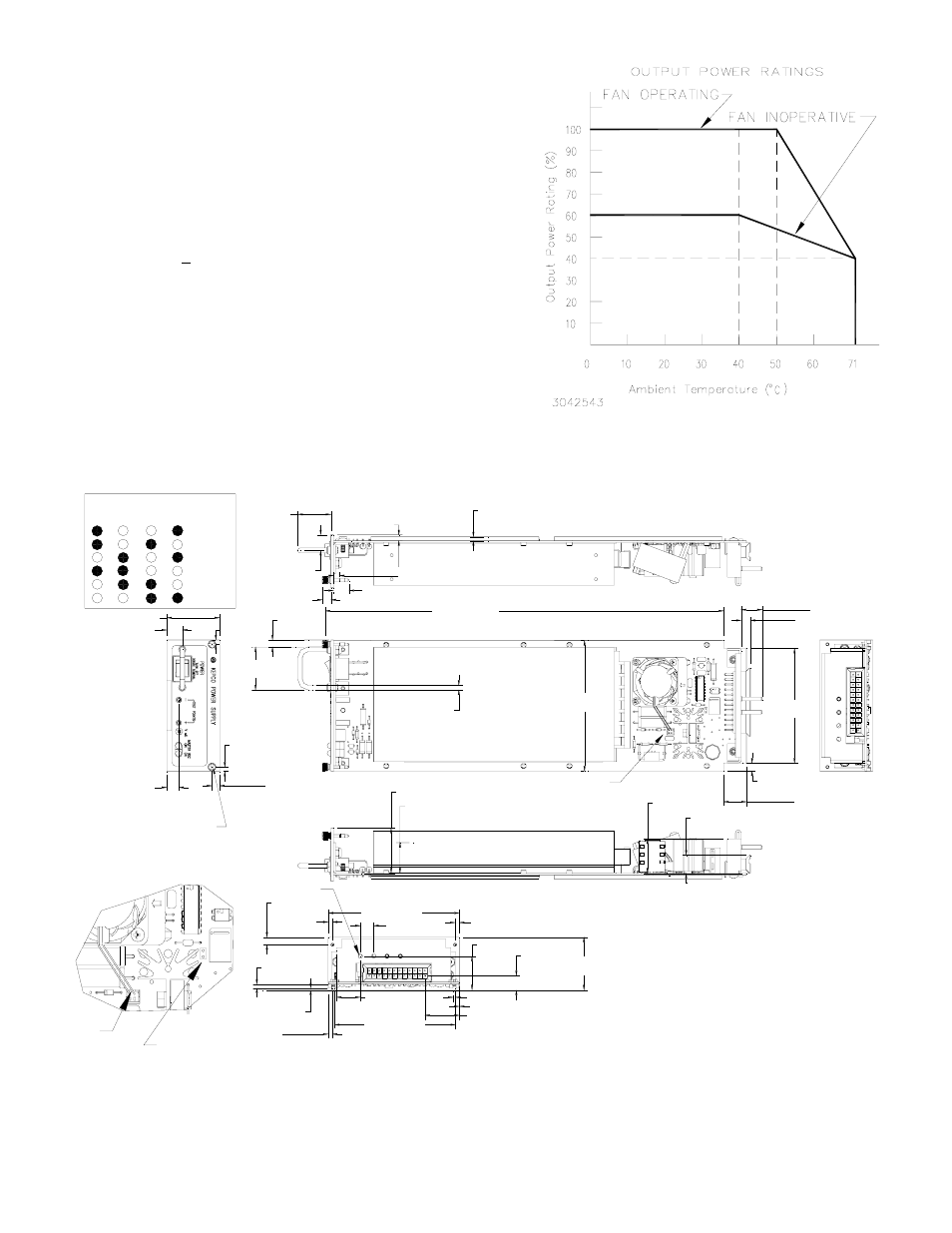

FIGURE 4. % OUTPUT POWER RATING VS.
AMBIENT TEMPERATURE
FIGURE 5. HSF-1U POWER SUPPLY OUTLINE DRAWING
13.050 [331.5]
1.732 [44.0] 0.228 [5.8]
1.088 [27.6]
0.282 [7.2]
0.503 [12.8]
0.190 [4.8]
0.125 [3.2]
0.507 [12.9]
0.140 [3.6]
0.140 [3.6]
0.250 [6.4]
0.507 [12.9]
0.156 [4.0]
0.391 [9.9]
4.295 [109.1]
1.732 [44.0]
0.140 [3.6] 0.140 [3.6]
0.250 [6.4]
0.125 [3.2]
0.133 [3.4]
3.960 [100.6]
0.076 [1.9]
0.066 [1.7]
0.780 [19.8]
0.437 [11.1]
1.108 [28.2]
0.010 [0.3]
1.131 [28.7]
0.471 [12.0]
0.690 [17.5]
0.303 [7.7]
0.750 [19.1]
3.755 [95.4]
4.275 [108.6]
1.474 [37.4]
0.591 [15.0]
1.125 [28.6]
12 VOLTS
5 VOLTS
15 VOLTS
24 VOLTS
28 VOLTS
48 VOLTS
KEY PIN LOCATION
3. MODULE IS KEYED AS SHOWN IN DETAIL
B) PCB 0.063" THK FR-4
1. MATERIAL:
A) BACKPLATE 0.064" THK. ALUM. 5052-H32
C) FRONT PANEL 0.090 THK. ALUM. 6061-T6
2. FINISH:
NOTES:
FRONT PANEL -KEPCO DUAL TONE GRAY
0.996 [25.3]
MAX MOUNTING
TORQUE:
2 IN.-LBS (0.23 N x m)
1.406 [35.7]
0.260 [6.6]
4. DIMENSIONS ARE IN INCHES, [DIMENSIONS IN BRACKETS
ARE IN MILLIMETERS].
5. TOLERANCES (UNLESS OTHERWISE SPECIFIED):
3 PLACES: ±0.005, 2 PLACES: ±0.01, FRACTIONS: ±1/64"
3010254
JP1
SEE DETAIL "A"
DETAIL "A"
6. TO DISABLE FORCED SHUTDOWN UPON FAN
FAILURE, INSERT JUMPER (P/N 172-0382) AS
SHOWN IN DETAIL "B."
JP1
DETAIL "B"
INSERT JUMPER J1
FAN
7. FOR CONVECTION COOLING, DISCONNECT FAN AND
INSERT JUMPER (P/N 172-0382) AS SHOWN IN DETAIL "B."
CONNECTOR
0.191 [4.9]
SEE DETAIL "B"
