3

2. For example, if 1A per click of adjustment is desired,

select the most significant digit (MSD), which yields 1
Amp per click. If finer resolution is desired, select a less
significant digit such as 100mA or 10mA per click (see
Figure 1). NOTE: Leading zeroes are suppressed.
Therefore from 0A to 9A, the MSD shows units of Amps.
From 10A to 99A the MSD shows 10A per digit. Clicks
can be set to a maximum of 10A/click. The adjustment
is continuously variable up to the maximum value for
the selected mode. Choosing a less significant digit
increases the number of turns x 10 per digit.

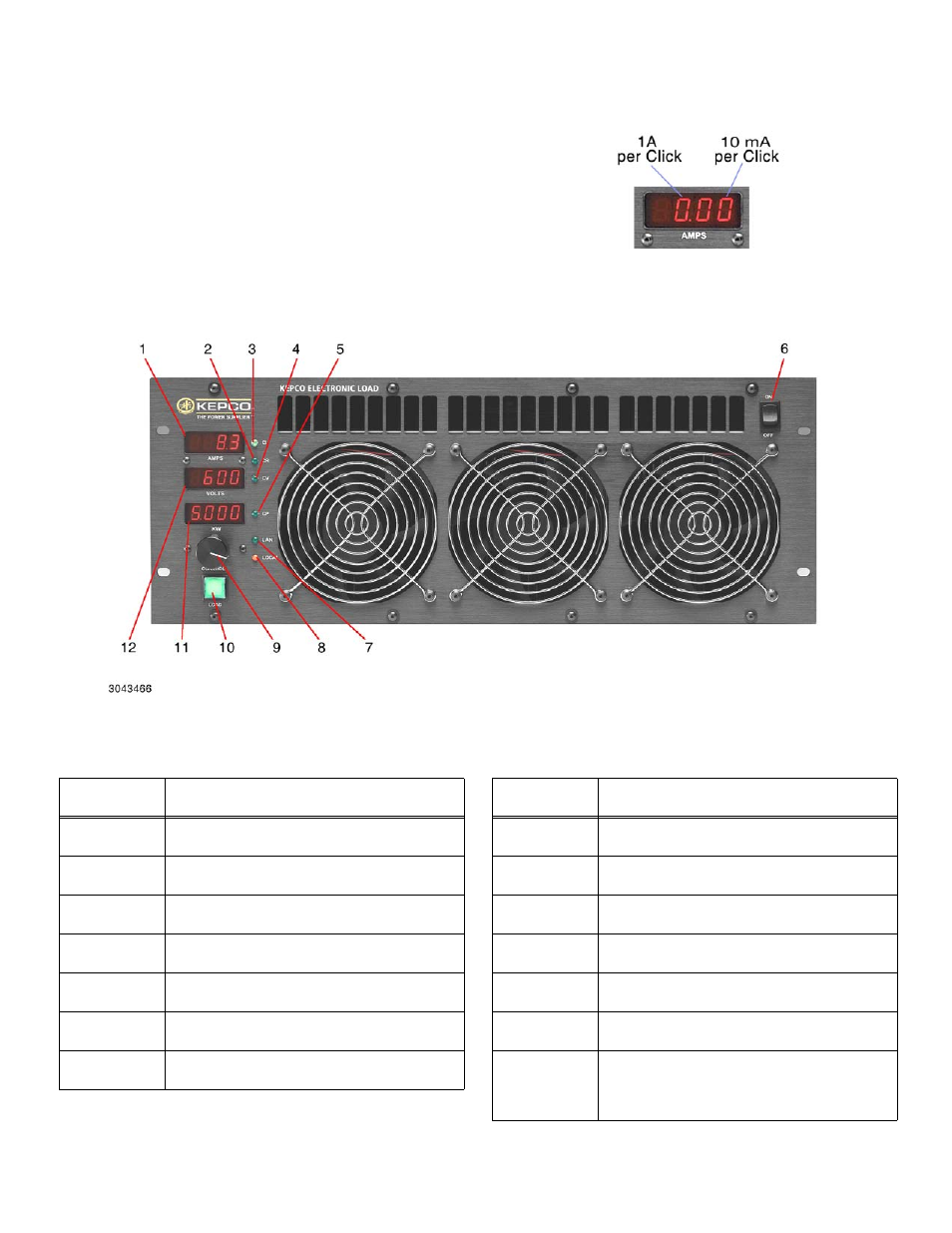

FIGURE 1. ADJUSTING RESOLUTION

FIGURE 2. FRONT PANEL CONTROLS AND INDICATORS

TABLE 2. MODE SELECTION

MODE

INDICATOR

MODE SELECTED

Only CI on

(solid)

CI (Constant Current) mode.

Only CR on

(solid

CR (Resistance) mode.

Only CR on

(blinking)

CS (Conductance) mode.

Only CV on

(solid)

CV (Voltage) mode.

Only CP on

(solid)

CP (Constant Power) mode.

CI, CR, CV and

CP all blinking

Short mode (lowest resistance possible), maximum
current. USE CAUTION prior to setting,

CI, CR, CV and

CP all off

Modes off: Load will not engage, no setpoints are
active and load will not conduct current.

TABLE 3. LOCAL ADJUSTMENTS

MODE

INDICATOR

SETPOINT ADJUSTMENT

when LOAD switch shows green

Only CI on

(solid)

CONTROL sets constant current level in Amperes
as viewed on AMPS display.

Only CR on

(solid

CONTROL sets resistance in Ohms as viewed on
KW display.

Only CR on

(blinking)

CONTROL sets conductance in Siemens (I/E, I in
Amps, E in Volts) as viewed on KW display.

Only CV on

(solid)

CONTROL sets voltage in Volts as viewed on
VOLTS display.

Only CP on

(solid)

CONTROL sets constant power level in kilowatts as
viewed on KW display.

CI, CR, CV and

CP all blinking

Short mode; no adjustment. USE CAUTION prior to
setting.

CI, CR, CV and

CP all off

Modes off; no adjustment. Pressing LOAD switch
causes indicator to blink green, then CONTROL
used to view model, serial number, IP information,
etc.
