DIN RKW-150P
DIN-RAIL MOUNTING KIT
FOR SERIES RKW 150W
DESCRIPTION. Kepco KIT, Model DIN RKW-150P contains a cover, a mounting bracket with left and right preassem-
bled mounting clips and associated hardware used to install RKW Series power supplies on a DIN rail. The “P” suffix is
for mounting the power supply perpendicular to the DIN rail as shown in Figure 1. Outline Dimensions are shown in
Figure 5

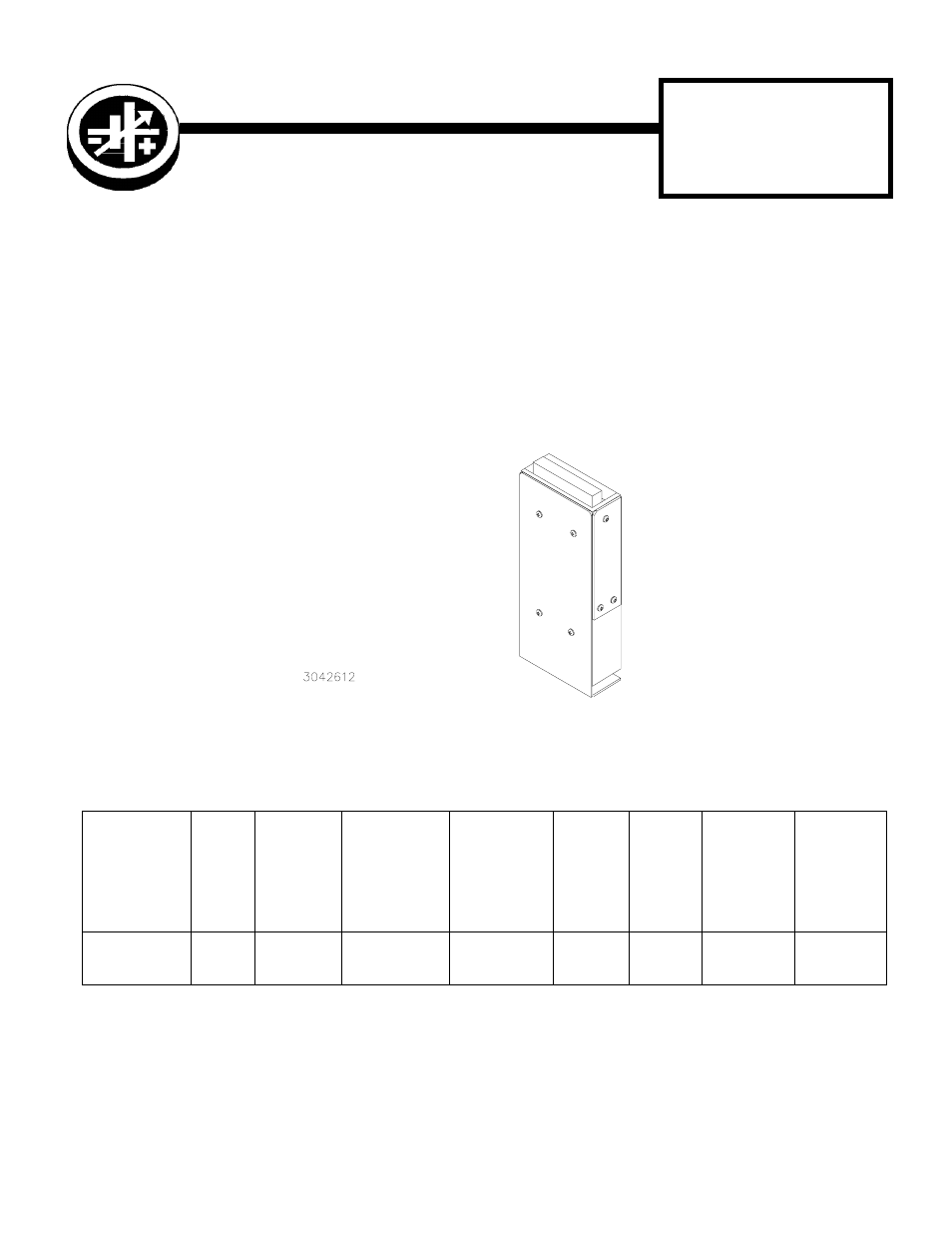

FIGURE 1. P SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART
NO.
MOUNTING
BRACKET
PART NO.
SCREW
(QTY 7)
(Power Supply
To Mounting
Bracket)
PART NO.
WASHER
(QTY 7)
(Power Supply
To Mounting
Bracket)
PART NO.
CLIP
(QTY 2)
PART
NO.
CLIP
PLATE
(QTY 2)
PART
NO.
SCREW
Thread form
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
WASHER
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
DIN RKW-150P
CA 36
128-2124
501-0075
(M4 x 8 FHPH)
103-0017
(NO. 8, INT.
TOOTH)
108-0362
128-1938
101-0443
(4-40 X 1/4
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
