KEPCO DIN KIT RKW-30 (P) - Manual

©2010, KEPCO, INC 1
Data subject to change without notice 228-1483 REV 1
I N S T R U C T I O N M A N U A L
KIT
KEPCO
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 1135 5 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102
http://www.kepcopower.com email: [email protected]
An ISO 9001 Company.
DIN RKW-30P
DIN-RAIL MOUNTING KIT
FOR SERIES RKW 30W

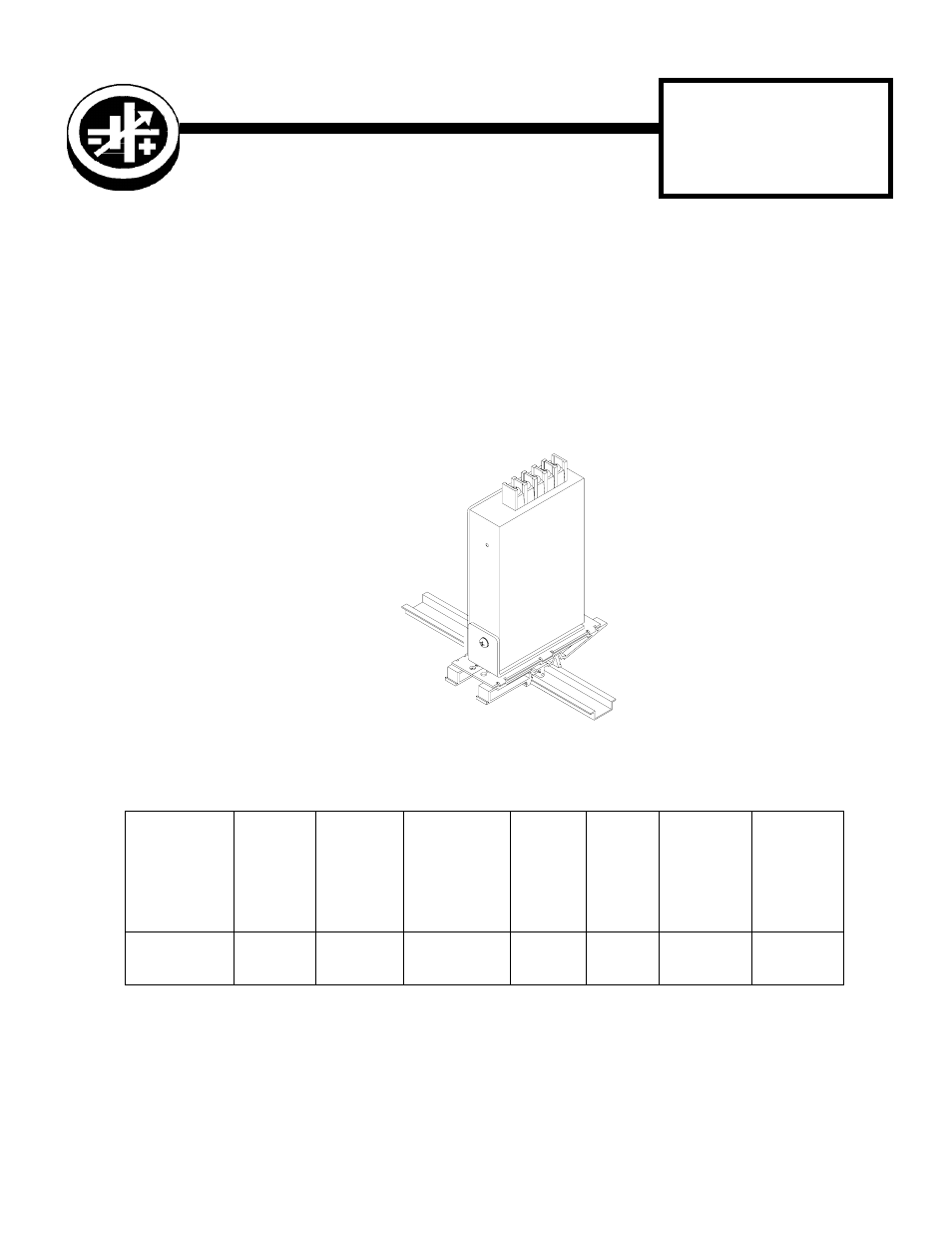

DESCRIPTION. Kepco KIT, Model DIN RKW-30P contains a cover, a mounting bracket with left and right preassem-
bled mounting clips and associated hardware used to install RKW Series power supplies on a DIN rail. The “P” suffix is
for mounting the power supply perpendicular to the DIN rail as shown in Figure 1. Outline Dimensions are shown in
Figure 5.
FIGURE 1. P SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART NO.
MOUNTING
BRACKET
PART NO.
SCREW
(QTY 3)
(Power Supply
To Mounting
Bracket)
PART NO.
CLIP
(QTY 2)
PART
NO.
CLIP
PLATE
(QTY 2)
PART
NO.
SCREW
Thread form
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
WASHER
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
DIN RKW-30P CA 33-R 128-2154
501-0062
(M3 x 8 PHPH)
108-0362 128-1938
101-0443
(4-40 X 1/4
PHPH)
103-0014
(NO. 4, INT.
TOOTH)
3042838
