DIN RAX-300P,
DIN RCW-350P
DIN-RAIL MOUNTING KIT
FOR SERIES RAX 300W AND RCW 350W

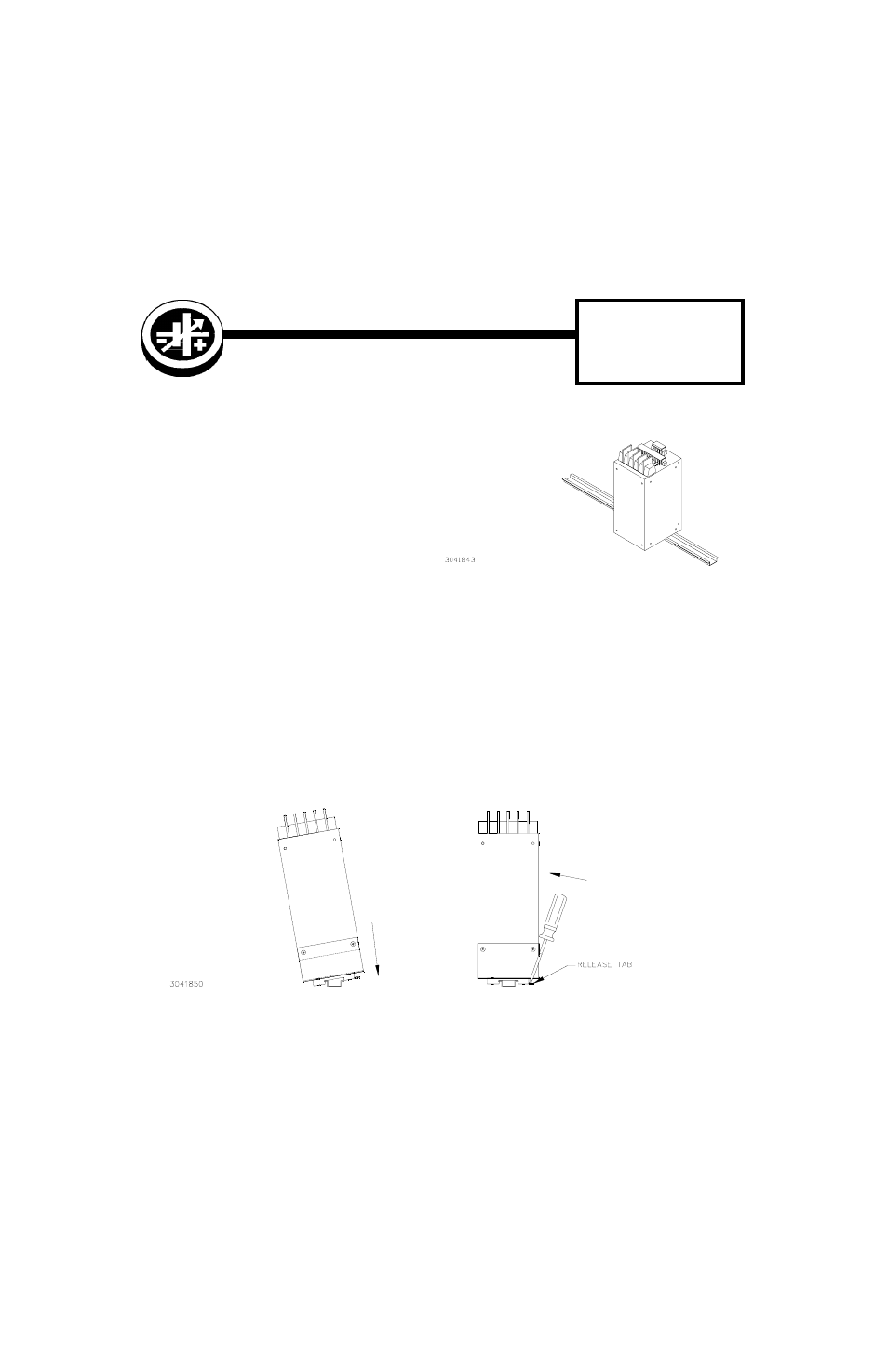

FIGURE 1. P SUFFIX ORIENTATION
INSTALLING KIT. Attach the preassembled mounting plate to the power supply using the hardware supplied (see Fig-
ure 3). The plate may be mounted with the release lever on either side to facilitate removal.
INSTALLING POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of the clip under
one edge of the rail, then snap the other end of the clip into place (see Figure 2A).
NOTE: For applications where the installed power supply may be subject to unusual levels of shock or vibration, the
use of two DIN rail end stops (Kepco P/N 108-0367) is recommended. After installing the power supply on the
rail, the end stops are installed by clearing the DIN rail of other components and sliding the end stops over the
rail. When the end stops are secure against the power supply, tighten the two integral screws of each end stop.
REMOVING POWER SUPPLY FROM DIN RAIL. While grasping the power supply with one hand, use a screwdriver to
apply leverage towards the left as shown in Figure 2B to disengage the clip from the rail. .
FIGURE 2. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL
A -
INSTALLATION
B -
REMOVAL
DESCRIPTION. Kepco Kits, Model DIN RAX-300L
and RCW-350L, each contain a preassembled
mounting plate and associated hardware used to
install RAX 300 Watt and RCW 350 Watt Series
power supplies on a DIN rail. The “P” suffix is for
mounting perpendicular to the long dimension
(length) as shown in Figure 1. Outline dimensions
are shown in Figure 4.
