I N S T R U C T I O N M A N U A L
KIT
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
DIN RAX
-50P
DIN-RAIL MOUNTING KIT
FOR SERIES RAX 50W
DESCRIPTION. Kepco KIT, Models DIN RAX-50P contains a mounting bracket with left and right preassembled
mounting clips and associated hardware used to install RAX 50 Watt Series power supplies on a DIN rail. The “P” suffix
is for mounting the power supply perpendicular to the DIN rail as shown in Figure 1. Outline Dimensions are shown in
Figure 5

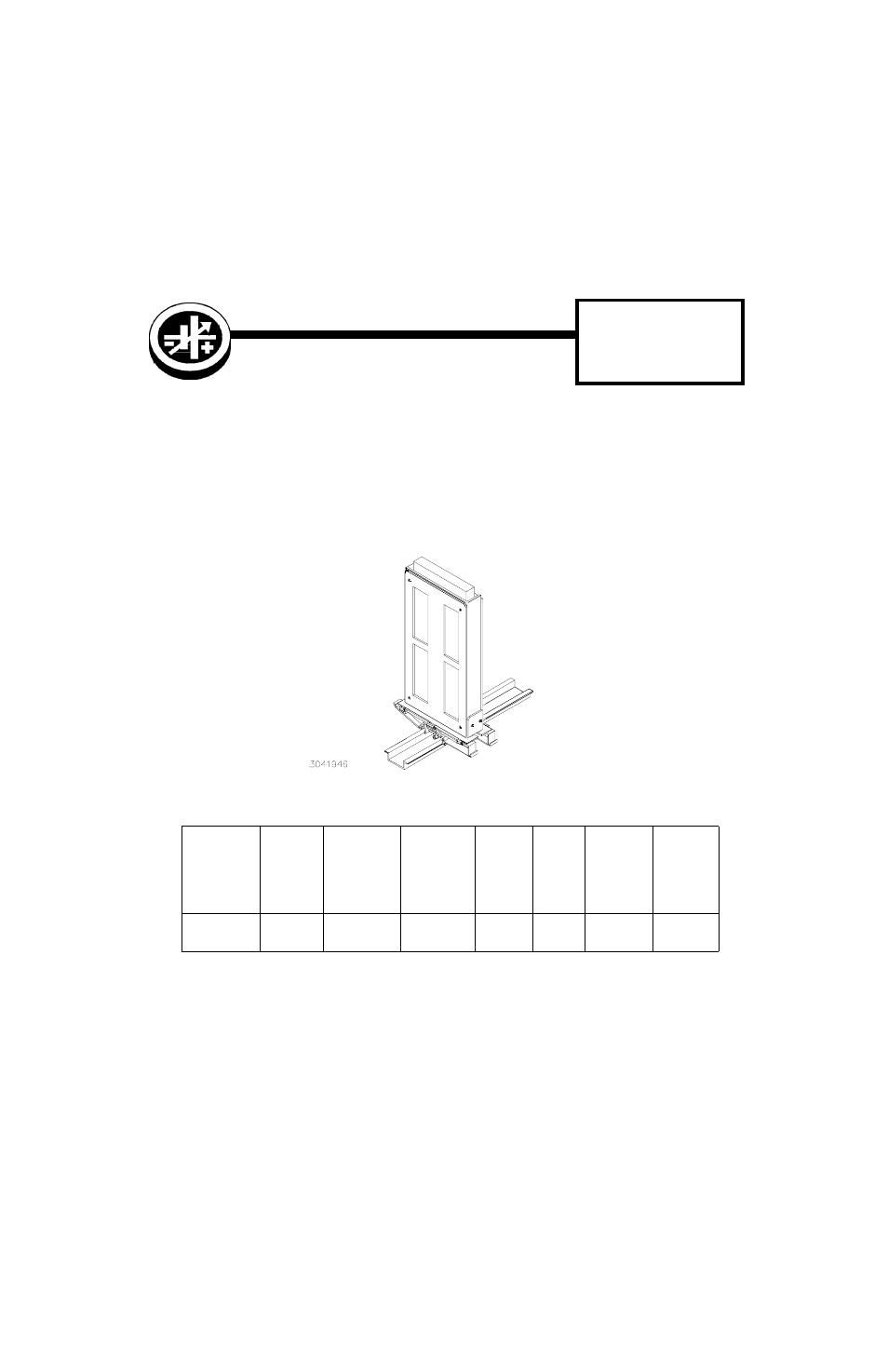

FIGURE 1. P SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
MOUNTING
BRACKET
PART NO.
SCREW
(QTY 6)
(Power Supply
To Mounting
Bracket)
PART NO.
WASHER
(QTY 6)
(Power Supply
To Mounting
Bracket)
PART NO.
CLIP (QTY
2)
PART NO.
CLIP
PLATE
(QTY 2)
PART
NO.
SCREW
Thread form
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
WASHER
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
DIN RAX-50P
128-1991
101-0383
(8-32 X 0.187
PHPH)
103-0017
(NO. 8, INT.
TOOTH)
108-0362
128-1938
101-0443
(4-40 X 1/4
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
