DIN MRW-150L,
-160L, -170L
DIN-RAIL MOUNTING KIT
FOR SERIES MRW 150/151KV, 160/161KV, 170/171KV
DESCRIPTION. Kepco KITs, Models DIN MRW-150L, -160L, and -170L each contain a cover, cable kit, left and right
mounting clips, and associated hardware (see Table 1) used to install MRW Series power supplies on a DIN rail. The
-150L suffix is for MRW 150KV and 151KV Models, -160L is for MRW 160KV and 161KV models and -170L is for
MRW 170KV and 171KV models. The “L” suffix is for mounting along the long dimension (length) as shown in Figure 1.

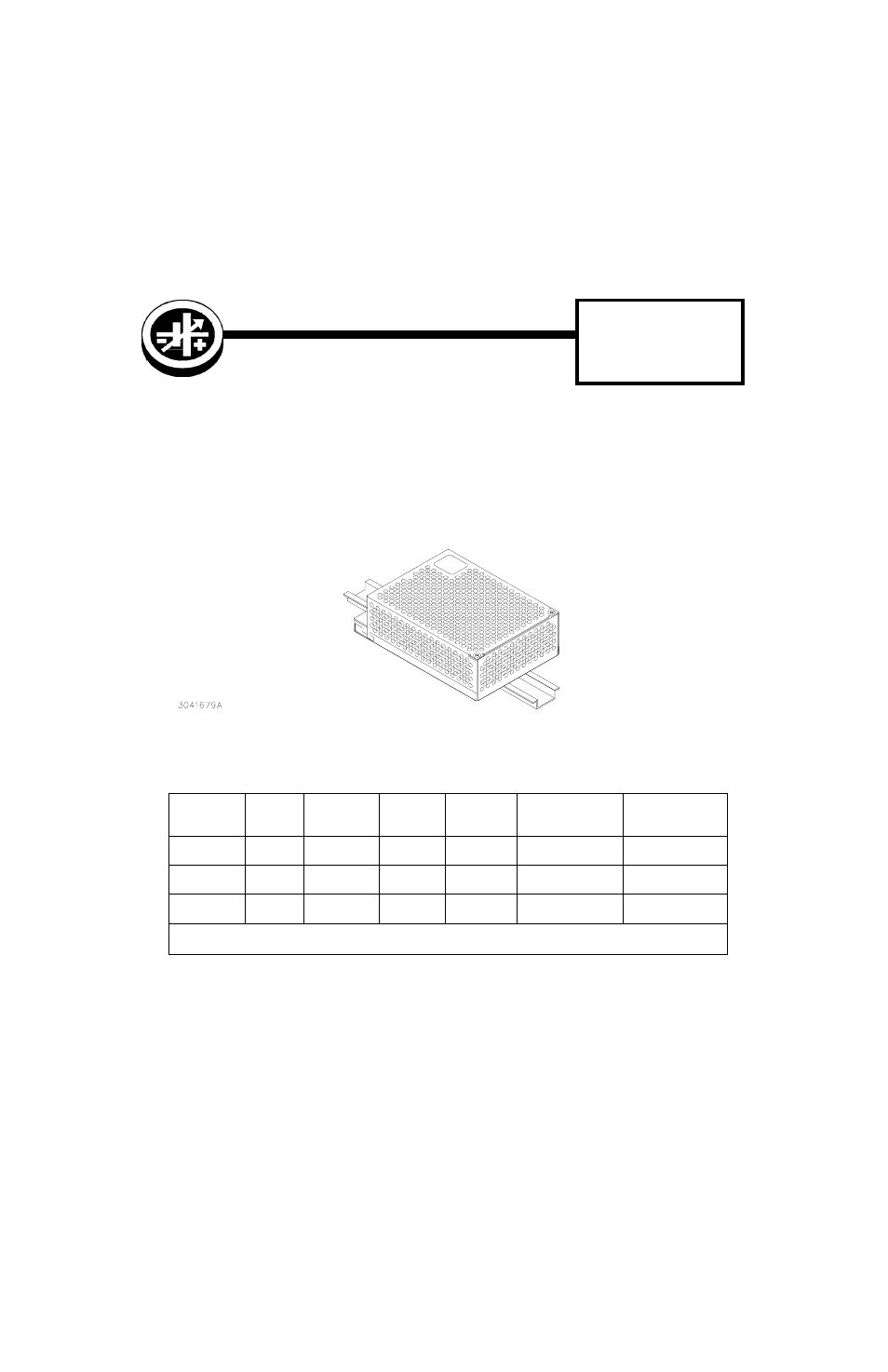

FIGURE 1. L SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART NO.
CABLE KIT
PART NO.
CLIP
(QTY 2)
PART NO.
BRACKET
(QTY 2)
PART NO.
SCREW (QTY 4)
PART NO.
WASHER (QTY4)
PART NO.
DIN MRW-150L CA 19 219-0184 108-0362 128-1938
101-0383
(8-32 X 0.187 PHPH)
103-0032
(NO. 8, SPLIT, LOCK)
DIN MRW-160L CA 20 219-0184 108-0362 128-1938
101-0383
(8-32 X 0.187 PHPH)
103-0032
(NO. 8, SPLIT, LOCK)
DIN MRW-170L CA 20 219-0239 108-0362 128-1938
101-0383
(8-32 X 0.187 PHPH)
103-0032
(NO. 8, SPLIT, LOCK)
NOTE: Clip and Bracket are supplied preassembled into left and right mounting clip assemblies. To replace a mounting clip assembly,
order both the clip and bracket and assemble per Figure 2 detail.
