DIN FMP/FCP
-3S, -10S,
DIN-RAIL MOUNTING KIT
FOR SERIES FMP/FCP 3W, 10W

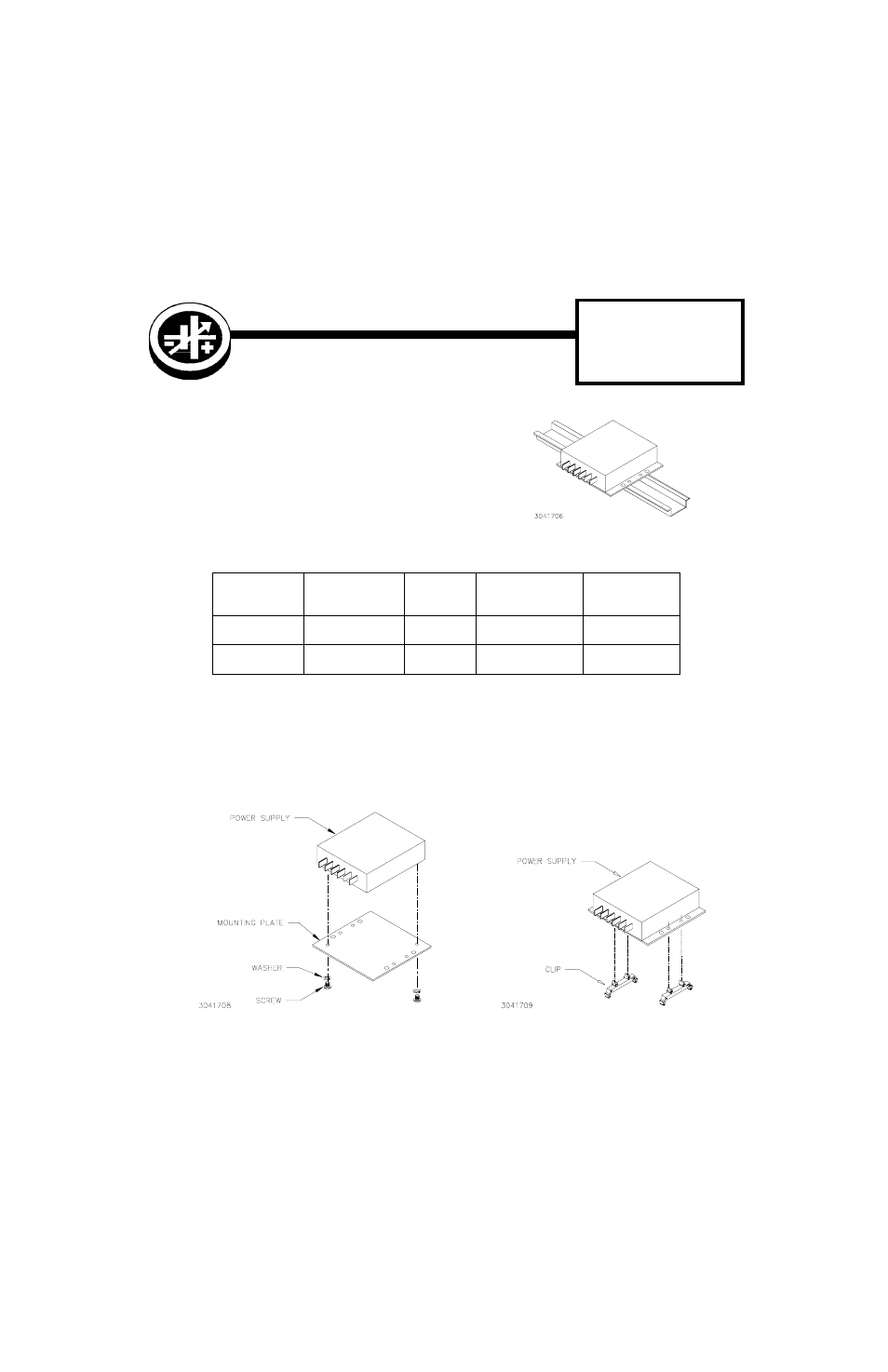

DESCRIPTION. Kepco KITs, Models DIN FMP/FCP-
3S, and -10S each contain a mounting plate with two
mounting clips and associated hardware used to install
FMP and FCP Series power supplies on a DIN rail.
The -3 suffix is for the 3 Watt Series, and -10 for the 10
Watt Series. The “S” suffix is for mounting the power
supply along the short dimension (width) as shown in
Figure 1.
INSTALLATION
1. INSTALL MOUNTING PLATE. Attach the mounting plate to the power supply using the hardware supplied
(see Figure 2).
2. INSTALL CLIPS. Snap the two clips into the mounting plate holes (see Figure 3).
3. INSTALL POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of both
mounting clips under one edge of the rail, then snap the other end of the two clips into place (see Figure
4A).
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
MOUNTING
PLATE
PART NO.
CLIP (QTY 2)
PART NO.
SCREW (QTY 2)
PART NO.
WASHER (QTY 2)
PART NO.
DIN FMP/FCP-3S
189-0696
108-0365
101-0092
(4-40 X 0.312 BHPH)
103-0014
(NO. 4, INT. TOOTH)
DIN FMP/FCP-10S
189-0697
108-0365
101-0092
(4-40 X 0.312 BHPH)
103-0014
(NO. 4, INT. TOOTH)
FIGURE 2. INSTALLING MOUNTING
PLATE ON POWER SUPPLY
FIGURE 3. INSTALLING CLIPS ON
MOUNTING PLATE
FIGURE 1. S SUFFIX ORIENTATION
