I N S T R U C T I O N M A N U A L
KIT
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
DIN FAW
-100P, -150P
DIN-RAIL MOUNTING KIT
FOR SERIES FAW 100W, 150W
DESCRIPTION. Kepco KITs, Models DIN FAW-100P, and -150P each contain a cover, a mounting bracket with left and
right preassembled mounting clips and associated hardware used to install FAW Series power supplies on a DIN rail.
The -100 suffix is for the 100 Watt Series and -150 for the 150 Watt Series. The “P” suffix is for mounting the power
supply perpendicular to the DIN rail as shown in Figure 1. Outline Dimensions are shown in Figure 5

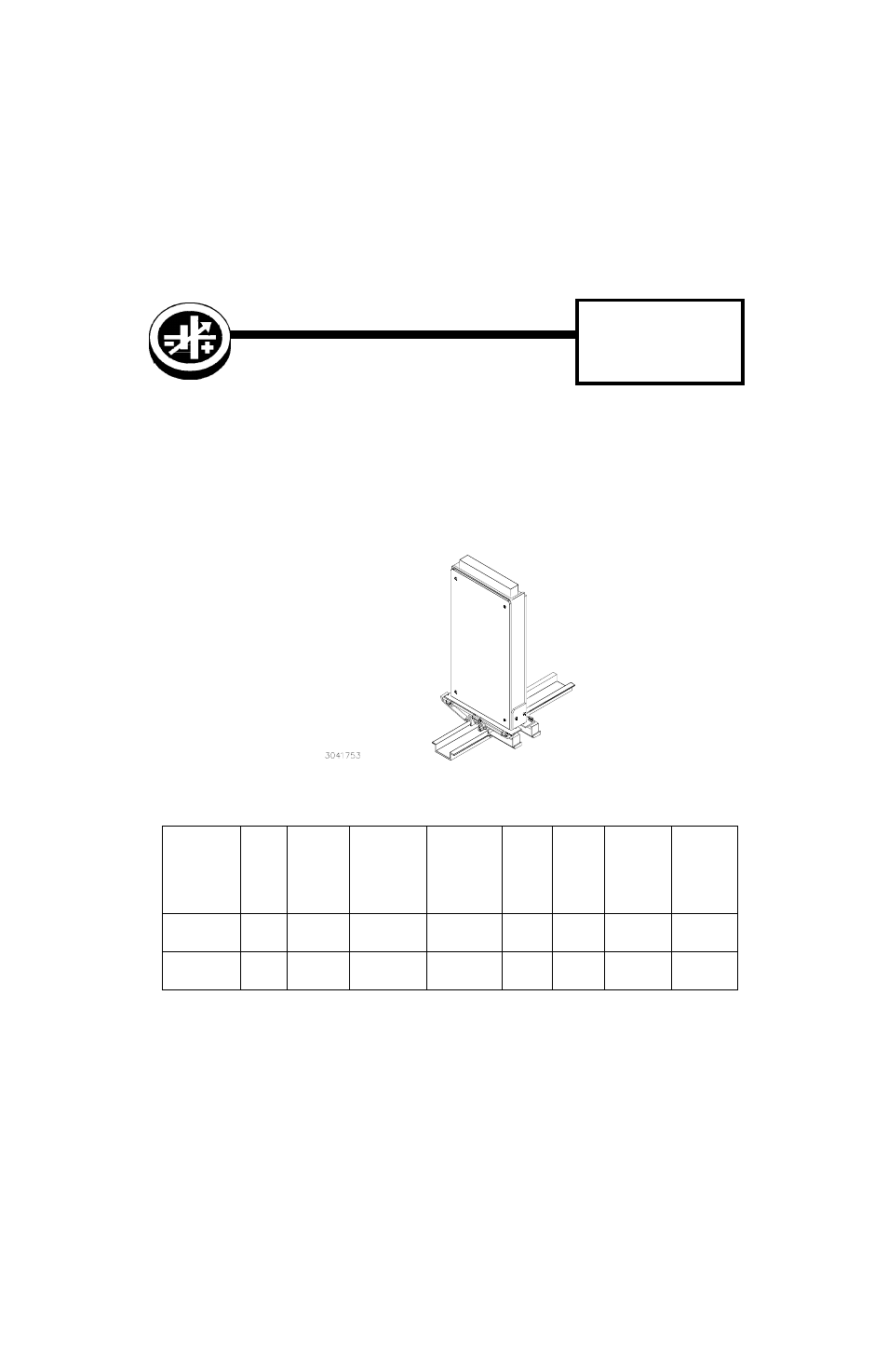

FIGURE 1. P SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART
NO.
MOUNTING
BRACKET
PART NO.
SCREW
(QTY 6)
(Power Supply
To Mounting
Bracket)
PART NO.
WASHER
(QTY 6)
(Power Supply
To Mounting
Bracket)
PART NO.
CLIP
(QTY 2)
PART
NO.
CLIP
PLATE
(QTY 2)
PART
NO.
SCREW
Thread form
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
WASHER
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
DIN FAW-100P
CA 27
128-1952
101-0092
(4-40 X 5/16
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
108-
0362
128-1938
101-0443
(4-40 X 1/4
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
DIN FAW-150P
CA 28
128-1953
101-0092
(4-40 X 5/16
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
108-
0362
128-1938
101-0443
(4-40 X 1/4
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
