KEPCO DIN KIT FAW-50 (P) - Manual

©1998, KEPCO, INC 1
Data subject to change without notice 228-1322
I N S T R U C T I O N M A N U A L
KIT
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
DIN FAW
-50P
DIN-RAIL MOUNTING KIT
FOR SERIES FAW 50W
DESCRIPTION. Kepco KIT, Model DIN FAW-50P contains a cover, a mounting bracket with left and right preassem-
bled mounting clips and associated hardware used to install FAW Series power supplies on a DIN rail. The -50 suffix is
for the 50 Watt Series. The “P” suffix is for mounting the power supply perpendicular to the DIN rail as shown in Figure
1. Outline Dimensions are shown in Figure 5

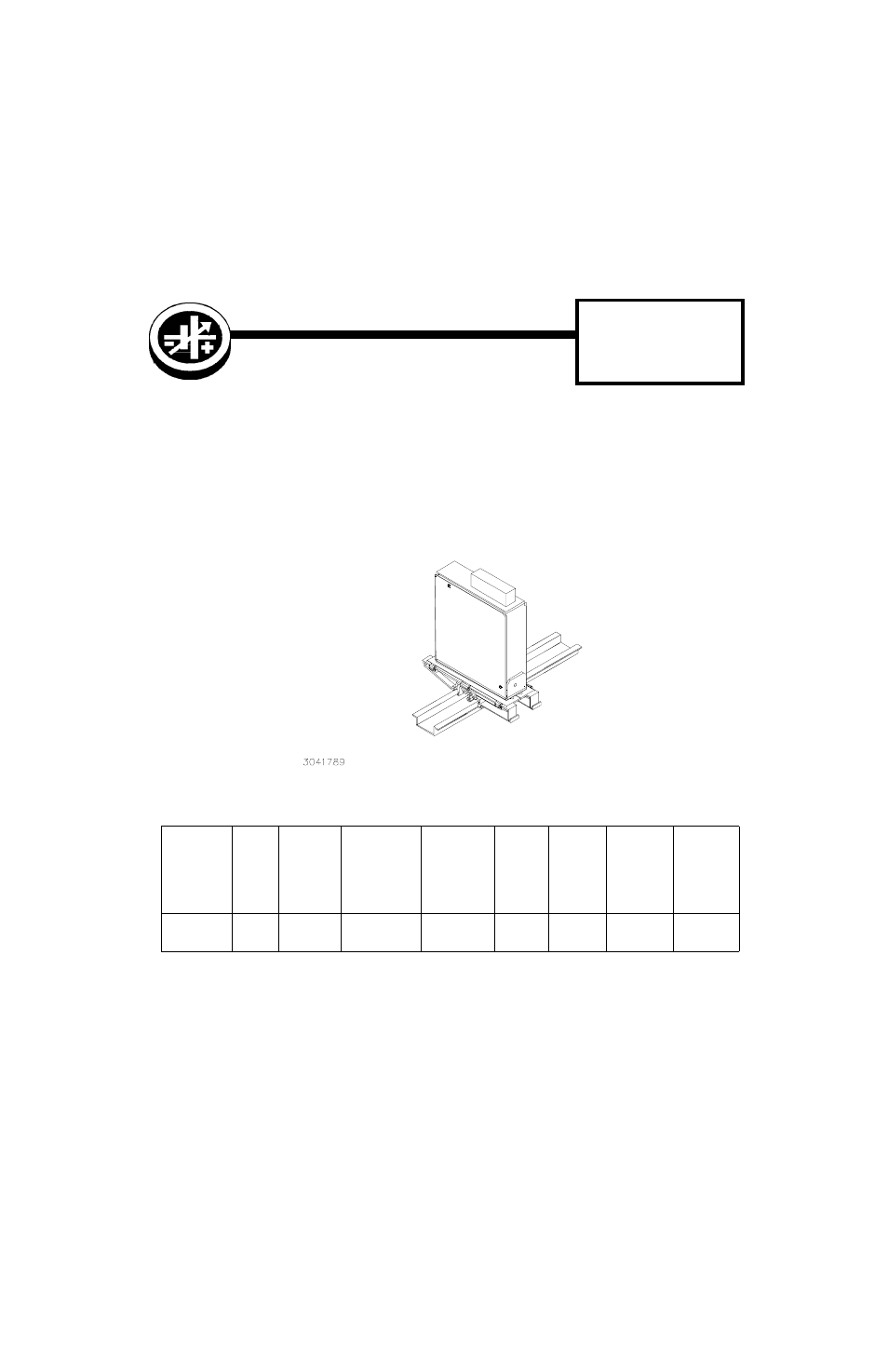

FIGURE 1. P SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART
NO.
MOUNTING
BRACKET
PART NO.
SCREW
(QTY 3)
(Power Supply
To Mounting
Bracket)
PART NO.
WASHER
(QTY 3)
(Power Sup-
ply To Mount-
ing Bracket)
PART NO.
CLIP
(QTY 2)
PART
NO.
CLIP
PLATE
(QTY 2)
PART NO.
SCREW
Thread-form
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
WASHER
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
DIN FAW-50P CA 26 128-1951
101-0092
(4-40 X 5/16
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
108-0362 128-1938
101-0443
(4-40 X 1/4
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
