I N S T R U C T I O N M A N U A L
KIT
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
DIN FAW
-15L, -15S, -25L,
-25S, -50L
DIN-RAIL MOUNTING KIT
FOR SERIES FAW 15W, 25W, 50W
DESCRIPTION. Kepco KITs, Models DIN FAW-15L, -15S, 25L, -25S, -25L, and -50L each contain a cover, a mounting
plate with two clips and associated hardware used to install FAW Series power supplies on a DIN rail. The -15 suffix is
for the 15 Watt Series, -25 for the 25 Watt Series and -50 for the 50 Watt Series. The “S” suffix is for mounting the
power supply along the short dimension (width) as shown in Figure 1, the “L” suffix is for mounting along the long
dimension (length) as shown in Figure 2.

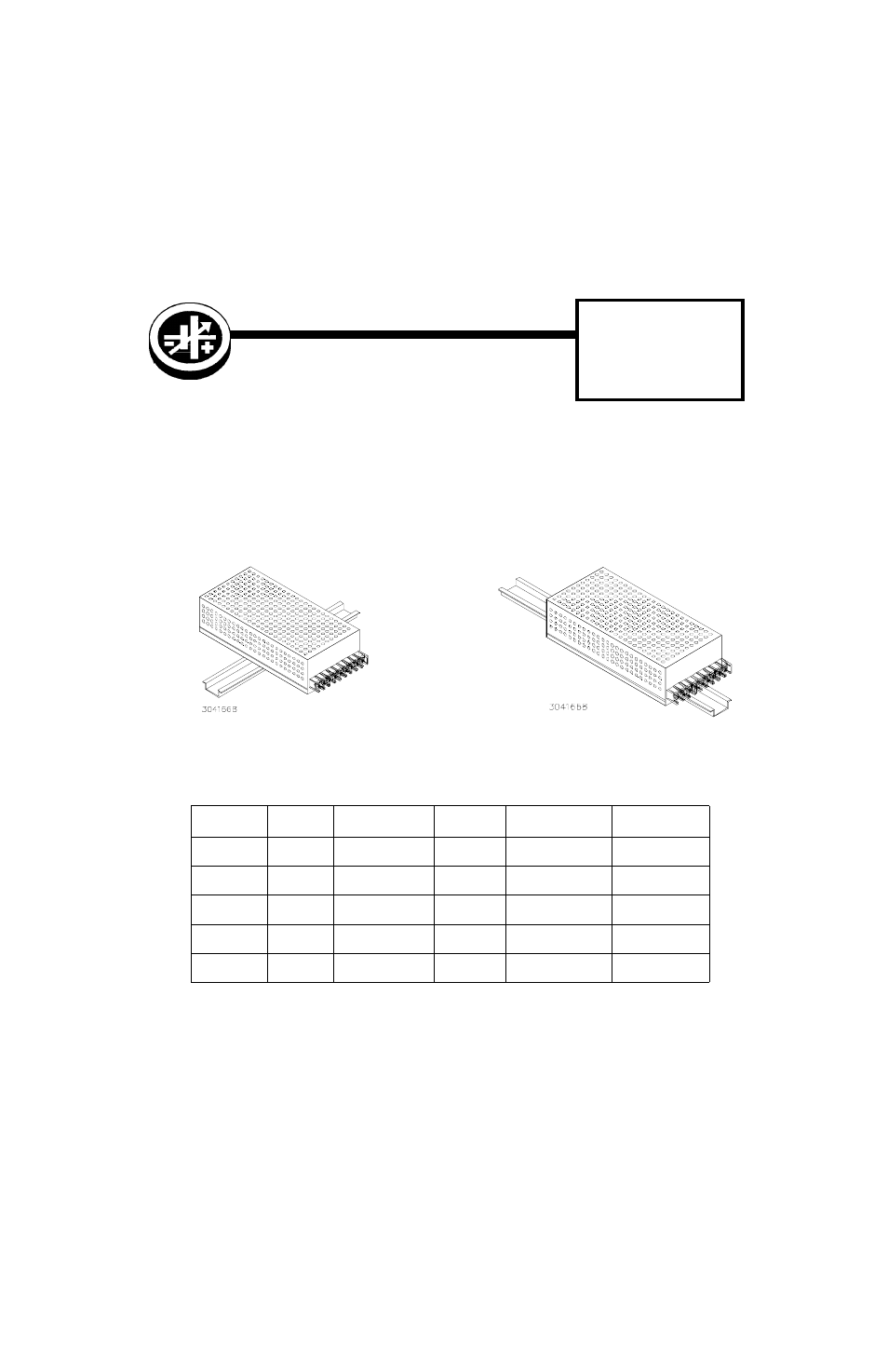

FIGURE 1. S SUFFIX ORIENTATION
FIGURE 2. L SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART NO.
MOUNTING PLATE
PART NO.
CLIP (QTY 2)
PART NO.
SCREW (QTY 2)
PART NO.
WASHER (QTY 2)
PART NO.
DIN FAW-15L
CA 24
189-0700
108-0365
101-0092
(4-40 X 0.312 BHPH)
103-0014
(NO. 4, INT. TOOTH)
DIN FAW-25L
CA 25
189-0690
108-0365
101-0092
(4-40 X 0.312 BHPH)
103-0014
(NO. 4, INT. TOOTH)
DIN FAW-50L
CA 26
189-0695
108-0365
101-0092
(4-40 X 0.312 BHPH)
103-0014
(NO. 4, INT. TOOTH)
DIN FAW-15S
CA 24
189-0701
108-0365
101-0092
(4-40 X 0.312 BHPH)
103-0014
(NO. 4, INT. TOOTH)
DIN FAW-25S
CA 25
189-0702
108-0365
101-0092
(4-40 X 0.312 BHPH)
103-0014
(NO. 4, INT. TOOTH)
