KEPCO DIN KIT FAW-25 (P) - Manual

©1998, KEPCO, INC 1
Data subject to change without notice 228-1321
I N S T R U C T I O N M A N U A L
KIT
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
DIN FAW
-15P, -25P
DIN-RAIL MOUNTING KIT
FOR SERIES FAW 15W, 25W
DESCRIPTION. Kepco KITs, Models DIN FAW-15P and -25P each contain a cover, a mounting bracket with left and
right preassembled mounting clips and associated hardware used to install FAW Series power supplies on a DIN rail.
The -15 suffix is for the 15 Watt Series and -25 for the 25 Watt Series. The “P” suffix is for mounting the power supply
perpendicular to the DIN rail as shown in Figure 1. Outline Dimensions are shown in Figure 5

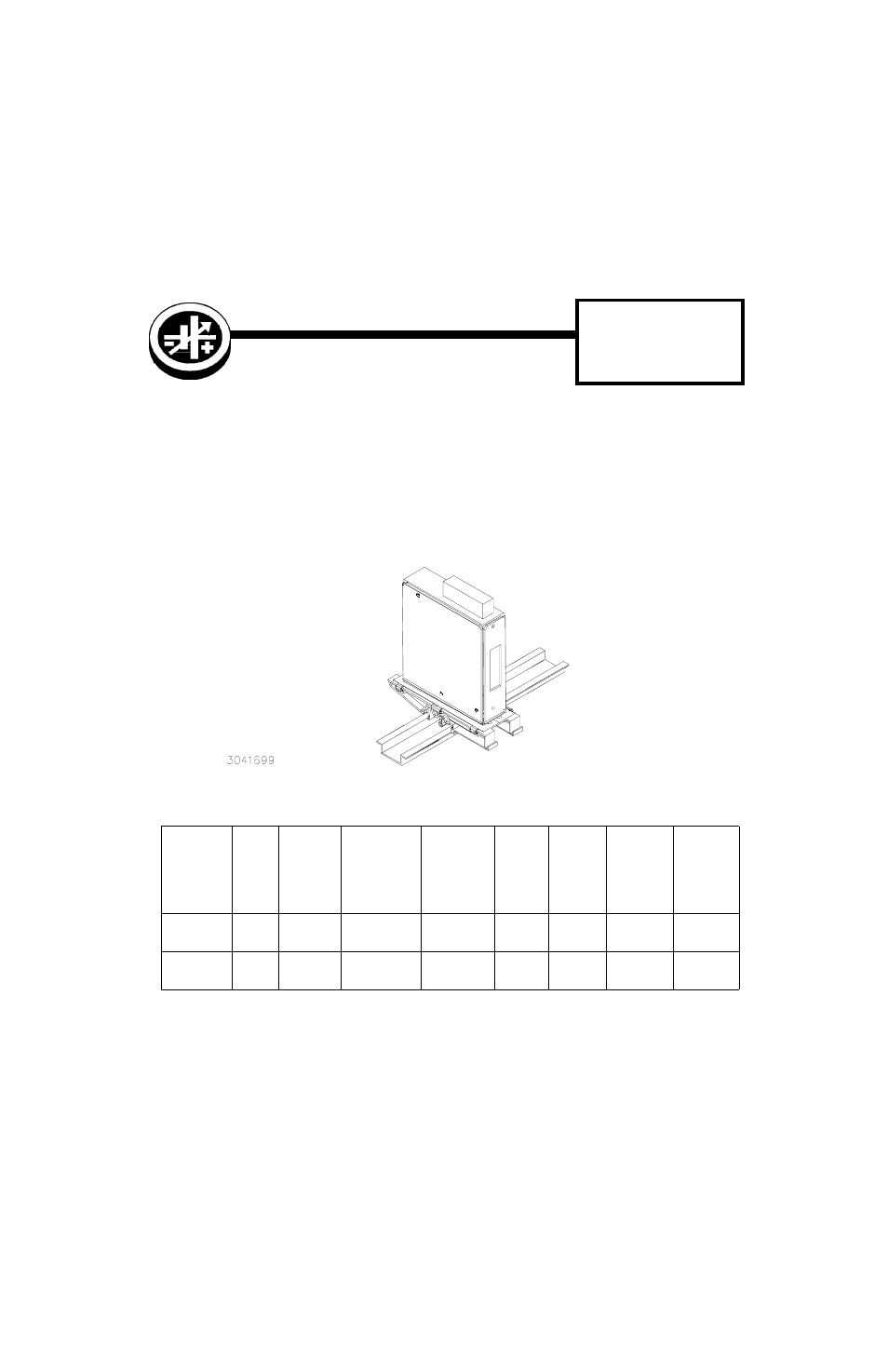

FIGURE 1. P SUFFIX ORIENTATION
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART
NO.
MOUNTING
BRACKET
PART NO.
SCREW
(QTY 4)
(Power Supply
To Mounting
Bracket)
PART NO.
WASHER
(QTY 4)
(Power Sup-
ply To Mount-
ing Bracket)
PART NO.
CLIP
(QTY 2)
PART
NO.
CLIP
PLATE
(QTY 2)
PART NO.
SCREW
Thread-form
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
WASHER
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
DIN FAW-15P CA 24 128-1949
101-0092
(4-40 X 5/16
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
108-0362 128-1938
101-0443
(4-40 X 1/4
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
DIN FAW-25P CA 25 128-1950
101-0092
(4-40 X 5/16
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
108-0362 128-1938
101-0443
(4-40 X 1/4
BHPH)
103-0014
(NO. 4, INT.
TOOTH)
