KEPCO DIN KIT ERX-240 (L) User Manual
Kepco

©1998, KEPCO, INC
1
Data subject to change without notice
228-1325
I N S T R U C T I O N M A N U A L
KIT
KEPCO
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
An ISO 9001 Company.
DIN ERX
-240L
DIN-RAIL MOUNTING KIT
FOR SERIES ERX 240W
.

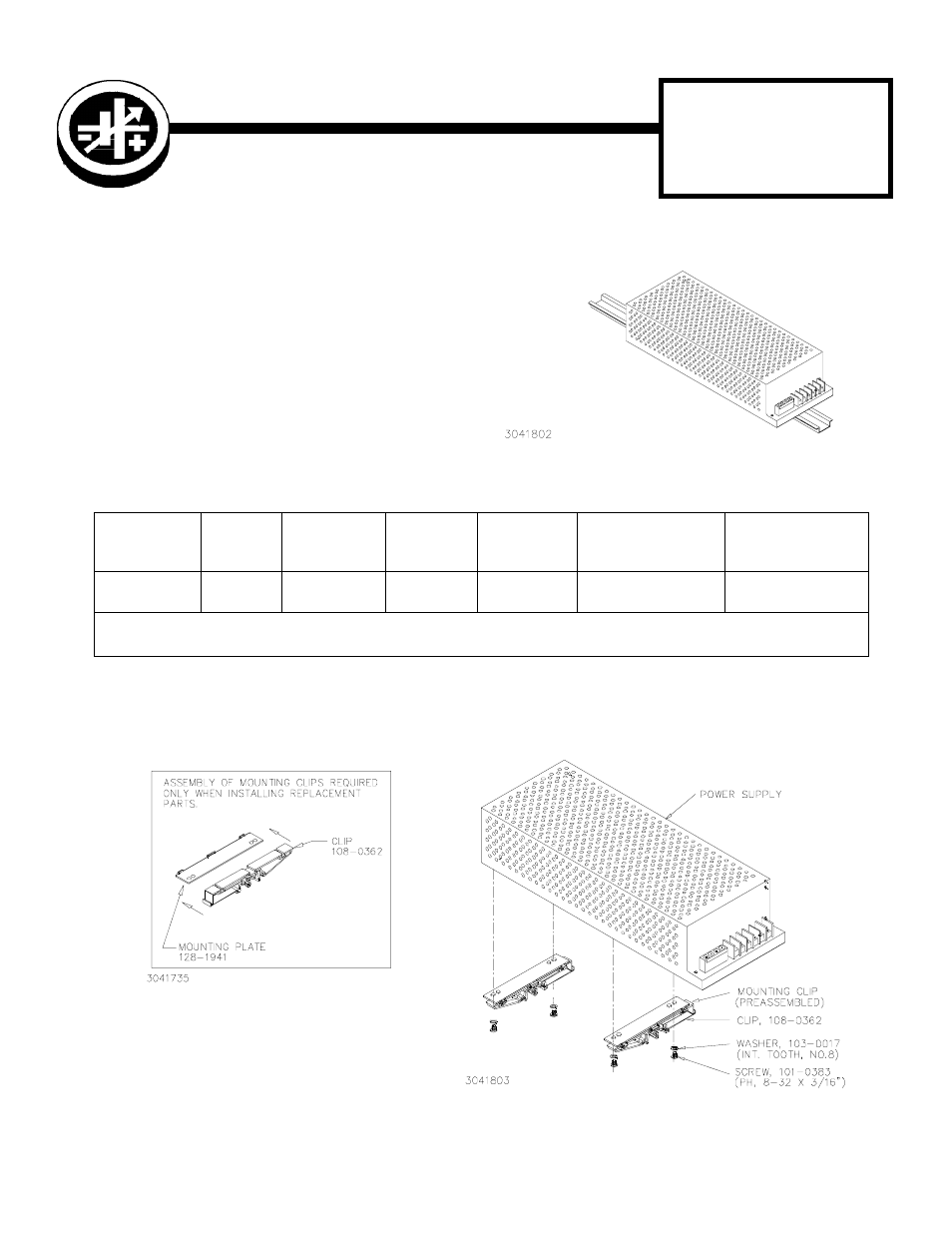

FIGURE 1. L SUFFIX ORIENTATION
INSTALLATION
1. INSTALL COVER. Attach the cover to the power supply per Instruction Manual supplied with the cover.
2. INSTALL CLIPS. Attach left and right clips to power supply using hardware supplied (see Figure 2).
FIGURE 2. INSTALLING CLIPS ON POWER SUPPLY
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART NO.
CABLE KIT
PART NO.
CLIP
(QTY 2)
PART NO.
BRACKET
(QTY 2)
PART NO.
SCREW (QTY 4)
PART NO.
WASHER (QTY4)
PART NO.
DIN ERX-240L
CA 18
219-0169
108-0362
128-1941
101-0383
(8-32 X 0.187 PHPH)
103-0032
(NO. 8, SPLIT, LOCK)
NOTE: Clip and Bracket are supplied preassembled into left and right mounting clip assemblies. To replace a mounting clip assembly,
order both the clip and bracket and assemble per Figure 2 detail.
DESCRIPTION. Kepco KIT, Model DIN ERX-
240L contains a cover, cable kit, left and right
mounting clips, and associated hardware (see
Table 1) used to install ERX Series 240W power
supplies on a DIN rail. The “L” suffix is for
mounting along the long dimension (length) as
shown in Figure 1. Outline dimensions are
shown in Figure 4.
