DIN ERX
-60L
DIN-RAIL MOUNTING KIT
FOR SERIES ERX 60W
.
FIGURE 1. L SUFFIX ORIENTATION
INSTALLATION
1. INSTALL COVER. Attach the cover to the power supply per Instruction Manual supplied with the cover.
2. INSTALL CLIPS. Attach left and right clips to power supply using hardware supplied (see Figure 2).

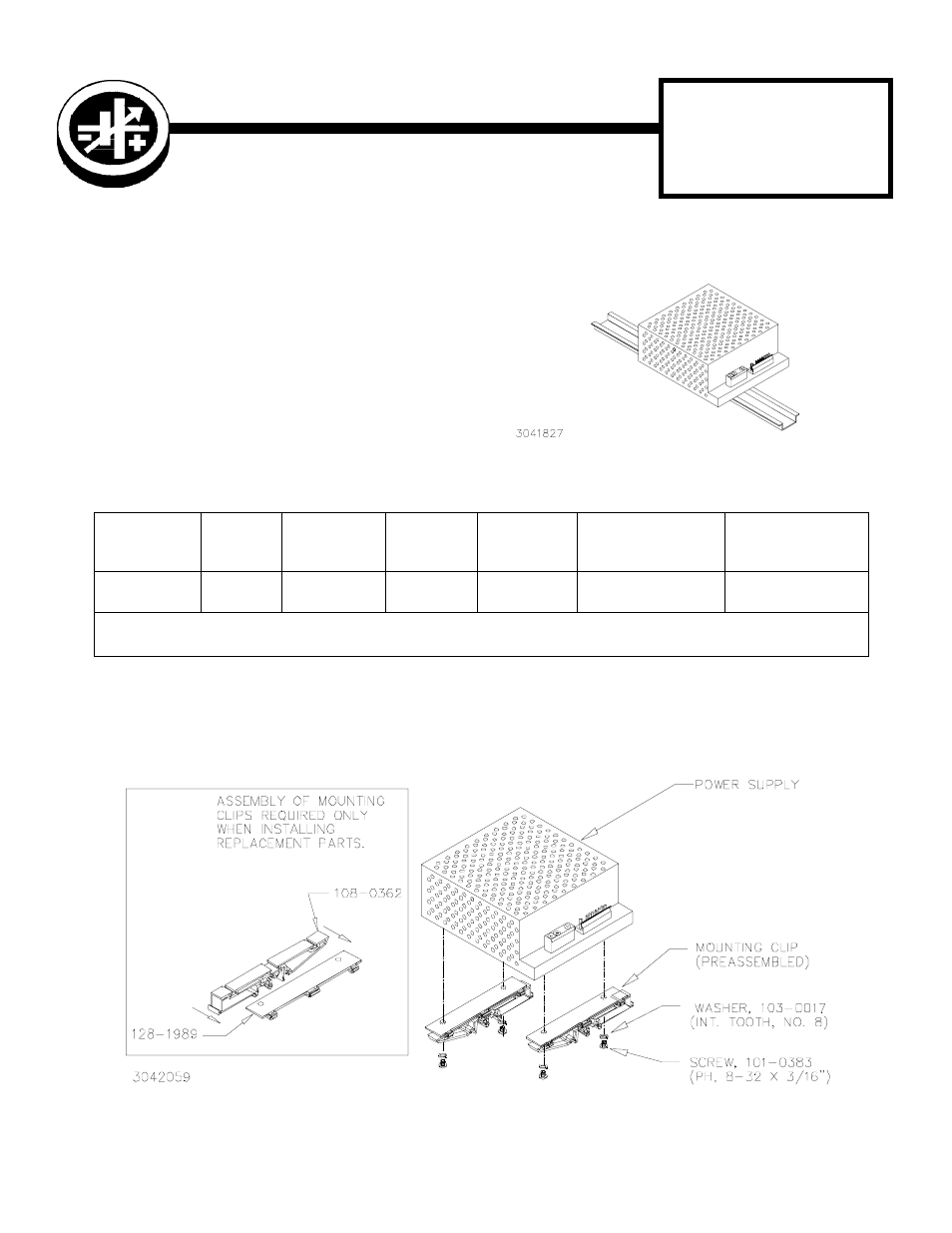

FIGURE 2. INSTALLING CLIPS ON POWER SUPPLY
TABLE 1. COMPONENTS SUPPLIED
KIT
MODEL NO.
COVER
PART NO.
CABLE KIT
PART NO.
CLIP
(QTY 2)
PART NO.
BRACKET
(QTY 2)
PART NO.
SCREW (QTY 4)
PART NO.
WASHER (QTY4)
PART NO.
DIN ERX-60L CA 16
518-0006
518-0008
108-0362 128-1989
101-0383
(8-32 X 0.187 PHPH)
103-0017
(NO. 8, INT. TOOTH)
NOTE: Clip and Bracket are supplied preassembled into left and right mounting clip assemblies. To replace a mounting clip assembly,
order both the clip and bracket and assemble per Figure 2 detail.
DESCRIPTION. Kepco KIT, Model DIN ERX-60L
contains a cover, cable kit, left and right mount-
ing clips, and associated hardware (see Table 1)
used to install ERX Series 60W power supplies
on a DIN rail. The “L” suffix is for mounting
along the long dimension (length) as shown in
Figure 1. Outline dimensions are shown in Fig-
ure 4.
