DIN RAX-300L,
DIN RCW-350L
DIN-RAIL MOUNTING KIT
FOR SERIES RAX 300W AND RCW 350W
DESCRIPTION. Kepco Kits, Model DIN RAX-300L and RCW-350L, each contain two preassembled mounting clips
and associated hardware used to install RAX 300 Watt and RCW 350 Watt Series power supplies on a DIN rail. The “L”
suffix is for mounting along the long dimension (length) as shown in Figure 1. Outline dimensions are shown in Figures
4 and 5.

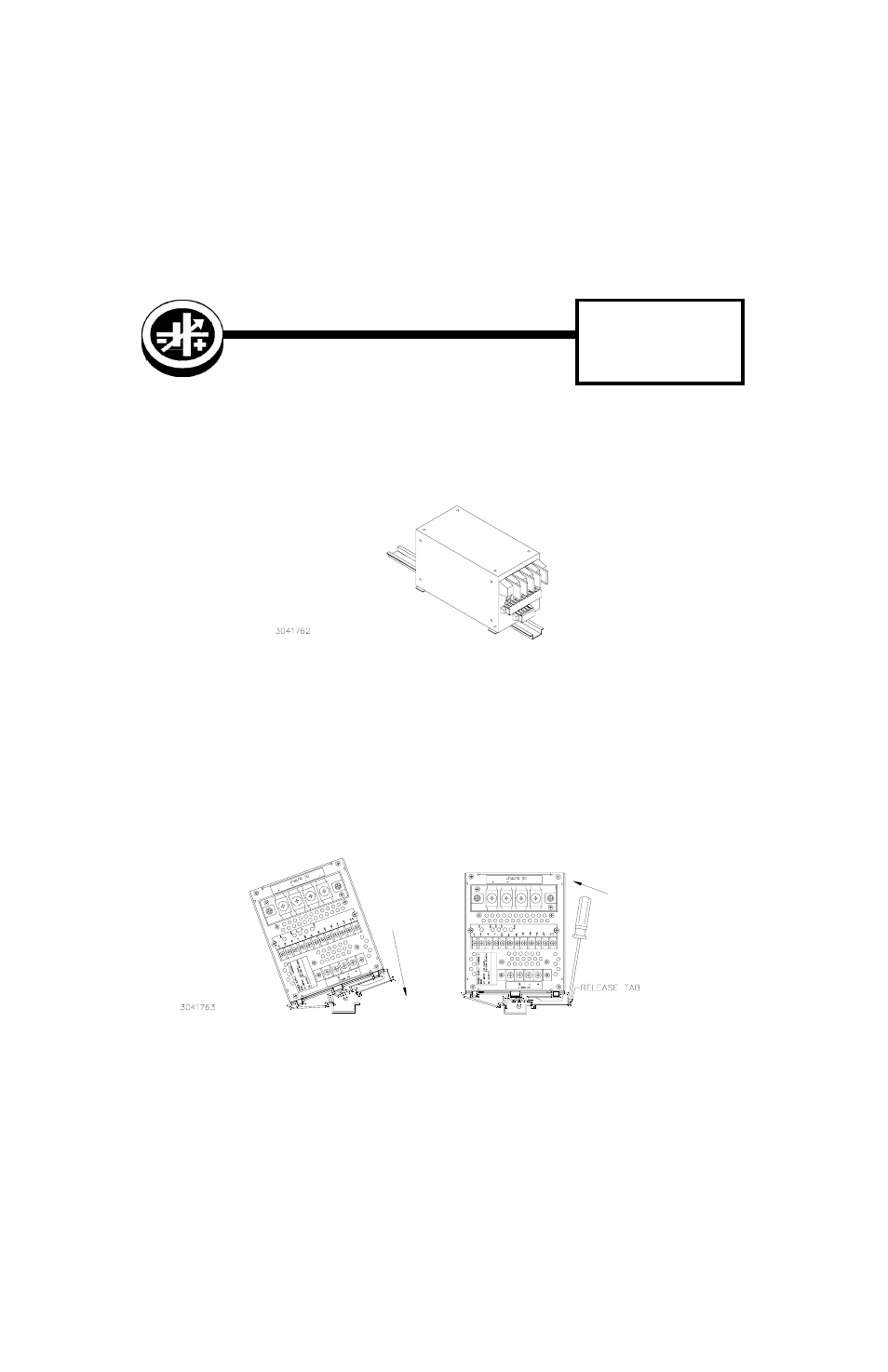

FIGURE 1. L SUFFIX ORIENTATION
INSTALLING KIT. Attach the preassembled mounting clips to the power supply using the hardware supplied (see Fig-
ure 3). The clips may be mounted with the release lever on either side to facilitate removal.
INSTALLING POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of both clips
under one edge of the rail, then snap the other end of the two clips into place (see Figure 2A).
REMOVING POWER SUPPLY FROM DIN RAIL. While grasping the power supply with one hand, use a screwdriver to
apply leverage towards the left as shown in Figure 2B to disengage each clip from the rail. Where mounting clips are
close together, it may be necessary to apply leverage with two screwdrivers simultaneously.
FIGURE 2. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL
A -
INSTALLATION
B -
REMOVAL
Document Outline
- FIGURE 5. RCW 350W POWER SUPPLY WITH KIT INSTALLED, Outline Dimensions
- FIGURE 1. L Suffix orientation
- FIGURE 2. INSTALLATION and removal of power supply from din rail
- FIGURE 3. installation of kit on RAX 300W or RCW 350W power supply
- FIGURE 4. RAX 300W POWER SUPPLY WITH KIT INSTALLED, Outline Dimensions
