3. INSTALL CABLE KIT. Attach wires to the power supply per Instruction Sheet supplied with cable kit.
4. INSTALL POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of both
clips under one edge of the rail, then snap the other end of the two clips into place (see Figure 3A).
REMOVING POWER SUPPLY FROM DIN RAIL. With power off, disconnect wires from power supply. While
grasping the power supply with one hand, insert a screwdriver in the area shown in Figure 3B and apply leverage
towards the left as shown in Figure 3B to disengage each clip from the rail. Where mounting clips are close
together, it may be necessary to apply leverage with two screwdrivers simultaneously.

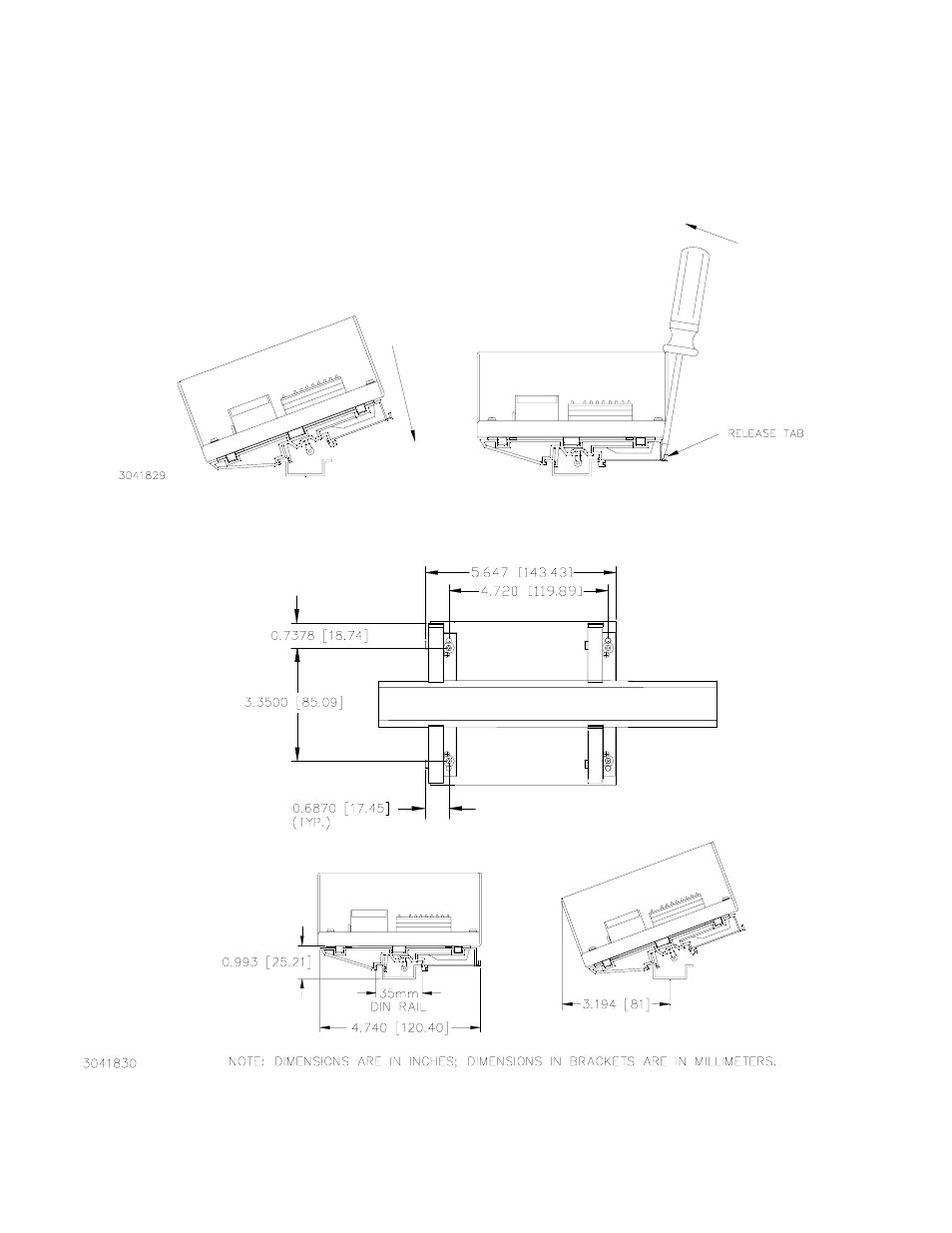

FIGURE 3. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL
FIGURE 4. POWER SUPPLY WITH KIT INSTALLED, OUTLINE DIMENSIONS
B
REMOVAL INSTALLATION
A
