CS 04
CHASSIS SLIDES MODEL CS 04
1. DESCRIPTION
Chassis Slides Model CS 04 contains the components required to install a pair of chassis slides on Kepco BOP High
Power 1KW Power Supplies.
2. INSTALLATION OF CHASSIS SLIDES
2.1 MATERIAL REQUIRED (SEE TABLE 1.)
2.2 PROCEDURE (SEE FIGURES 1, 2 AND 3.)
1. Attach two chassis sections of slide (108-0429) to each side of rack adapter using eight screws (101-0311) and
eight washers (103-0019), four on each side (see Figure 1).

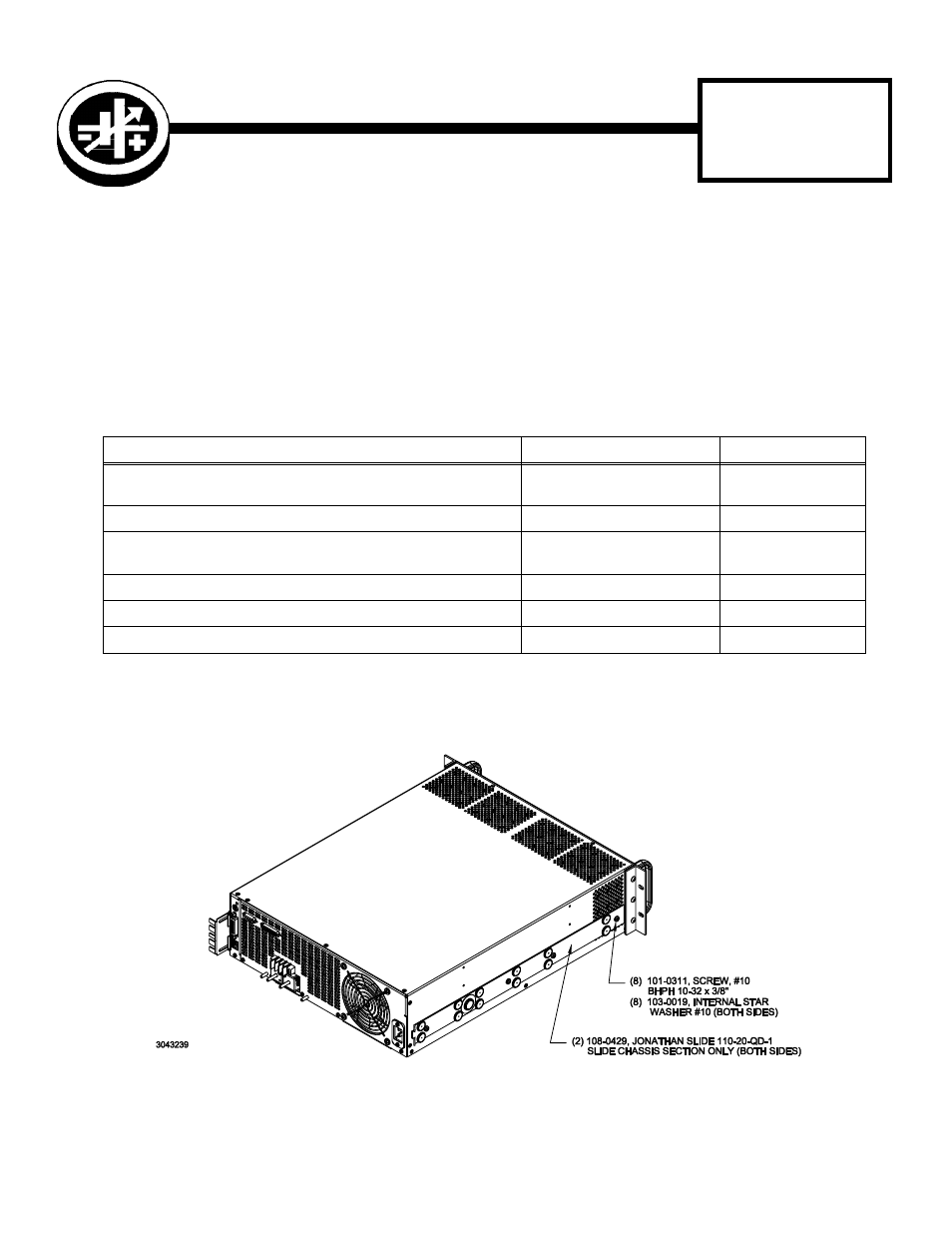

FIGURE 1. INSTALLING CHASSIS SLIDES ON RACK ADAPTER
TABLE 1. MATERIAL REQUIRED
MATERIAL
LOCATION
QUANTITY
One pair of slides (includes cabinet and chassis sections), Kepco P/N
108-0429 (Jonathan P/N 110-20-QD-1)
Provided in this Kit
2
End Bracket, Kepco P/N 128-1699 (Jonathan P/N 204161-Z )
Provided in this Kit
4
Screw 10-32 x 3/8 in. long, BHPH, cadmium/yellow plated Kepco P/N
101-0311
Provided in this Kit
24
Nut, 10-32 Kepco P/N 102-0008
Provided in this Kit
16
Washer, flat #10 Kepco P/N 103-0031
Provided in this Kit
16
Washer, Internal lock, #10, Kepco P/N 103-0019
Provided in this Kit
24
