KEPCO BOP 20-10DC Modification Sheet - Manual (Page 2)

2
BOP 20-10MC/031212
In Current Mode the dynamic specifications are: 3-dB bandwidth of 4.4kHz and rise/ fall time
of 80 µs (lower bandwidth and higher rise/fall time than the standard BOP M and D models).

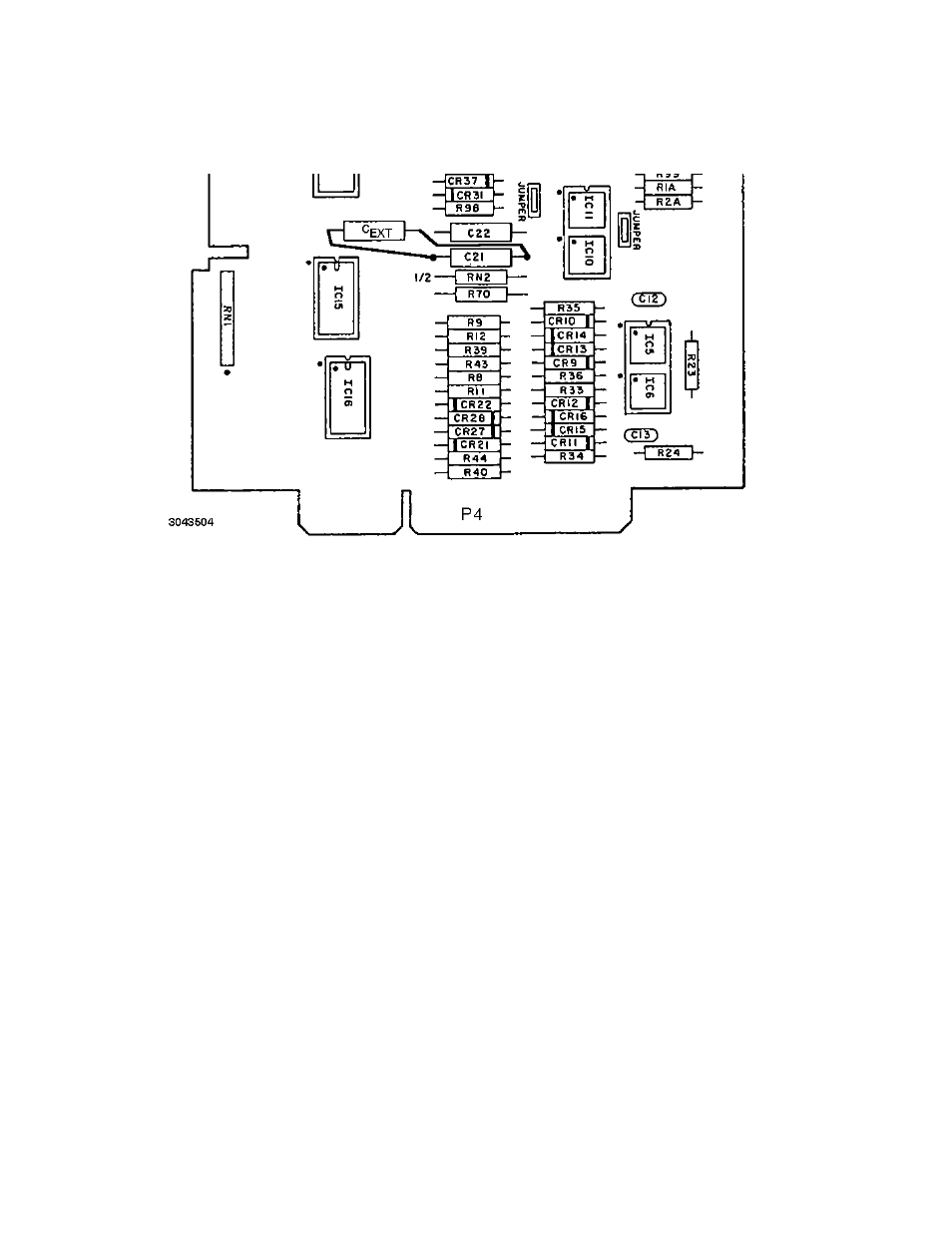

FIGURE 1. ASSEMBLY A1, EXTERNAL BANDWIDTH CORRECTION CAPACITOR LOCATION
