display before displaying the main measurement screen. Please note that the instrument will go to
the last wavelength and measurement mode used.
2.3 DISPLAY
This spectrophotometer has an LCD display:

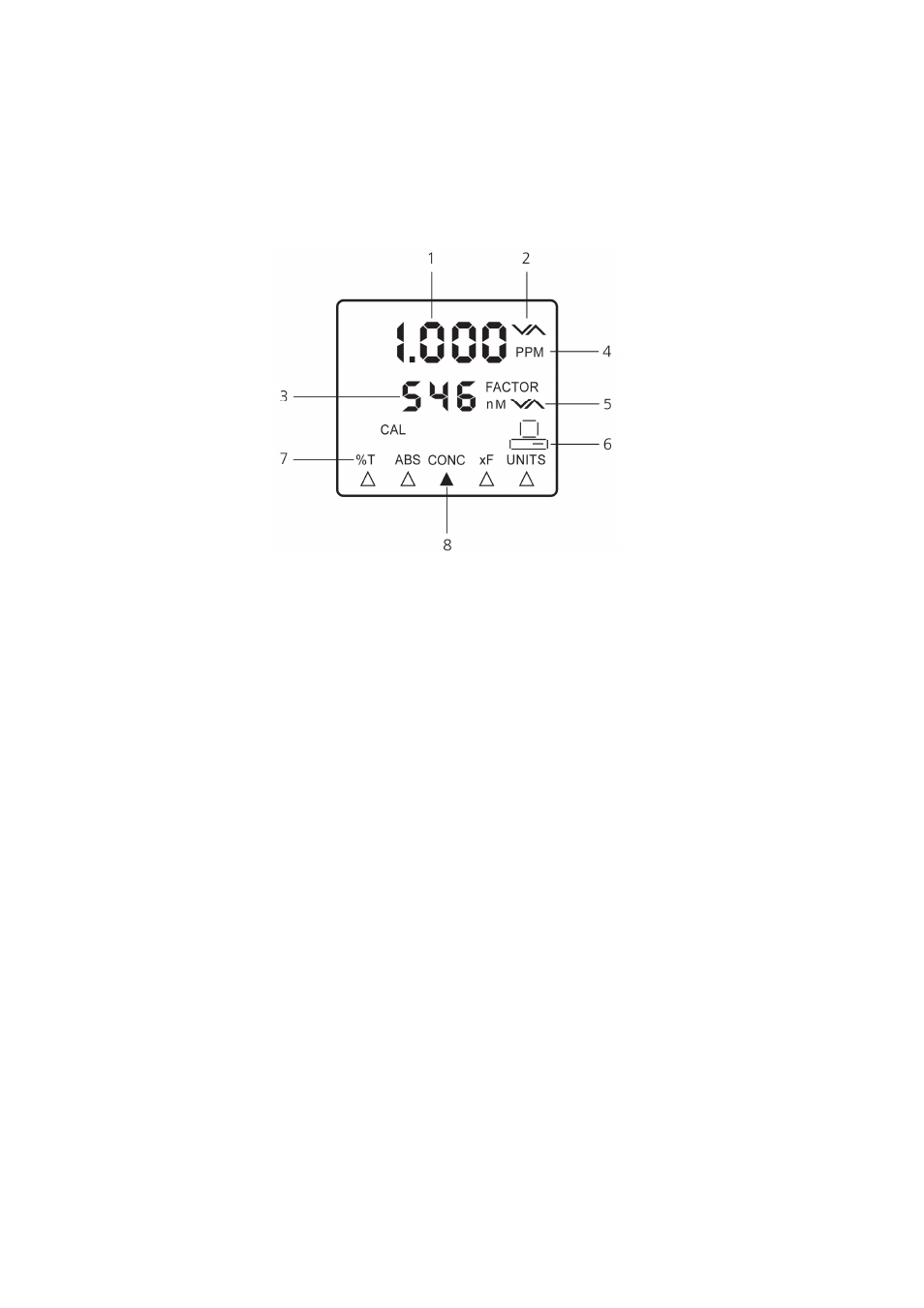

Fig. 2.3.1 – Display
1. Primary display area – Transmission, Absorbance, Concentration
2. Primary display adjust annunciator
3. Secondary display area – Wavelength, Factor
4. Primary display units
5. Secondary display annunciator
6. Operation with PC
7. Menu options - %T, ABS, CONC, FACTOR, UNITS
8. Menu pointers (for above)
2.4 CONTROLS
The keypad used for this model enables an easy and effective way of navigating the
different measurement modes. The arrow keys can be used to move between modes and
to adjust wavelengths, factors, concentration and units. The main menu screen and
surrounding keypad is displayed below:
