12

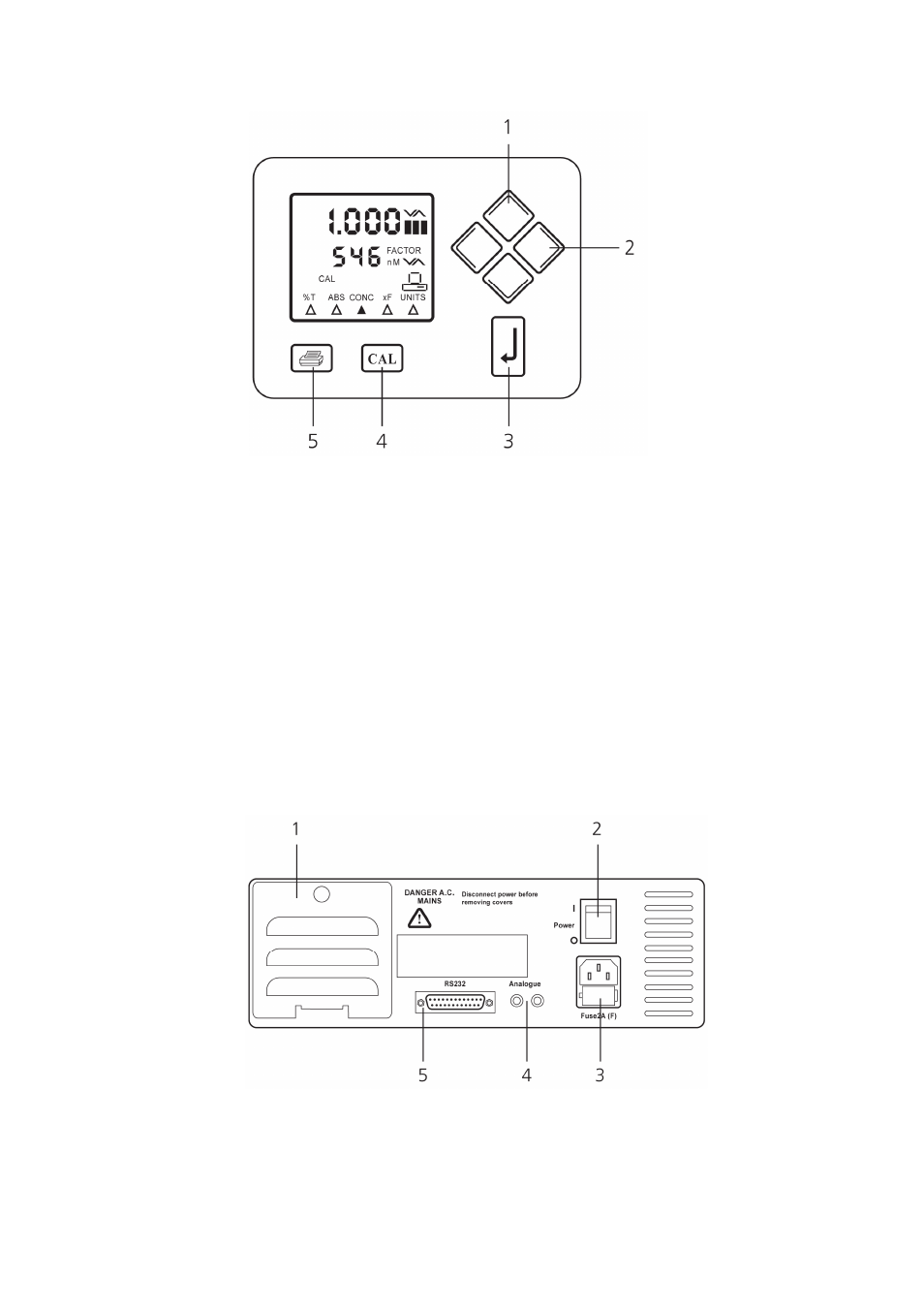

Fig. 2.4.1 – Controls
1. Arrow Keys: Used to adjust values on the selected display
2. Arrow Keys: Used to move the cursor horizontally between menu options
3. Return Key: Used to select the display menu option
4. CAL Key: Initiates a calibration routine
5. Print Key. Provides a printout of the current reading with an incremental sample number.
When pressed for the first time after a calibration the print out will give calibration
information. The incremental sample number will be reset after a calibration.
2.5 REAR PANEL
The image below shows the rear panel on the instrument:
Fig. 2.5.1 – Rear Panel
